Jabsco Pump # 18330 Parts Order page

( Click Here for the Jabsco Pump # 18330 Product Page )

Parts Table is below the image.
Scroll down for Item Listings and Prices.

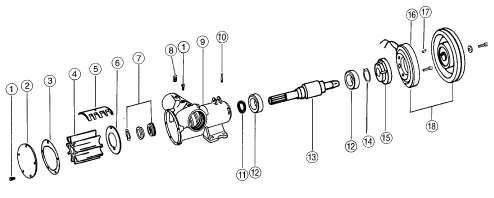

Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

Click to Make Image Bigger

View Shopping Cart

Proceed to Checkout

Key	Part #	Description	Price	Stock	Required
Parts List for Jabsco Pump model # 18330
1	# 91005-0040	Screw (End Cover and Cam)	$3.69	257 in Stock	6 are Req'd

2	# 12062-0000	End Cover	$100.32	57 in Stock	1 is Req'd

3	# 816-0000	* Gasket	$9.56	64 in Stock	1 is Req'd

4	# 6760-0003-P	* Impeller, Nitrile	$222.93	2 in Stock	1 is Req'd

	# 17936-0001-P	* Impeller, Neoprene	$117.55	132 in Stock	1 is Req'd

5	# 6988-0000	Cam	$69.10	56 in Stock	1 is Req'd

6	# 2574-0000	Wearplate	$28.99	54 in Stock	1 is Req'd

7	# 6408-0000	* Seal Assembly(Shaft)	$80.25	25 in Stock	1 is Req'd

8	# 92650-0070	Pipe Plug	$7.20	0 in Stock	2 are Req'd

10	# 93100-0160	Roll Pin	$13.38	3 in Stock	2 are Req'd

11	# 92701-0180	Bearing Seal	$17.83	21 in Stock	1 is Req'd

12	# 92600-0260	Ball Bearing	$75.37	6 in Stock	2 are Req'd

13	# 10677-0010	Shaft	$347.13	1 in Stock	1 is Req'd

14	# 18725-0000	Retaining Ring	$10.03	14 in Stock	1 is Req'd

15	# 11876-0000	Clutch Adaptor	$171.97	1 in Stock	1 is Req'd

16	# 98022-0500	Field Coil - 12 Vdc	$215.13	3 in Stock	1 is Req'd

	# 98022-2155	Field Coil - 24 Vdc	$236.05	0 in Stock	1 is Req'd

17	# 91401-0100	Drive Key	$21.17	3 in Stock	1 is Req'd

18	# 92300-0030	Clutch Assembly - 12 Vdc - 2-A Grooves	$423.56	5 in Stock	1 is Req'd

	# 18753-0493	Clutch Assembly - 12 Vdc - 1-B Groove	$436.94	4 in Stock	1 is Req'd

	# 92300-0061	Clutch Assembly - 24 Vdc - 2-A Grooves	$424.68	7 in Stock	1 is Req'd

	# 18753-0494	Clutch Assembly - 24 Vdc - 1-B Groove	$436.94	2 in Stock	1 is Req'd
