Jabsco Pump model 17970-0100 Parts

PARTS LIST for Jabsco Pump model # 17970-0100 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 17970-0100 Product Page )

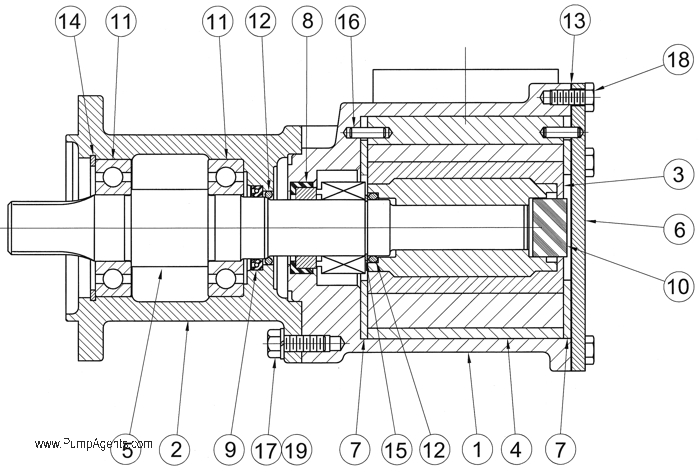

Blowup of 17970-0100

Not Shown
(Not Shown on image above)

Part # 17370-0001-P

Impeller, Neoprene

$ 144.26 / each

Not Shown
(Not Shown on image above)

Part # 17365-1000

Gasket

$ 22.07 / each

Not Shown
(Not Shown on image above)

Part # 17372-1000

Wearplate

$ 102.67 / each

Not Shown
(Not Shown on image above)

Part # 17374-1000

Cam Liner

$ 275.98 / each

Not Shown
(Not Shown on image above)

Part # 17378-1000

End Cover

$ 325.80 / each

Not Shown
(Not Shown on image above)

Part # 91005-0040

Screw

$ 2.61 / each

Not Shown
(Not Shown on image above)

Part # 18721-0000

Retaining Ring

$ 17.67 / each

Not Shown
(Not Shown on image above)

Part # 18725-0000

Retaining Ring

$ 8.83 / each

Not Shown
(Not Shown on image above)

Part # 18753-0530

O-Ring

$ 16.69 / each

Not Shown
(Not Shown on image above)

Part # 18752-0000

Ball Bearing

$ 59.62 / each

Seal Kit
(Not Shown on image above)

Part # 92701-0180

Seal

$ 15.71 / each

Seal Kit
(Not Shown on image above)

Part # 96080-0371

Seal

Mechanical Seal

$ 95.18 / each

Not Shown
(Not Shown on image above)

Part # CAT3N4850

Mounting Gasket

Contact Us for Pricing

Seal Kit
(Not Shown on image above)

Part # 17970-0100MNK

Minor Service Kit, with Impeller, Seal and Gasket

$ 251.40 / each

Not Shown
(Not Shown on image above)

Part # 17970-0100MJK

Major Service Kit, with All The Internal Service Parts Except The Shaft

$ 1277.37 / each
