Jabsco Pump model 17540-0001 Parts

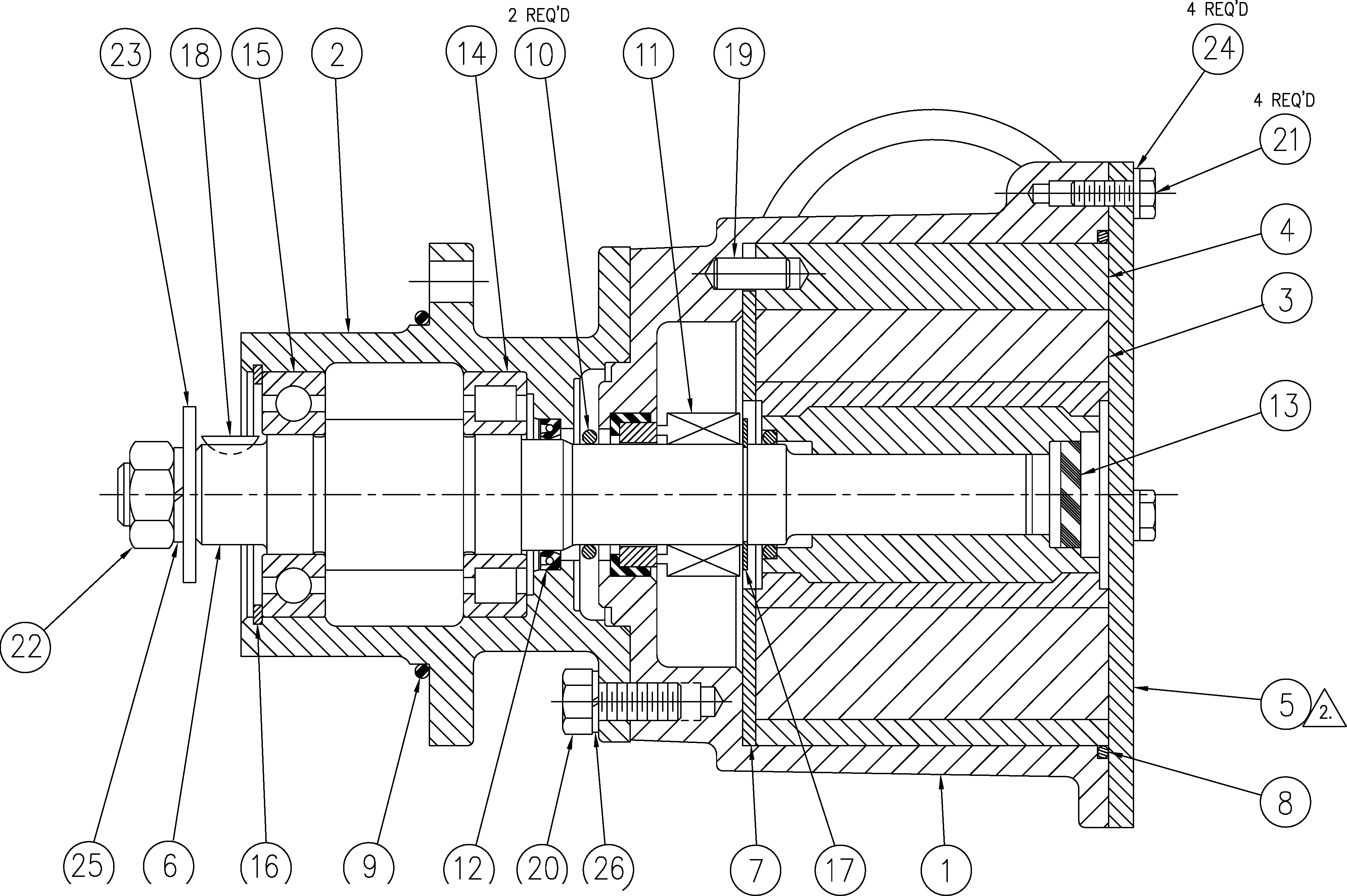

PARTS LIST for Jabsco Pump model # 17540-0001 Pump:
( Click Here for the Jabsco Pump 17540-0001 Product Page )
Item 1
(on image above)
Body - Casting
Contact Us for Pricing
Item 1
(on image above)
Body - Machining
Contact Us for Pricing
Item 2
(on image above)
Bearing Housing - Casting
Contact Us for Pricing
Item 2
(on image above)
Bearing Housing - Machining
Contact Us for Pricing
Item 3
(on image above)
Impeller
Impeller, Neoprene
$ 184.48 / each
Item 4
(on image above)
Cam Liner
$ 282.62 / each
Item 5
(on image above)
End Cover
$ 1489.70 / each
Item 6
(on image above)
Shaft
$ 296.33 / each
Item 7
(on image above)
Wear Plate
$ 256.11 / each
Item 8
(on image above)
O-Ring
Contact Us for Pricing
Item 9
(on image above)
O-Ring
$ 6.87 / each
Item 10
(on image above)
O-Ring
Contact Us for Pricing
Item 11
(on image above)
Seal
Seal, Mechanical
$ 95.18 / each
Item 12
(on image above)
Seal, Lip
$ 23.23 / each
Item 13
(on image above)
Seal, Spline
Contact Us for Pricing
Item 14
(on image above)
Bearing, Roller
Contact Us for Pricing
Item 15
(on image above)
Bearing, Ball
Contact Us for Pricing
Item 16
(on image above)
Retaining Ring
Contact Us for Pricing
Item 17
(on image above)
Retaining Ring
Contact Us for Pricing
Item 18
(on image above)
Key, Woodruff
Contact Us for Pricing
Item 19
(on image above)
Pin, Dowel
$ 9.97 / each
Item 20
(on image above)
Screw, Hex Hd 3/8-16 X 7/8 Long
Contact Us for Pricing
Item 21
(on image above)
Screw, Hex Hd 1/4-20 X 5/8 Long
$ 5.55 / each
Item 22
(on image above)
Nut, Hex 5/8-18
$ 7.45 / each
Item 23
(on image above)
Washer, Flat
Contact Us for Pricing
Item 24
(on image above)
Washer, Flat 1/4
$ 1.40 / each
Item 25
(on image above)
Washer, Split Lock 5/8
Contact Us for Pricing
Item 26
(on image above)
Washer, Split Lock 3/8
Contact Us for Pricing
Item MNK
(on image above)
Seal Kit
Minor Service Kit, for Jabsco 17540-0001, with Impeller, Seal and Gasket
$ 293.64 / each
Item MJK
(on image above)
Major Service Kit, for Jabsco 17540-0001, with All Internal Parts Except the Shaft.
$ 1706.23 / each
