Jabsco Pump model 17360-1001 Parts

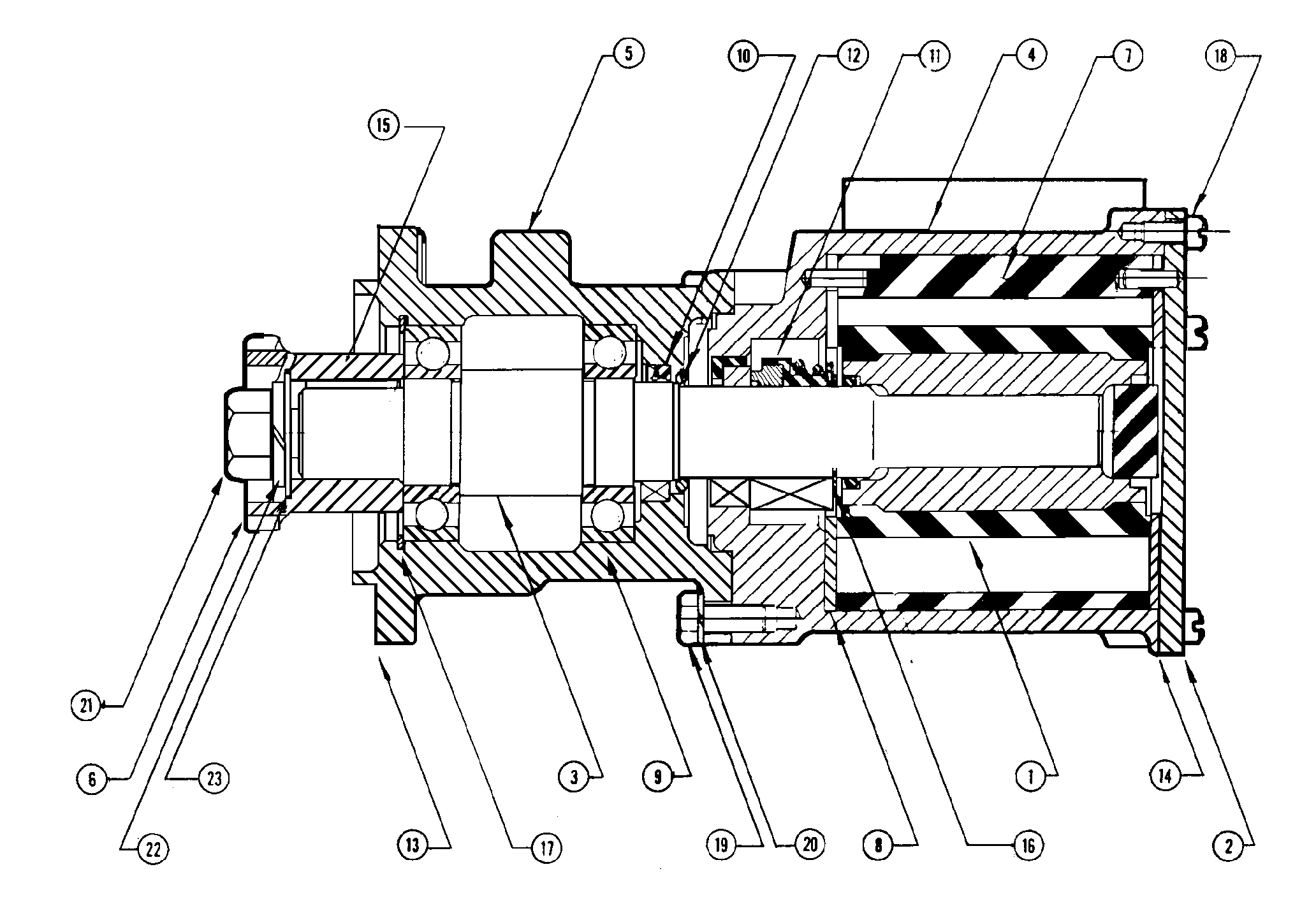

PARTS LIST for Jabsco Pump model # 17360-1001 Pump:
( Click Here for the Jabsco Pump 17360-1001 Product Page )
Item 1
(on image above)
Impeller, Neoprene
$ 144.26 / each
Item 2
(on image above)
End Cover
$ 325.80 / each
Item 3
(on image above)
Shaft
$ 904.73 / each
Item 7
(on image above)
Cam Liner
$ 275.98 / each
Item 8
(on image above)
Wearplate, 616 Ss
$ 102.67 / each
Item 9
(on image above)
Ball Bearing
$ 59.62 / each
Item 10
(on image above)
Seal, Oil
$ 15.71 / each
Item 11
(on image above)
Seal, Water
$ 95.18 / each
Item 12
(on image above)
O-Ring
$ 2.82 / each
Item 13
(on image above)
Gasket, Adaptor Flange
Contact Us for Pricing
Item 14
(on image above)
Gasket, End Cover
$ 22.07 / each
Item 15
(on image above)
Woodruf Key
$ 11.04 / each
Item 16
(on image above)
Retaining Ring, Seal
$ 17.67 / each
Item 17
(on image above)
Retaining Ring, Bearing
$ 8.83 / each
Item 18
(on image above)
Screw, End Cover 1/4 - 20 X 1/2
$ 2.61 / each
Item AKit
(on image above)
Screw Kit, Housing To Body
Contact Us for Pricing
Item BKit
(on image above)
Nut Kit, Drive Gear
Contact Us for Pricing
Item Hkit
(on image above)
Mounting Hardware Kit (Not Illustrated)
Contact Us for Pricing
