Jabsco Pump # 1673-9001 Parts Order page( Click Here for the Jabsco Pump # 1673-9001 Product Page ) |
|

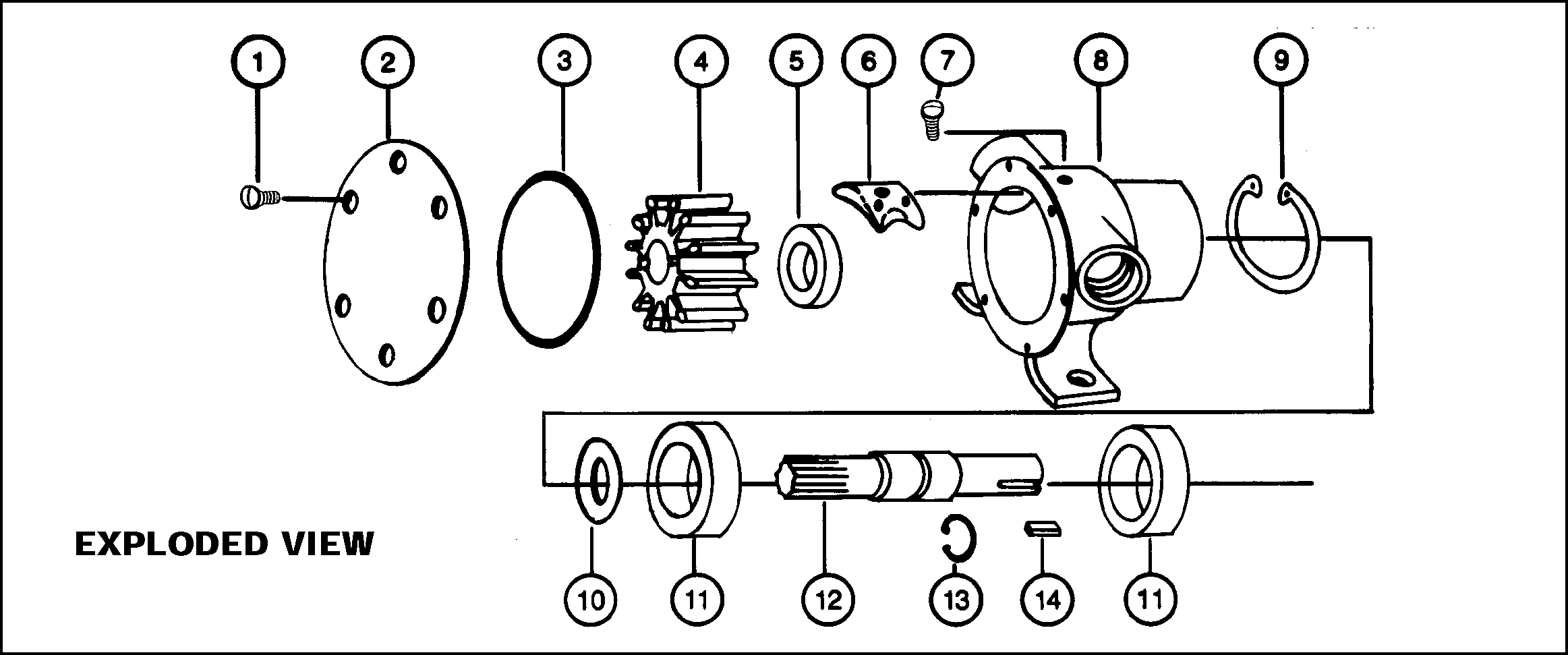

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 1673-9001 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0134 | Screw Kit, includes Cam and End Cover Screws | $15.05 | 12 in Stock | 1 | ||
| 2 | # 11836-0000 | Endcover | $42.99 | 30 in Stock | 1 | ||
| 3 | # 18753-0133 | O-Ring | $15.05 | 34 in Stock | 1 | ||
| 4 | # 1210-0001-P | Impeller, Neoprene | $44.46 | 56 in Stock | 1 | ||
| 5 | # 92700-0060 | Seal | $33.87 | 37 in Stock | 1 | ||
| 6 | # 490-0001 | Cam Full Thickness | $51.41 | 17 in Stock | 1 | ||
| 9 | # 18753-0131 | Retaining Ring | $10.63 | 30 in Stock | 1 | ||
| 10 | # 3286-0000 | Slinger | $15.53 | 17 in Stock | 1 | ||
| 11 | # 92600-0120 | Bearing | $47.65 | 0 in Stock | 2 | ||
| 12 | # 18753-0129 | Shaft | $149.29 | 3 in Stock | 1 | ||
| 13 | # 18753-0132 | Retaining Ring | $8.85 | 90 in Stock | 1 | ||
| 14 | # 9215-0010 | Key | $10.04 | 3 in Stock | 1 | ||
| 14 | # 90015-0001 | Service Kit, Neoprene, includes Neoprene Impeller, O-ring and Lip Seal | $96.57 | 2 in Stock | 1 | ||
