Jabsco Pump # 16380 Parts Order page |
|

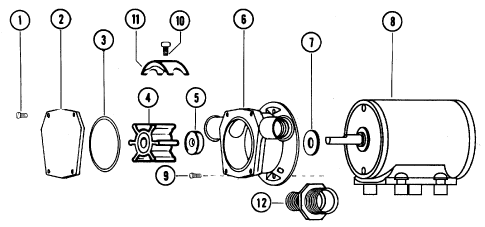

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 16380 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0102 | Screw Kit (End Cover) - includes 4 screws | $13.38 | 2 in Stock | 1 | ||
| 2 | # 6791-1100 | End Cover | $61.05 | 1 in Stock | 1 | ||
| 3 | # 18753-0104 | O-Ring * | $4.26 | 12 in Stock | 1 | ||
| 4 | # 6303-0003-P | Impeller * | $30.79 | 28 in Stock | 1 | ||
| 5 | # 93000-0100 | Seal * | $17.83 | 2 in Stock | 1 | ||
| 7 | # 6342-0000 | Slinger | $1.77 | 16 in Stock | 1 | ||
| 9 | # 98019-0020 | Screw (Pump to Motor) | $3.43 | 7 in Stock | 2 | ||
| 10 | # 91002-0010 | Screw (Cam) | $17.52 | 36 in Stock | 1 | ||
| 11 | # 2907-0001 | Cam | $45.79 | 2 in Stock | 1 | ||
| 12 | # 18753-0103 | Port Adaptor Kit (2 each) | $23.68 | 14 in Stock | 1 | ||
| **S+K | # 90061-0003 | Service Kit | $69.84 | 2 in Stock | 1 | ||
| PumpEnd | # 7440-1003 | Replacement Pump Head - Obsolete : No replacement | $362.80 | 2 in Stock | 1 | ||
