Jabsco Pump # Parts Order page( Click Here for the Jabsco Pump # Product Page ) |
|

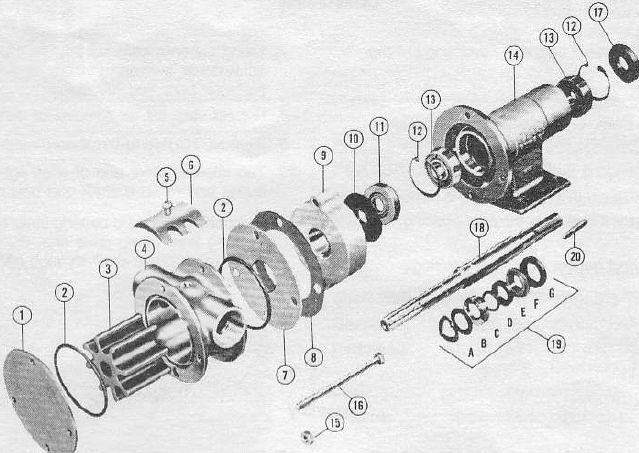

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 92000-0310 | O-Ring | $14.02 | 0 in Stock | 2 | ||
| 3 | # 964-0001 | Impeller | $109.60 | 0 in Stock | 1 | ||
| 4 | # 468-0000 | Body | $2281.92 | 0 in Stock | 1 | ||
| 5 | # 91030-0020 | Screw (cam) | $14.53 | 0 in Stock | 1 | ||
| 6 | # 1029-0000 | Cam | $305.13 | 0 in Stock | 1 | ||
| 8 | # 6503-0000 | Gasket (for wearplate) | $54.84 | 52 in Stock | 1 | ||
| 11 | # 496-0000 | Bearing Seal (inner) | $121.99 | 0 in Stock | 1 | ||
| 13 | # 92600-0120 | Ball Bearings | $44.38 | 11 in Stock | 2 | ||
| 16 | # 91094-0120 | Bolt | $5.02 | 12 in Stock | 4 | ||
| 17 | # 496-0000 | Bearing Seal (outer) | $121.99 | 0 in Stock | 1 | ||
| 19 | # 1816-0000 | Seal | $312.33 | 2 in Stock | 1 | ||
| 20 | # 91402-0110 | Key | $1.07 | 17 in Stock | 1 | ||
| **SK | # 90008-0001 | Service Kit, Neoprene | $370.35 | 0 in Stock | 1 | ||
