Jabsco Pump # 12290-0271 Parts Order page( Click Here for the Jabsco Pump # 12290-0271 Product Page ) |
|

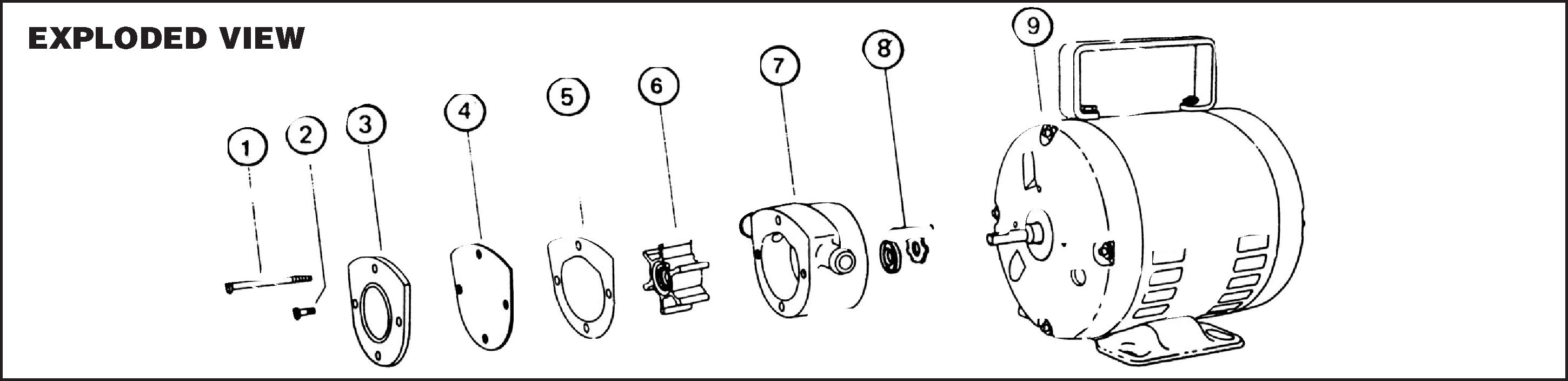

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 12290-0271 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 91014-0010 | Screw (Body to Motor) | $9.88 | 11 in Stock | 2 | ||
| 2 | # 91014-0020 | Screw (end Cover) | $3.36 | 5 in Stock | 2 | ||
| 3 | # 12555-0000 | End Cover | $46.23 | 4 in Stock | 1 | ||
| 4 | # 12557-0000 | Wearplate | $41.39 | 9 in Stock | 1 | ||
| 5 | # 12558-0000 | Gasket | $4.20 | 291 in Stock | 1 | ||
| 6 | # 7273-0001-P | Impeller, Neoprene | $41.25 | 26 in Stock | 1 | ||
| 7 | # 12554-0000 | Body | $154.68 | 2 in Stock | 1 | ||
| 8 | # 1040-0000 | Seal, Standard | $14.71 | 46 in Stock | 1 | ||
| 8 | # 1040-0001 | Seal, Viton | $30.65 | 4 in Stock | 1 | ||
| 9 | # 18742-0000 | Motor, 1/4 hp, 115 Vac, 60 Hz, TENV, 1725 RPM, 8 foot Cord with 3 Prong Plug | $459.10 | 26 in Stock | 1 | ||
| PH | # 12590-0011 | Replacement Pump Head w/ Neoprene Impeller | $170.82 | 10 in Stock | 1 | ||
| SK | # 90126-0002 | Service Kit w/ Neoprene Impeller, Gasket and seal | $55.95 | 2 in Stock | 1 | ||
