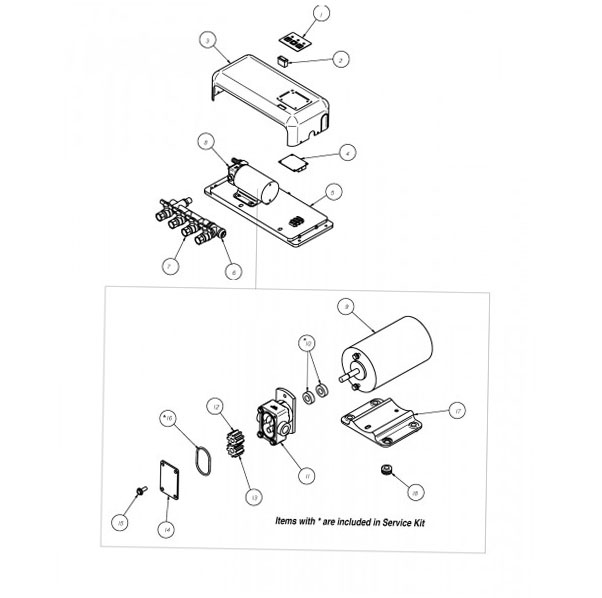

Groco Pump model G-4 24V Parts( Click Here for the Groco Pump G-4 24V Product Page ) |
|
Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Groco Pump model # G-4 24V | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # G6 Control Assy | Control Assembly, symbols | $1270.99 | 0 in Stock | 1 is Req'd | ||
| 2 | # SWITCH-7 | Switch only | $20.23 | 0 in Stock | 1 is Req'd | ||
| 3 | # M350-4A | Manifold, 3 valves | $329.63 | 0 in Stock | 1 is Req'd | ||
| 4 | # IBV-500-FM | Valve only | $39.27 | 0 in Stock | 4 are Req'd | ||
| 5 | # GPB-1 24V | Positive Displacement Gear PumpThe Concept | $649.74 | 2 in Stock | 1 is Req'd | ||
| 9 | # 24V-F | Motor | $455.77 | 2 in Stock | 1 is Req'd | ||
| 10 | # 031-075-8 | Seal | $5.95 | 36 in Stock | 2 are Req'd | ||
| 11 | # GP-1-375B | Casting, Housing | $259.42 | 0 in Stock | 1 is Req'd | ||
| 12 | # GP-09-0938 | Gear, driven | $19.04 | 0 in Stock | 1 is Req'd | ||
| 13 | # GPK-09-0938 | Gear, keyed | $19.04 | 0 in Stock | 1 is Req'd | ||
| 14 | # GP-1-C | Cover | $23.80 | 0 in Stock | 1 is Req'd | ||
| 15 | # 1032X38HSL | Screw | $3.57 | 0 in Stock | 4 are Req'd | ||
| 16 | # 2-029 | O-Ring | $1.19 | 0 in Stock | 1 is Req'd | ||
| 17 | # B-200-P | Base | $8.33 | 0 in Stock | 1 is Req'd | ||
| 18 | # 06-0001-00 | Grommet Set | $2.38 | 0 in Stock | 1 is Req'd | ||
