Groco Pump model BVS-1500 Parts

PARTS LIST for Groco Pump model # BVS-1500 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Groco Pump BVS-1500 Product Page )

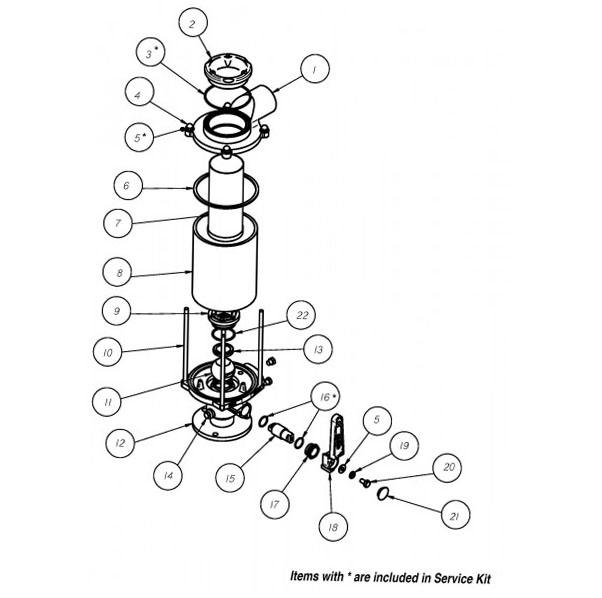

Blowup of BVS-1500

Item 1
(on image above)

Part # SS-1501

Casting, Strainer top

$ 517.44 / each

Item 2
(on image above)

Part # ARG-1501-B

Casting, Cap

$ 203.28 / each

Item 3
(on image above)

O-Ring

$ 2.64 / each

Item 4
(on image above)

Part # 1420CS

Cap Nut

$ 1.76 / each

Item 5
(on image above)

Part # 14SS

Washer

$ 0.88 / each

Item 6
(on image above)

Part # 10R SET

Gasket

$ 15.84 / each

Item 7
(on image above)

Part # SS-1504

Basket, Monel

$ 322.08 / each

Item 7
(on image above)

Part # SSS-1504

Basket, #304 SS

$ 130.24 / each

Item 8
(on image above)

Sight Glass

$ 255.20 / each

Item 9
(on image above)

Part # BVS-1502

Casting, Lock Nut

$ 136.40 / each

Item 10
(on image above)

Tie Rod, outside

$ 14.96 / each

Item 11
(on image above)

Part # BV-1504

Ball

$ 111.76 / each

Item 12
(on image above)

Part # BVS-1500-B

Casting, Valve Body

$ 760.32 / each

Item 13
(on image above)

Part # BV-1506

Seat, PTFE

$ 14.08 / each

Item 14
(on image above)

Part # 1827HB

Drain Plug

$ 2.64 / each

Item 16
(on image above)

Part # 1-116

O-Ring, PTFE

$ 2.64 / each

Item 17
(on image above)

Part # BV-2003-A

Nut

$ 43.12 / each

Item 18
(on image above)

Part # BV-1508

Casting, Handle

$ 57.20 / each

Item 19
(on image above)

Part # 38FS

Washer

$ 1.76 / each

Item 21
(on image above)

Part # PFW-12

Cap

$ 5.28 / each

Item 22
(on image above)

Part # 2-140

O-Ring

$ 0.88 / each

Item 23
(on image above)

Part # BVS-3

Service Kit

$ 33.44 / each
