Groco Pump model AVD-1250 Parts

PARTS LIST for Groco Pump model # AVD-1250 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Groco Pump AVD-1250 Product Page )

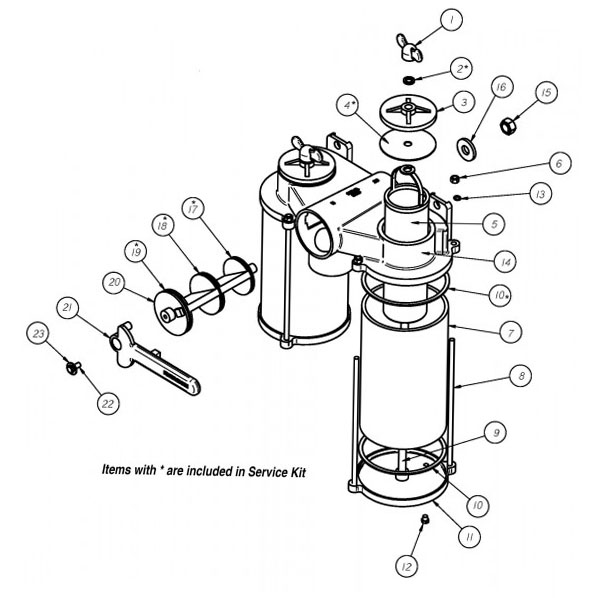

Blowup of AVD-1250

Item 1
(on image above)

Wingnut

$ 22.88 / each

Item 2
(on image above)

Washer

$ 0.88 / each

Item 3
(on image above)

Cover

$ 78.32 / each

Item 4
(on image above)

Gasket

$ 3.52 / each

Item 5
(on image above)

Part # BM-5

Basket, Monel

$ 209.44 / each

Item 6
(on image above)

Nut

$ 0.88 / each

Item 7
(on image above)

Enclosure, #316 SS

$ 294.80 / each

Item 8
(on image above)

Tie Rod, outside

$ 14.96 / each

Item 10
(on image above)

Part # 8R SET

Gasket Set

$ 15.84 / each

Item 11
(on image above)

End Cap

$ 139.04 / each

Item 12
(on image above)

Part # 1827HB

Drain Plug

$ 2.64 / each

Item 13
(on image above)

Part # 14SS

Washer

$ 0.88 / each

Item 15
(on image above)

Part # 1220HB

Nut

$ 4.40 / each

Item 16
(on image above)

Part # VD-A

Washer

$ 7.04 / each

Item 17
(on image above)

Part # 2-218

O-Ring

$ 0.88 / each

Item 19
(on image above)

Part # 2-222

O-Ring

$ 0.88 / each
