Finish Thompson Pump # DB22P-21 Parts Order page( Click Here for the Finish Thompson Pump # DB22P-21 Product Page ) |
|

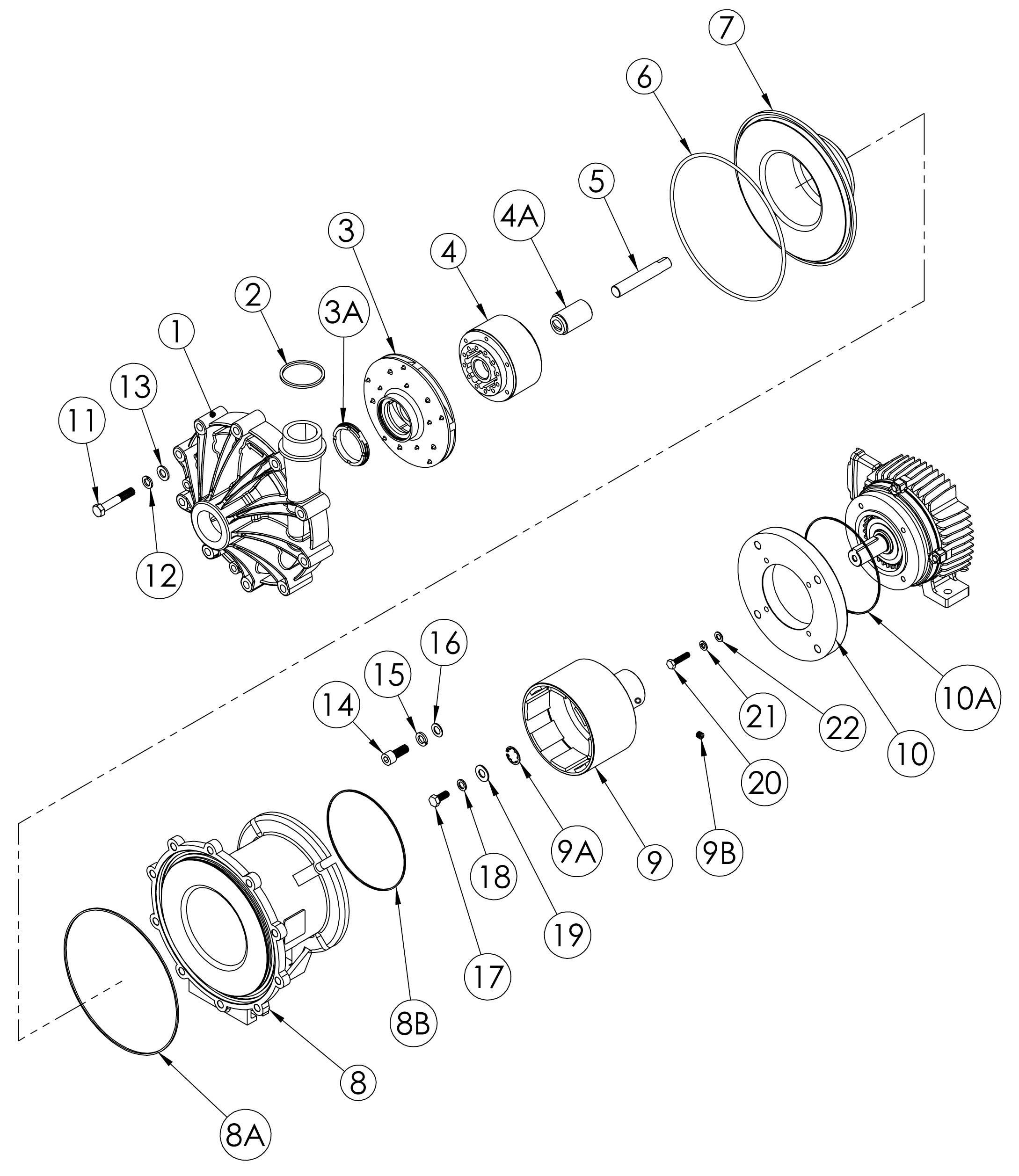

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Finish Thompson Pump model # DB22P-21 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 106403 | Housing, NPT threads and ceramic ring | $560.00 | 0 in Stock | 1 | ||
| 3A | # J103899 | Impeller Thrust Ring Only, Closed impeller, Fluorosint | $208.00 | 0 in Stock | 1 | ||
| 4 | # 106476 | Impeller Drive Assembly, with carbon bushing | $1861.00 | 0 in Stock | 1 | ||
| 4A | # J103917-1 | Impeller Bushing Only, Carbon | $343.00 | 0 in Stock | 1 | ||
| 5 | # 106450 | Impeller Shaft, Ceramic | $148.00 | 0 in Stock | 1 | ||
| 6 | # 106764 | Housing O-ring, FKM | $28.00 | 0 in Stock | 1 | ||
| 7 | # 106400 | Barrier | $356.00 | 0 in Stock | 1 | ||
| 8 | # 106414-1 | Motor Adapter, Standard | $660.00 | 0 in Stock | 1 | ||
| 8A | # 106844 | Front Motor Adapter O-Ring, Buna N | $1.53 | 0 in Stock | 1 | ||
| 8B | # 106847 | Rear Motor Adapter O-Ring (NEMA motors only), Buna N | $2.35 | 0 in Stock | 1 | ||
| 9 | # 106453 | Outer Drive Magnet Assembly with Retaining Ring, 182/184TC frame (includes set screws) | $1290.00 | 0 in Stock | 1 | ||
| 9B | # J101084 | Set Screws (NEMA Motor Only), Stainless steel | $1.37 | 0 in Stock | 1 | ||
| 11 | # 106501 | Housing Bolt | $11.00 | 0 in Stock | 1 | ||
| 12 | # 105757 | Housing Lock Washer | $0.17 | 0 in Stock | 1 | ||
| 13 | # 106505 | Housing Flat Washer | $0.50 | 0 in Stock | 1 | ||
| 14 | # 106495 | Motor Adapter Bolt, All frame sizes except 213/215TC | $2.56 | 0 in Stock | 1 | ||
| 16 | # 106497 | Motor Adapter Flat Washer | $0.20 | 0 in Stock | 1 | ||
