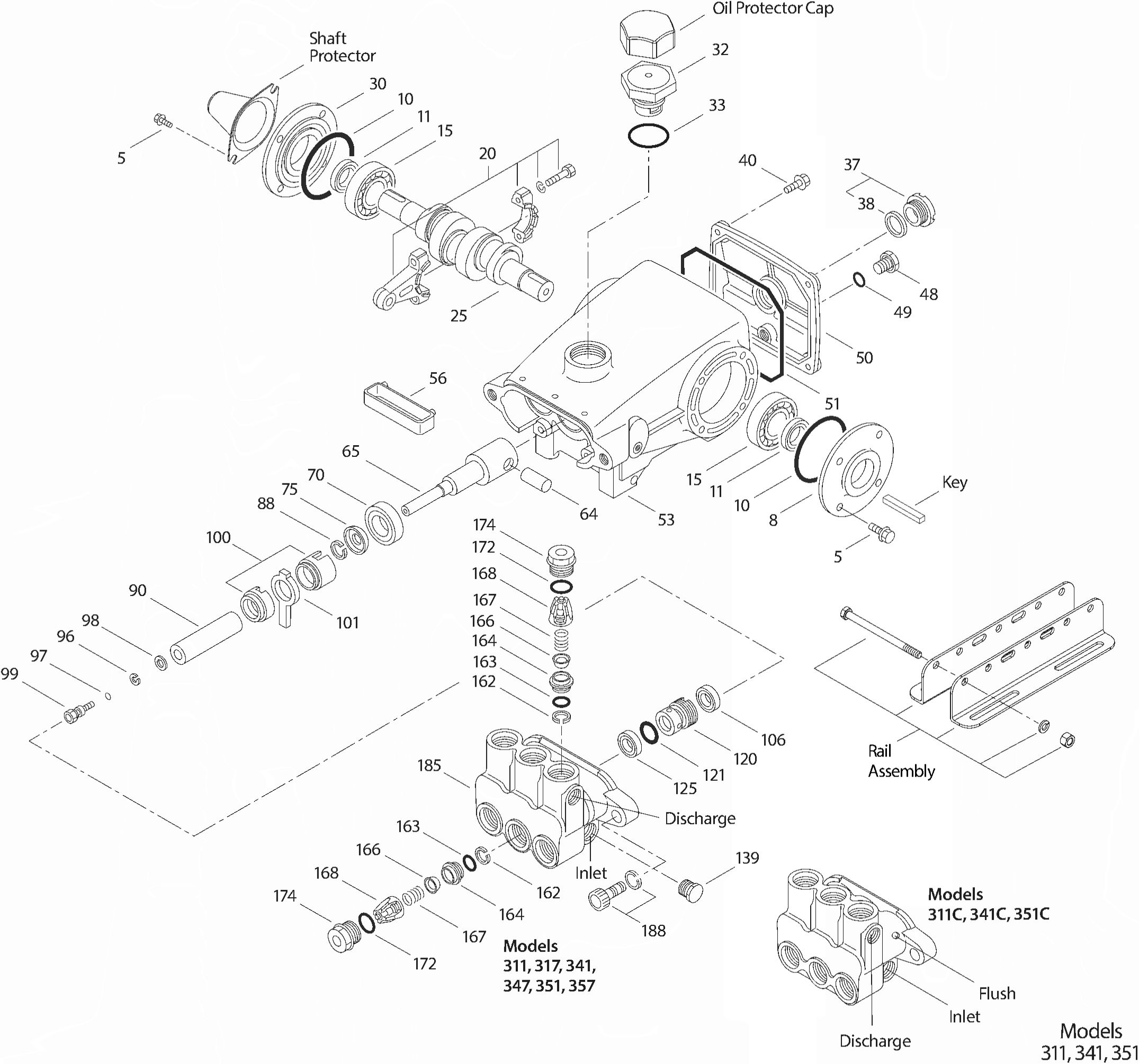

Parts List for Cat Pump model # 317
Key
Part #
Description
Price
Stock
Required
Quantity
Action
KIT1 # 34153
SEAL KIT, Seal and O-ring KIT, in includes all low and high-pressure seals and their associated O-rings
$165.80
2 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
KIT2 # 31152
VALVE KIT, VALVE KIT, includes the Valve, retainer, spring, seat, and necessary O-rings
$178.04
0 in Stock
2
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
5 # 92538
Screw, Sems HHC, 304 Stainless Steel
$2.27
0 in Stock
8
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
8 # 43344
Cover, Bearing, Aluminum
$30.80
0 in Stock
2
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
10 # 43343
O-Ring, Bearing Cover-70D, Nitrile
$4.31
2 in Stock
2
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
11 # 43222
Seal, Oil, Crankshaft, Nitrile
$8.03
4 in Stock
2
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
15 # 14480
Bearing, Ball, Steel
$30.29
2 in Stock
2
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
20 # 45883
Rod, Connecting Assembly, HS
$56.74
3 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
25 # 43342
Crankshaft, Dual End (Models 311, 311C, 317), Forged Chrome-moly
$387.27
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
30 # 44949
Cover, Blind Shaft (Models 341, 341C), Aluminum
$31.64
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
32 # 43211
Cap, Oil Filler, ABS Plastic
$9.81
6 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
33 # 14177
O-Ring, Filler Cap-70D, Nitrile
$1.80
5 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
37 # 92241
Gauge, Oil, Bubble with Gasket, Poly Carbonate
$11.35
4 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
38 # 44428
Gasket, Flat, Oil Gauge-80D, Nitrile
$2.56
3 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
40 # 92542
Screw, Sems HHC, 304 Stainless Steel
$2.52
0 in Stock
4
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
48 # 25625
Plug, Drain, Steel/Chrome Plated
$5.99
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
49 # 23170
O-Ring, Drain Plug-70D, Nitrile
$1.26
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
50 # 48772
Cover, Rear, Aluminum
$57.80
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
51 # 48773
O-Ring, Rear Cover, Nitrile
$7.05
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
53 # 48769
Crankcase, Aluminum
$462.38
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
56 # 43355
Pan, Oil, POP
$4.51
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
64 # 43351
Pin, Crosshead, Chrome-Moly
$12.15
0 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
65 # 45256
Rod, Plunger, 316 Stainless Steel/Zamak
$128.68
0 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
70 # 43228
Seal, Oil, Crankcase, Nitrile
$8.79
2 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
75 # 43328
Slinger, Barrier, 304 Stainless Steel
$3.25
0 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
88 # 45697
Washer, Keyhole, 304 Stainless Steel
$3.02
3 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
90 # 43367
Plunger, Ceramic
$125.84
3 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
95 # 89653
Stud, Plunger Retainer, 316 Stainless Steel
$17.64
0 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
96 # 43235
Backup Ring, Plunger Retainer, PTFE
$3.29
6 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
97 # 17399
O-Ring, Plunger Retainer-80D, Nitrile
$1.80
9 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
98 # 44041
Gasket, 316 Stainless Steel
$3.80
3 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
99 # 44031
Retainer, Plunger, 316 Stainless Steel
$37.98
0 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
100 # 45688
Retainer, Seal 2-Piece, PVDF
$6.06
2 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
101 # 43302
Wick, Long Tab
$1.80
5 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
106 # 44127
Seal, Low-Pressure with SS-Spring, Nitrile
$21.10
2 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
120 # 45680
Case, Seal, 316 Stainless Steel
$293.62
2 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
121 # 14200
O-Ring, Seal Case-70D, Nitrile
$1.77
0 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
125 # 44649
Seal, High-Pressure with SS-Support, Special Blend Buna
$31.23
2 in Stock
3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
139 # 44563
Plug, Inlet, Nickel-Aluminum-Bronze
$113.06
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
162 # 48361
Backup Ring, Seat, D
$4.31
1 in Stock
6
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
163 # 43358
O-Ring, Seat-70D, Nitrile
$1.29
0 in Stock
6
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
164 # 44128
Seat, 316 Stainless Steel
$26.36
0 in Stock
6
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
166 # 44057
Valve, 316 Stainless Steel
$9.45
0 in Stock
6
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
167 # 44056
Spring, Valve, 316 Stainless Steel
$5.99
0 in Stock
6
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
168 # 44565
Retainer, Valve Spring, PVDF
$5.99
0 in Stock
6
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
171 # 44832
Spring, Coil, 304 Stainless Steel
$9.28
0 in Stock
6
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
172 # 17615
O-Ring, Valve Plug-75D, Nitrile
$2.21
4 in Stock
6
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
174 # 44833
Plug, Valve, Nickel-Aluminum-Bronze
$87.33
0 in Stock
6
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
185 # 44124
Manifold Head, Nickel-Aluminum-Bronze
$1262.25
0 in Stock
1
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
186 # 15847
Lockwasher, 304 Stainless Steel
$1.26
0 in Stock
2
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
188 # 87950
Screw HSH, 304 Stainless Steel
$7.05
0 in Stock
2
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Modify
Add
Remove
Download Parts PDF Specsheet
