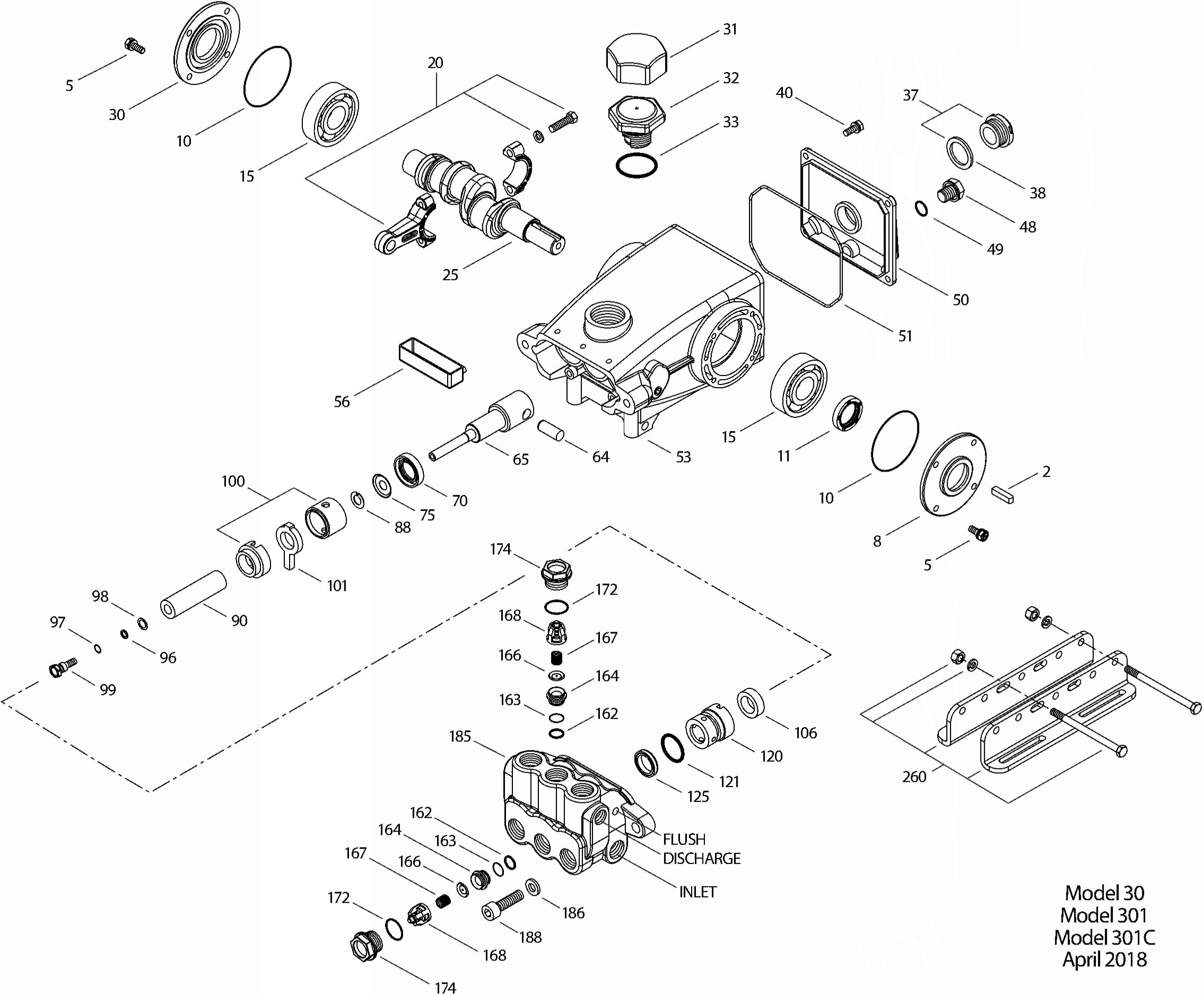

Parts List for Cat Pump model # 301
Key Part # Description Price Stock Required Quantity Action
KIT1 # 34153 SEAL KIT, Seal and O-ring KIT, in includes all low and high-pressure seals and their associated O-rings $165.80 2 in Stock 1
KIT2 # 31152 VALVE KIT, VALVE KIT, includes the Valve, retainer, spring, seat, and necessary O-rings $178.04 0 in Stock 1
5 # 92538 Screw, HHC Sems, 304 Stainless Steel $2.27 0 in Stock 8
8 # 43344 Cover, Bearing, Aluminum $30.80 0 in Stock 1
10 # 43343 O-Ring, Bearing Case - 70D, Nitrile $4.31 2 in Stock 2
11 # 43222 Seal, Oil, Crankshaft, Nitrile $8.03 4 in Stock 1
15 # 14480 Bearing, Ball, Steel $30.29 2 in Stock 2
20 # 45883 Rod, Connecting, Assy, HS $56.74 3 in Stock 3
30 # 44949 Cover, Blind Shaft, Aluminum $31.64 0 in Stock 1
31 # 828710 Protector, Oil Cap wFoam Gasket $6.71 0 in Stock 1
32 # 43211 Cap, Oil Filler, ABS Plastic $9.81 6 in Stock 1
33 # 14177 O-Ring, Filler Cap - 70D, Nitrile $1.80 5 in Stock 1
37 # 92241 Gauge, Oil, Bubble wGasket - 80D $11.35 4 in Stock 1
38 # 44428 Gasket, Flat, Oil Gauge - 80D, Nitrile $2.56 3 in Stock 1
40 # 92542 Screw, HHC Sems, 304 Stainless Steel $2.52 0 in Stock 4
48 # 25625 Plug, Drain, Steel/Chrome Plated $5.99 0 in Stock 1
49 # 23170 O-Ring, Drain Plug - 70D, Nitrile $1.26 0 in Stock 1
50 # 48772 Cover, Rear, Aluminum $57.80 0 in Stock 1
51 # 48773 O-Ring, Crankcase Cover $7.05 0 in Stock 1
53 # 48769 Crankcase, Aluminum $462.38 0 in Stock 1
56 # 43355 Pan, Oil, POP $4.51 0 in Stock 1
64 # 43351 Pin, Crosshead, Chrome-Moly $12.15 0 in Stock 3
65 # 45256 Rod, Plunger, Short, 316 Stainless Steel/Zamak $128.68 0 in Stock 3
70 # 43228 Seal, Oil, Crankcase, Nitrile $8.79 2 in Stock 3
75 # 43328 Slinger, Barrier, 304 Stainless Steel $3.25 0 in Stock 3
88 # 45697 Washer, Keyhole, 304 Stainless Steel $3.02 3 in Stock 3
90 # 43367 Plunger, Ceramic $125.84 3 in Stock 3
95 # 89653 Stud, Plunger Retainer, 316 Stainless Steel $17.64 0 in Stock 3
96 # 43235 Back-up-Ring, Plunger Retainer, PTFE $3.29 6 in Stock 3
97 # 17399 O-Ring, Plunger Retainer - 80D, Nitrile $1.80 9 in Stock 3
97 # 14160 O-Ring, Plunger Retainer - 80D, Fluorocarbon $3.96 0 in Stock 3
97 # 46204 O-Ring, Plunger Retainer - 70D, EPDM $3.00 0 in Stock 3
98 # 44041 Gasket, 316 Stainless Steel $3.80 3 in Stock 3
99 # 44031 Retainer, Plunger, 316 Stainless Steel $37.98 0 in Stock 3
100 # 45688 Retainer, Seal, 2-Pc $6.06 2 in Stock 3
101 # 43302 Wick, Long Tab $1.80 5 in Stock 3
106 # 44127 Seal, LPS wS-Spg (Model 30), wSS-Spg (Models 301, 301C), Nitrile $21.10 2 in Stock 3
106 # 45153 Seal, LPS wSS-Spg, Fluorocarbon $49.36 2 in Stock 3
106 # 48429 Seal, LPS wSS-Spg, EPDM $38.81 2 in Stock 3
120 # 45680 Case, Seal, 316 Stainless Steel $293.62 2 in Stock 3
121 # 14200 O-Ring, Seal Case - 70D, Nitrile $1.77 0 in Stock 3
121 # 11719 O-Ring, Seal Case, Fluorocarbon $13.41 2 in Stock 3
121 # 48907 O-Ring, Seal Case, EPDM $3.25 2 in Stock 3
125 # 44649 Seal, HPS wS (Model 30), wSS (Models 301, 301C), Special Blend Buna $31.23 2 in Stock 3
125 # 44936 Seal, HPS wSS, Fluorocarbon $59.49 2 in Stock 3
162 # 48361 Back-up-Ring, Seat, D $4.31 1 in Stock 6
163 # 43358 O-Ring, Seat - 70D, Nitrile $1.29 0 in Stock 6
163 # 44938 O-Ring, Seat - 70D, Fluorocarbon $10.55 0 in Stock 6
163 # 48908 O-Ring, Seat, EPDM $3.25 0 in Stock 6
164 # 44128 Seat, 316 Stainless Steel $26.36 0 in Stock 6
166 # 44057 Valve, 316 Stainless Steel $9.45 0 in Stock 6
167 # 44056 Spring, 316 Stainless Steel $5.99 0 in Stock 6
168 # 44565 Retainer, Spring, PVDF $5.99 0 in Stock 6
171 # 44832 Spring, Coil, 304 Stainless Steel $9.28 0 in Stock 6
172 # 17615 O-Ring, Valve Plug - 75D, Nitrile $2.21 4 in Stock 6
172 # 15855 O-Ring, Valve Plug - 70D, Fluorocarbon $9.95 0 in Stock 6
172 # 48431 O-Ring, Valve Plug - 75D, EPDM $5.58 0 in Stock 6
174 # 49296 Plug, Valve, 316 Stainless Steel $110.95 0 in Stock 6
185 # 49583 Head, Manifold -Flushed, 316 Stainless Steel $3267.85 0 in Stock 1
186 # 15847 Lockwasher, 304 Stainless Steel $1.26 0 in Stock 1
188 # 87950 Screw, HSH Sems, 304 Stainless Steel $7.05 0 in Stock 2
