Burks Pump # X3300G7-2-1/2-AB-ME Parts Order page( Click Here for the Burks Pump # X3300G7-2-1/2-AB-ME Product Page ) |
|

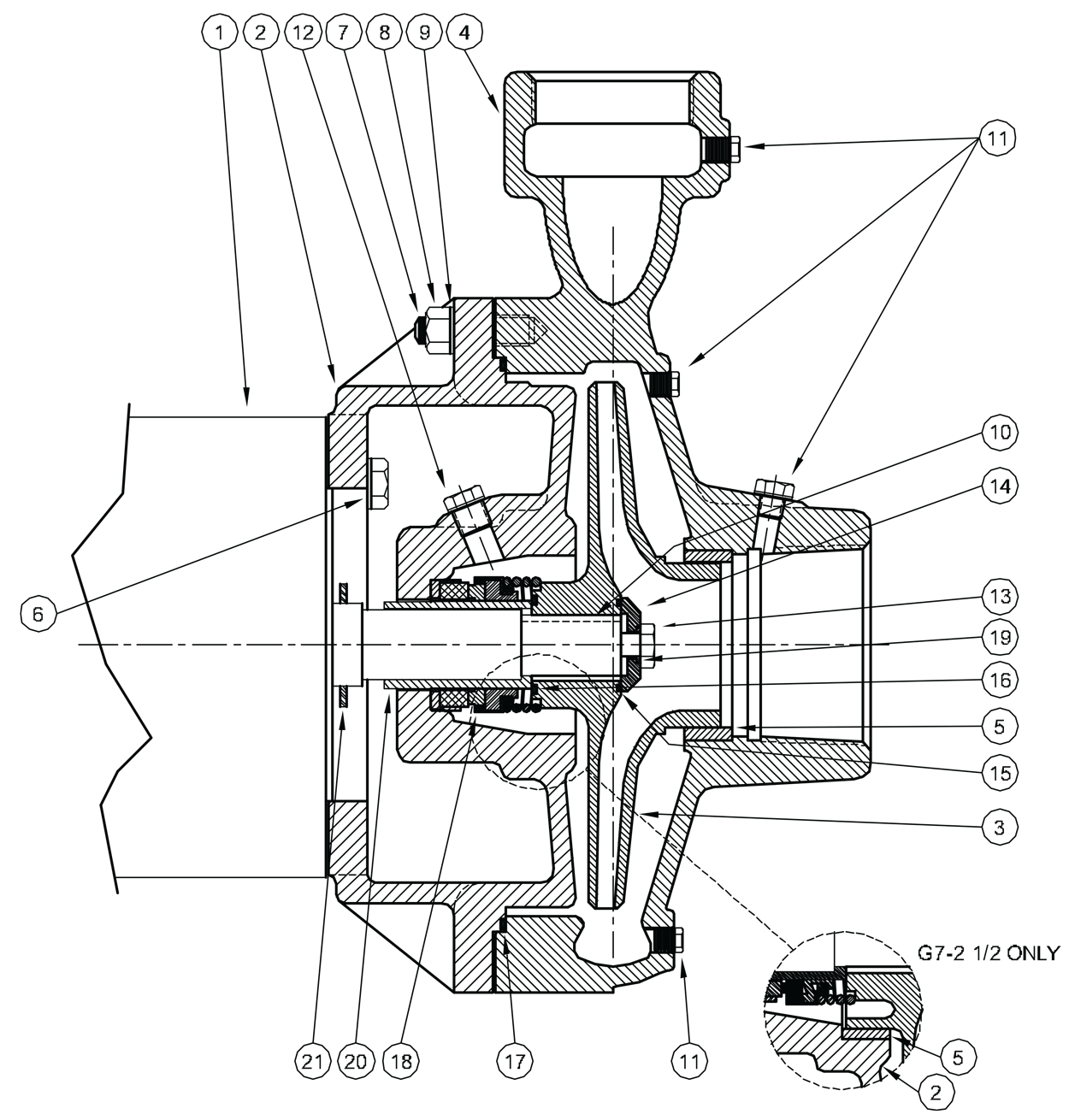

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # X3300G7-2-1/2-AB-ME | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 21310-A | Adapter, pump to motor, Bronze | $16570.40 | 2 in Stock | 1 | ||
| 3 | # 21087-7.50 | Impeller, Bronze 7.50 inch Diameter | $4308.70 | 2 in Stock | 1 | ||
| 5 | # 20680 | Wear Ring, Bronze | $211.20 | 2 in Stock | 1 | ||
| 7 | # 20424 | Stud | $6.60 | 8 in Stock | 8 | ||
| 8 | # 15-6-6 | Nut | $6.60 | 2 in Stock | 8 | ||
| 9 | # 20059 | Washer | $1730.30 | 2 in Stock | 8 | ||
| 10 | # 22107 | Key | $46.20 | 2 in Stock | 1 | ||
| 11 | # 01691-A | Pipe Plug, 1/8 inch, Brass | $6.60 | 2 in Stock | 6 | ||
| 12 | # 04236 | Pipe Plug, 1/4 inch, Bronze | $6.60 | 5 in Stock | 1 | ||
| 15 | # 22143 | O-Ring, EPT | $6.60 | 2 in Stock | 1 | ||
| 16 | # 22096 | O-Ring, EPT | $41.80 | 2 in Stock | 1 | ||
| 17 | # 23005 | O-Ring Gasket, EPDM | $68.20 | 4 in Stock | 1 | ||
| 18 | # 21721 | Seal, EPT/Carbon/Ceramic/Stainless Steel Mechanical Shaft Seal | $1140.70 | 5 in Stock | 1 | ||
| 19 | # 22095 | O-Ring Gasket, EPDM | $6.60 | 2 in Stock | 1 | ||
