Burks Pump # X3150G7A-2 Parts Order page( Click Here for the Burks Pump # X3150G7A-2 Product Page ) |
|

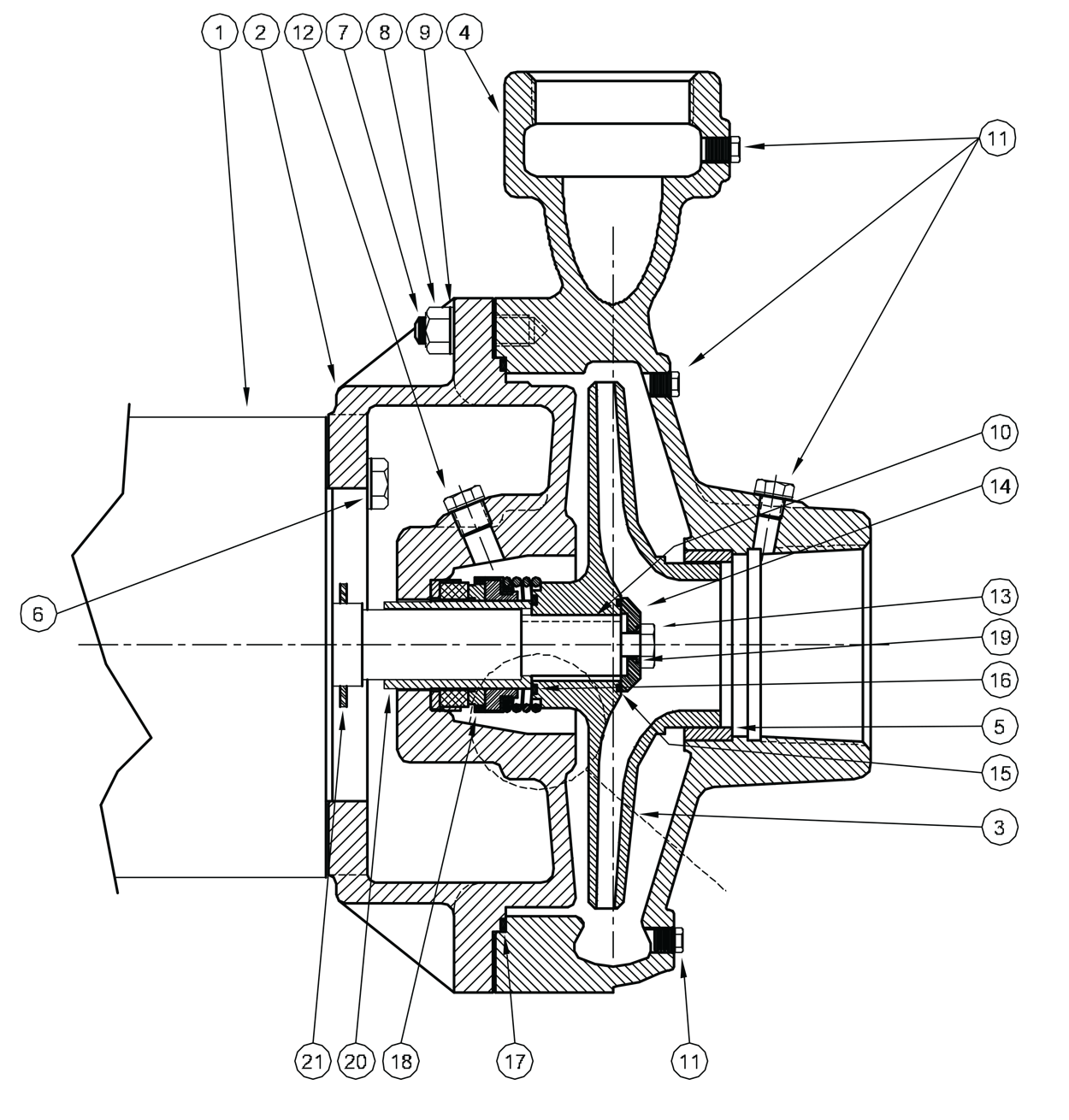

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # X3150G7A-2 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 21086 | Adapter, pump to motor, Cast Iron | $3248.30 | 2 in Stock | 1 | ||
| 5 | # 09915 | Wear Ring, Bronze | $137.50 | 7 in Stock | 1 | ||
| 6 | # 1-68-6 | Cap Screw | $6.60 | 2 in Stock | 4 | ||
| 7 | # 20424 | Stud | $6.60 | 8 in Stock | 8 | ||
| 8 | # 15-6-6 | Nut | $6.60 | 2 in Stock | 8 | ||
| 9 | # 20059 | Washer | $1730.30 | 2 in Stock | 8 | ||
| 10 | # 22107 | Key | $46.20 | 2 in Stock | 1 | ||
| 11 | # 01691-A | Pipe Plug, 1/8 inch, Brass | $6.60 | 2 in Stock | 6 | ||
| 12 | # 04236 | Pipe Plug, 1/4 inch, Bronze | $6.60 | 5 in Stock | 1 | ||
| 15 | # 22140 | O-Ring, Buna-N | $6.60 | 2 in Stock | 1 | ||
| 16 | # 22089 | O-Ring, Buna-N | $6.60 | 2 in Stock | 1 | ||
| 18 | # 21136 | Seal, Buna-N/Carbon/Ceramic/Stainless Steel Mechanical Shaft Seal | $553.30 | 5 in Stock | 1 | ||
| 19 | # 22086 | O-Ring Gasket, Buna-N | $6.60 | 2 in Stock | 1 | ||
