Burks Pump # T3304G7A-2 Parts Order page( Click Here for the Burks Pump # T3304G7A-2 Product Page ) |
|

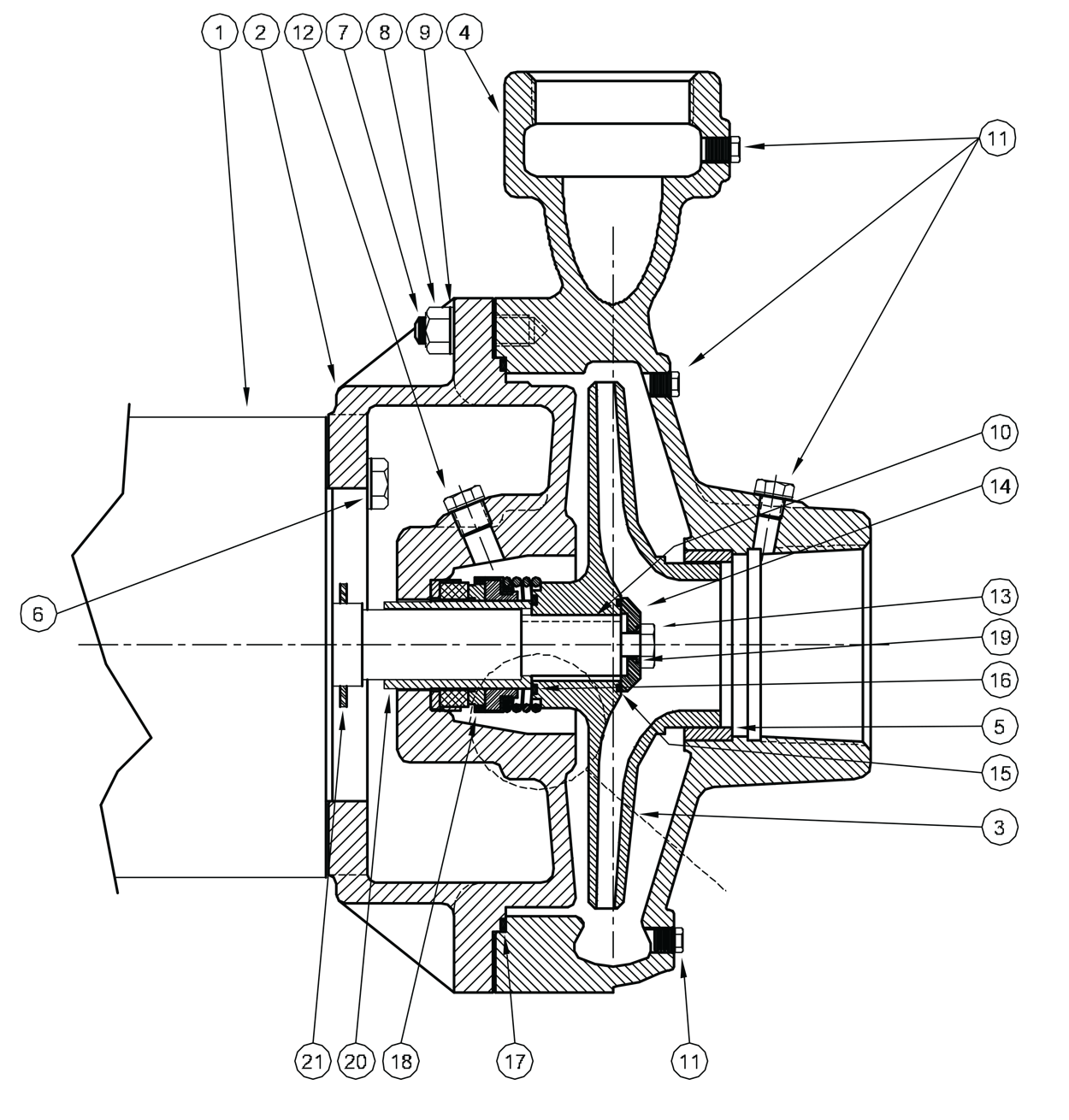

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # T3304G7A-2 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT2 | # PEOG7A-2-7.63 | Complete pump end kit, everything but the motor. Does NOT include the motor. Includes the Burks wet end kit 21982-7.63 (full diameter bronze impeller, cast iron pump casing with bronze wear ring, slinger washer, pipe plugs and hardware), the 7.63 inch full diameter impeller, the cast iron motor adapter 20650, and the standard Carbon/Ceramic/Buna mechanical seal and Buna O-rings. Complete replacement pump end, fits the existing 143JM to 184JM frame motor. | $3620.10 | 2 in Stock | 1 | ||
| 2 | # 20650 | Motor adapter, Cast Iron, 143JM to 184JM frame | $4738.80 | 2 in Stock | 1 | ||
| 3 | # 20421-7.63 | Impeller, 7.63 Inch Diameter, Bronze | $3085.50 | 2 in Stock | 1 | ||
| 5 | # 09915 | Casing wear ring, Bronze | $137.50 | 7 in Stock | 1 | ||
| 6 | # 04235 | Adapter cap screw, 3/8-16 x 1-1/4 Inch | $6.60 | 2 in Stock | 4 | ||
| 7 | # 20424 | Casing stud, Stainless Steel, 1/2-13 x 2 Inch | $6.60 | 8 in Stock | 8 | ||
| 8 | # 15-6-6 | Casing nut, 1/2-13 | $6.60 | 2 in Stock | 8 | ||
| 9 | # 20059 | Casing washer | $1730.30 | 2 in Stock | 8 | ||
| 10 | # 23014 | Impeller key, 3/16 Inch square x 1-1/2 Inch | $1.10 | 2 in Stock | 1 | ||
| 11 | # 01691-A | Pipe plug, 1/8 Inch, Bronze | $6.60 | 2 in Stock | 6 | ||
| 12 | # 04236 | Pipe plug, 1/4 Inch, Bronze | $6.60 | 5 in Stock | 1 | ||
| 13 | # 1-529-1 | Impeller cap screw, 3/8-16 x 1 Inch, Stainless Steel | $6.60 | 2 in Stock | 1 | ||
| 14 | # 22105-C | Impeller washer, Bronze | $101.20 | 3 in Stock | 1 | ||
| 15 | # 22083 | O-ring, size 024, Buna | $4.40 | 29 in Stock | 1 | ||
| 16 | # 22083 | O-ring, size 024, Buna | $4.40 | 29 in Stock | 1 | ||
| 18 | # 09917 | Mechanical seal, 1-1/4 Inch, Carbon/Ceramic/Buna | $293.70 | 11 in Stock | 1 | ||
| 19 | # 22080 | O-ring, size 012, Buna | $6.60 | 16 in Stock | 1 | ||
| 20 | # 22063-C | Shaft sleeve, Bronze, 1-1/4 Inch | $110.00 | 80 in Stock | 1 | ||
| 21 | # 09918 | Slinger washer | $6.60 | 2 in Stock | 1 | ||
