Burks Pump # T3104GA6-1-1/2 Parts Order page( Click Here for the Burks Pump # T3104GA6-1-1/2 Product Page ) |
|

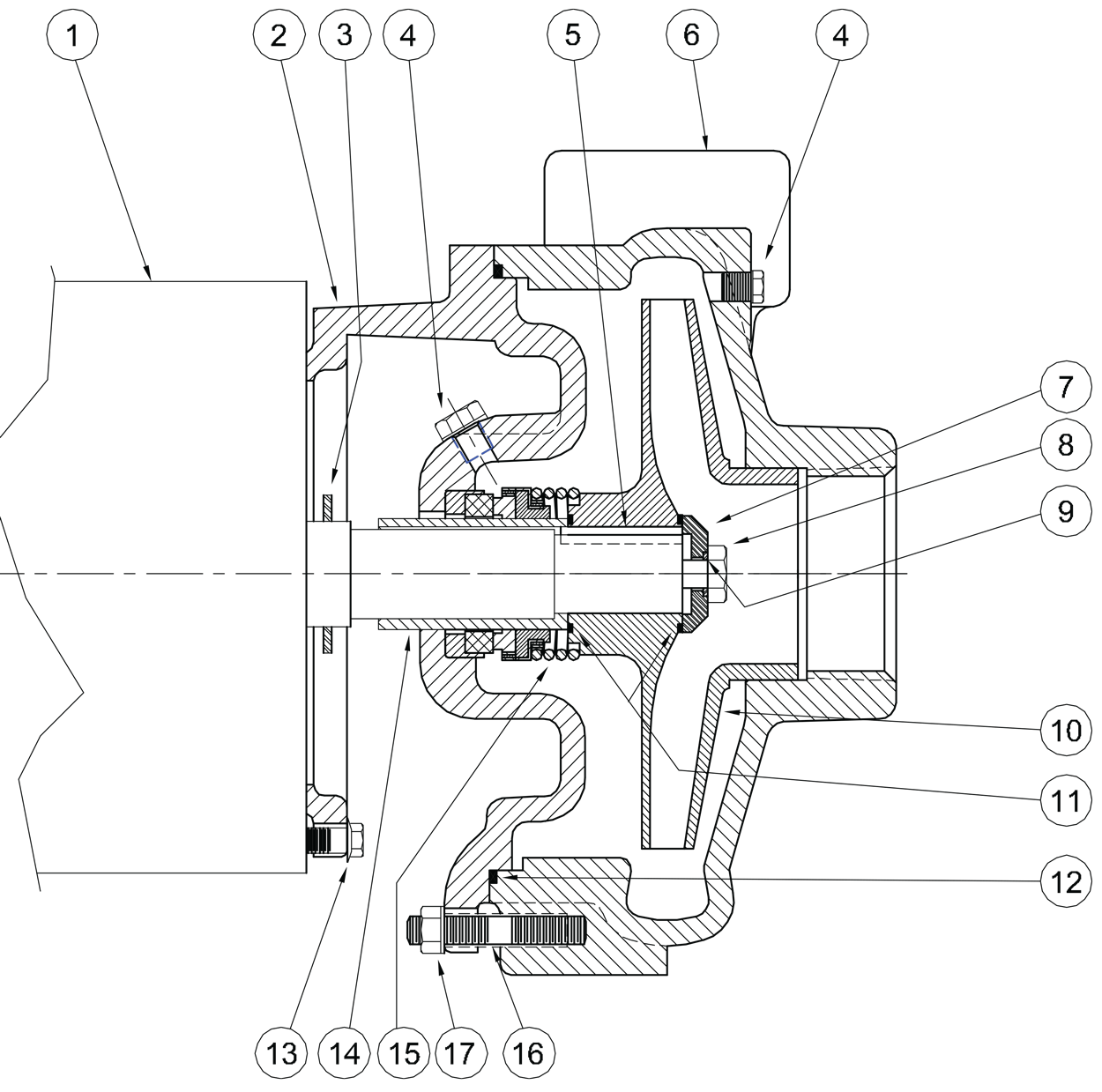

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # T3104GA6-1-1/2 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT1 | # SKGA6-9917-2-31003-166 | Seal kit, Buna: Carbon/Ceramic/Buna mechanical seal 09917 and Buna casing O-ring 2-31003-166 | $342.10 | 10 in Stock | 1 | ||
| KIT2 | # PEOGA6-1-1/2-6.00 | Complete pump end kit, everything but the motor. Does NOT include the motor. Includes the Burks wet end kit 21994-6.25 (full diameter bronze impeller, cast iron pump casing, slinger washer, pipe plugs and hardware), the impeller trimmed to 6.00 inch, the cast iron motor adapter 22002, and the standard Carbon/Ceramic/Buna mechanical seal and Buna O-rings. Complete replacement pump end, fits the existing 143JM to 184JM frame motor. | $2124.10 | 4 in Stock | 1 | ||
| 2 | # 22002 | Motor adapter, Cast Iron | $695.20 | 2 in Stock | 1 | ||
| 3 | # 09918 | Slinger washer | $6.60 | 2 in Stock | 1 | ||
| 4 | # 00158 | Pipe plug, 1/8 Inch | $6.60 | 2 in Stock | 2 | ||
| 5 | # 23014 | Impeller key, 3/16 Inch square x 1-1/2 Inch | $1.10 | 2 in Stock | 1 | ||
| 6 | # 23910-KIT | Casing, Cast Iron | $1306.80 | 2 in Stock | 1 | ||
| 7 | # 22105-C | Impeller washer, Bronze | $101.20 | 3 in Stock | 1 | ||
| 8 | # 1-529-1 | Impeller cap screw, 3/8-16 x 1 Inch, Stainless Steel | $6.60 | 2 in Stock | 1 | ||
| 9 | # 22080 | O-ring, size 012, Buna | $6.60 | 16 in Stock | 1 | ||
| 10 | # 09928-6.00 | Impeller, 6.00 Inch Diameter, Bronze | $2006.40 | 2 in Stock | 1 | ||
| 11 | # 22083 | O-ring, size 024, Buna | $4.40 | 29 in Stock | 2 | ||
| 12 | # 2-31003-166 | Casing O-ring, Buna | $48.40 | 10 in Stock | 1 | ||
| 13 | # 21236 | Cap screw, 3/8-16 x 1 Inch | $6.60 | 2 in Stock | 4 | ||
| 14 | # 22063-C | Shaft sleeve, Bronze | $110.00 | 80 in Stock | 1 | ||
| 15 | # 09917 | Mechanical seal, 1-1/4 Inch, Carbon/Ceramic/Buna | $293.70 | 11 in Stock | 1 | ||
| 16 | # 23905 | Stud, 3/8-16 x 1-3/4 Inch | $17.60 | 2 in Stock | 4 | ||
| 17 | # 23906 | Nut, 3/8-16 | $6.60 | 2 in Stock | 4 | ||
