Burks Pump # T3100G7A-2-AB-ME Parts Order page( Click Here for the Burks Pump # T3100G7A-2-AB-ME Product Page ) |
|

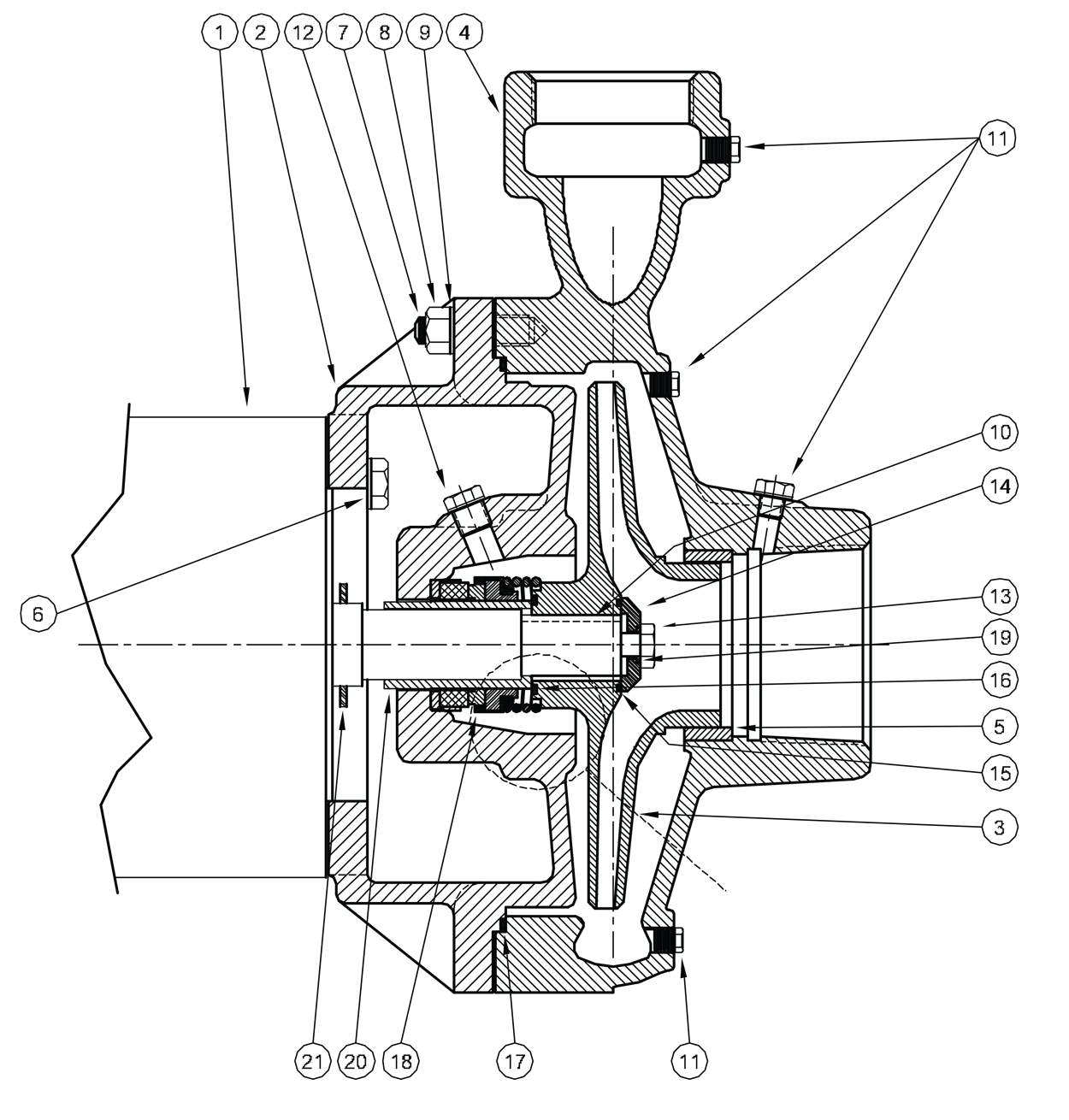

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # T3100G7A-2-AB-ME | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 3 | # 20421-6.63 | Impeller, Bronze 6.63 inch Diameter | $3207.60 | 2 in Stock | 1 | ||
| 5 | # 09915 | Wear Ring, Bronze | $137.50 | 7 in Stock | 1 | ||
| 7 | # 20424 | Stud | $6.60 | 8 in Stock | 8 | ||
| 8 | # 15-6-6 | Nut | $6.60 | 2 in Stock | 8 | ||
| 9 | # 20059 | Washer | $1730.30 | 2 in Stock | 8 | ||
| 10 | # 23014 | Key | $1.10 | 2 in Stock | 1 | ||
| 11 | # 01691-A | Pipe Plug, 1/8 inch, Brass | $6.60 | 2 in Stock | 6 | ||
| 12 | # 04236 | Pipe Plug, 1/4 inch, Bronze | $6.60 | 5 in Stock | 1 | ||
| 14 | # 22105-C | Washer, Bronze | $101.20 | 3 in Stock | 1 | ||
| 15 | # 22094 | O-Ring, EPT | $6.60 | 4 in Stock | 1 | ||
| 16 | # 22094 | O-Ring, EPT | $6.60 | 4 in Stock | 1 | ||
| 17 | # 23005 | O-Ring Gasket, EPDM | $68.20 | 4 in Stock | 1 | ||
| 19 | # 22093 | O-Ring Gasket, EPDM | $6.60 | 2 in Stock | 1 | ||
| 20 | # 22063-C | Shaft Sleeve, Bronze | $110.00 | 80 in Stock | 1 | ||
