Burks Pump # T10GA6-1-1/4-AB Parts Order page( Click Here for the Burks Pump # T10GA6-1-1/4-AB Product Page ) |
|

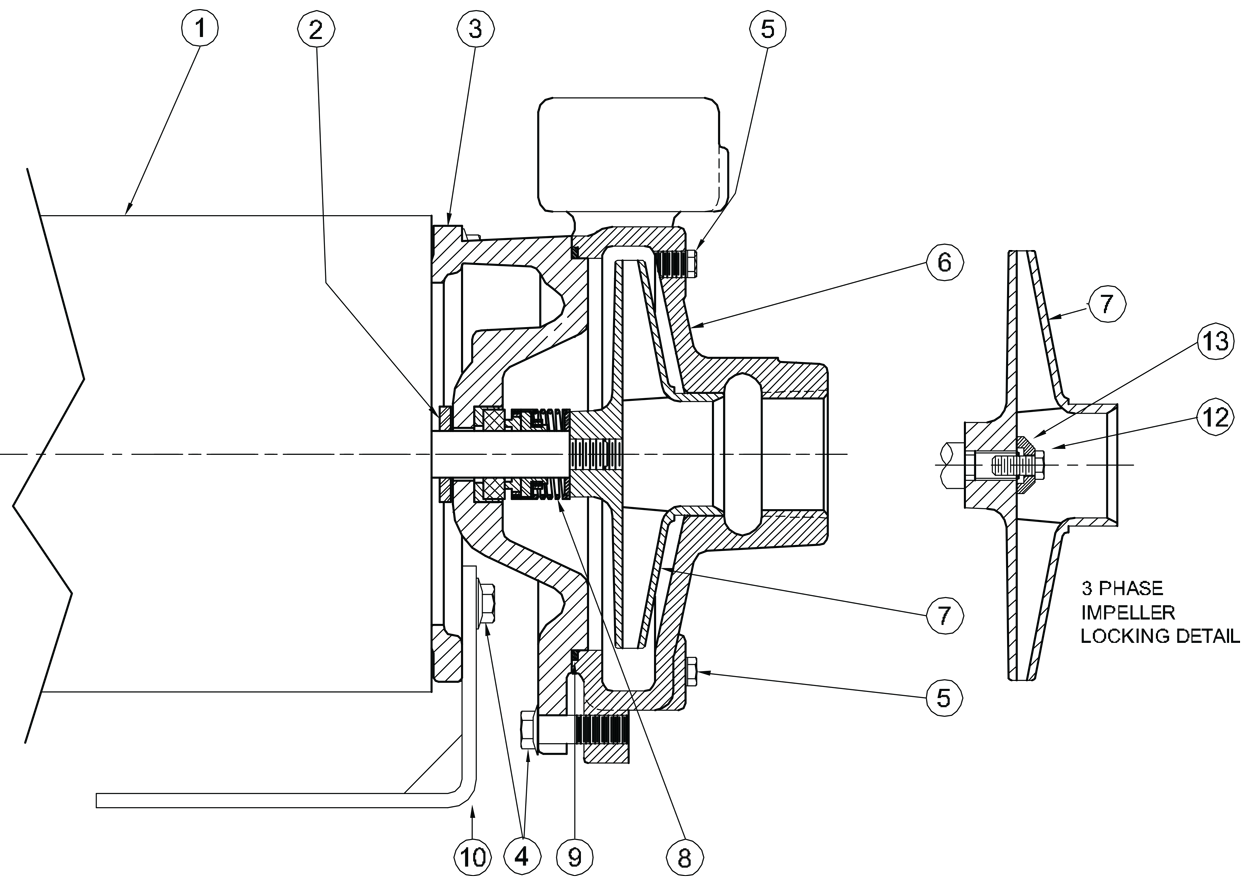

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # T10GA6-1-1/4-AB | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 08105 | Slinger Washer | $6.60 | 2 in Stock | 1 | ||
| 3 | # 22754-A | Adapter, pump to motor, Bronze | $2077.90 | 2 in Stock | 1 | ||
| 4 | # 21236 | Cap Screw | $6.60 | 2 in Stock | 8 | ||
| 5 | # 01691-A | Plug 1/8 inch, Bronze | $6.60 | 2 in Stock | 2 | ||
| 6 | # 22767-A | Casing, Volute, Bronze, with 1-1/2 Inch Inlet x 1-1/4 Inch Outlet Ports | $6157.80 | 2 in Stock | 1 | ||
| 7 | # 9680-3.75 | Impeller, Bronze 3.75 inch Diameter | $1149.50 | 2 in Stock | 1 | ||
| 8 | # 8514 | Seal, Buna-N/Carbon/Ceramic/Stainless Steel Mechanical Shaft Seal | $132.00 | 5 in Stock | 1 | ||
| 9 | # 22021 | O-Ring, Buna-N | $6.60 | 3 in Stock | 1 | ||
| 10 | # 22751 | Bracket | $125.40 | 2 in Stock | 1 | ||
| 12 | # 21182 | Machine Screw 1/4-28 UNFX x 1/2 inch | $6.60 | 7 in Stock | 1 | ||
| 13 | # 21181-C | Washer, Bronze | $42.90 | 3 in Stock | 1 | ||
