Burks Pump # T10GA4-1-1/2 Parts Order page( Click Here for the Burks Pump # T10GA4-1-1/2 Product Page ) |
|

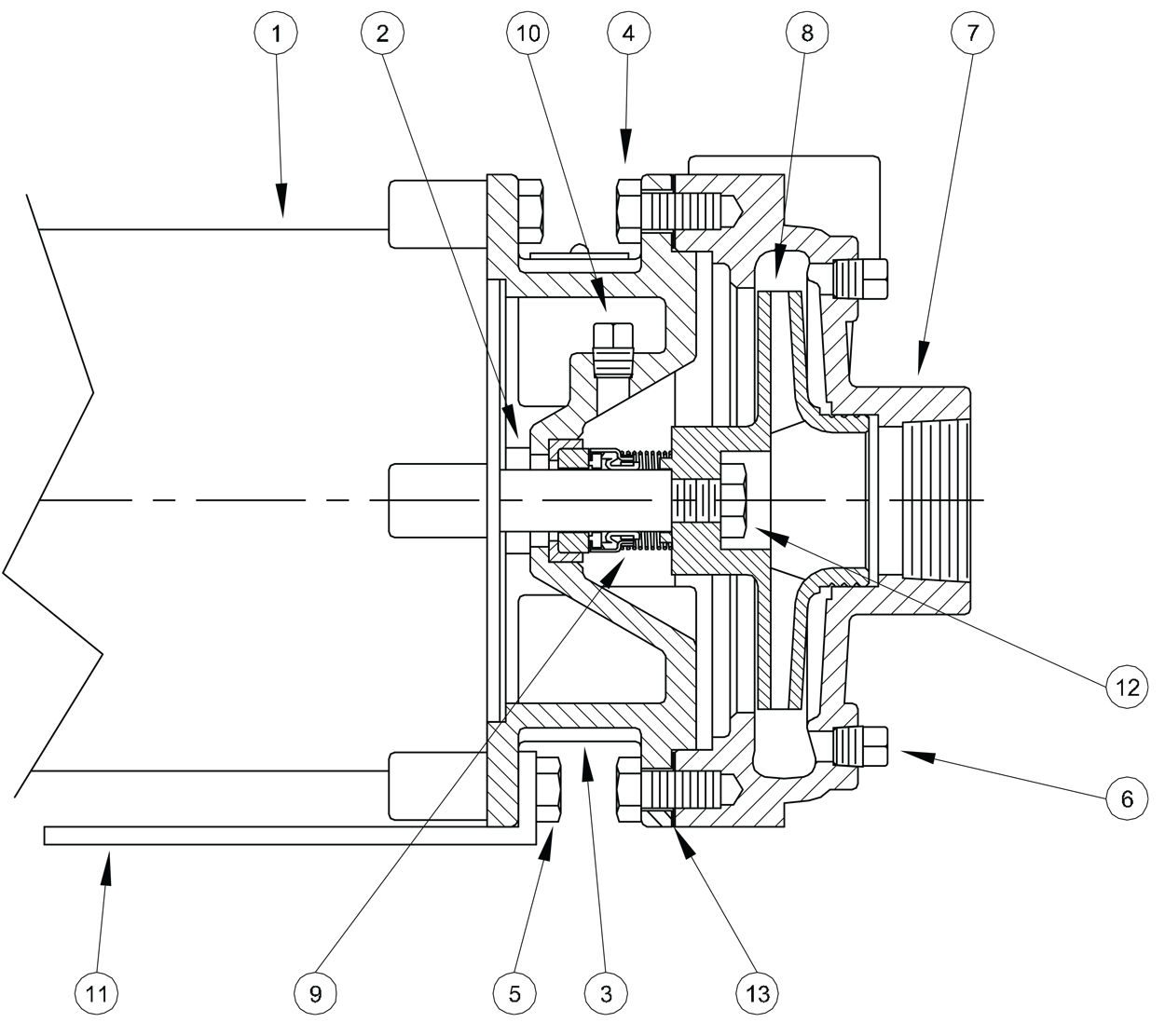

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # T10GA4-1-1/2 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT1 | # SKGA4-8514-115516 | Seal kit, Buna: Carbon/Ceramic/Buna mechanical seal 08514-C-P and Buna casing gasket 0115516 | $149.60 | 3 in Stock | 1 | ||
| 2 | # 08105 | Slinger washer | $6.60 | 2 in Stock | 1 | ||
| 3 | # 0115478 | Motor adapter, Cast Iron | $1038.40 | 2 in Stock | 1 | ||
| 4 | # 03122 | Cap screw, 3/8-16 x 3/4 Inch | $6.60 | 2 in Stock | 4 | ||
| 5 | # Q15-5-E26 | Cap screw, 3/8-16 x 7/8 Inch | $6.60 | 2 in Stock | 4 | ||
| 6 | # 00158 | Pipe plug, 1/8 Inch | $6.60 | 2 in Stock | 5 | ||
| 7 | # 0115494 | Casing, Cast Iron | $1941.50 | 2 in Stock | 1 | ||
| 8 | # 0115444-3.50 | Impeller, 3.50 Inch Diameter, Bronze | $1299.10 | 2 in Stock | 1 | ||
| 9 | # 08514-C-P | Mechanical seal, 5/8 Inch, Carbon/Ceramic/Buna | $132.00 | 5 in Stock | 1 | ||
| 11 | # 0115519 | Base, Steel | $206.80 | 2 in Stock | 1 | ||
| 12 | # 20459 | Jam nut, 7/16-20, Stainless Steel | $2.20 | 2 in Stock | 1 | ||
| 13 | # 0115516 | Casing gasket, Buna | $17.60 | 3 in Stock | 1 | ||
