Burks Pump # 37CT7MV-AB Parts Order page( Click Here for the Burks Pump # 37CT7MV-AB Product Page ) |
|

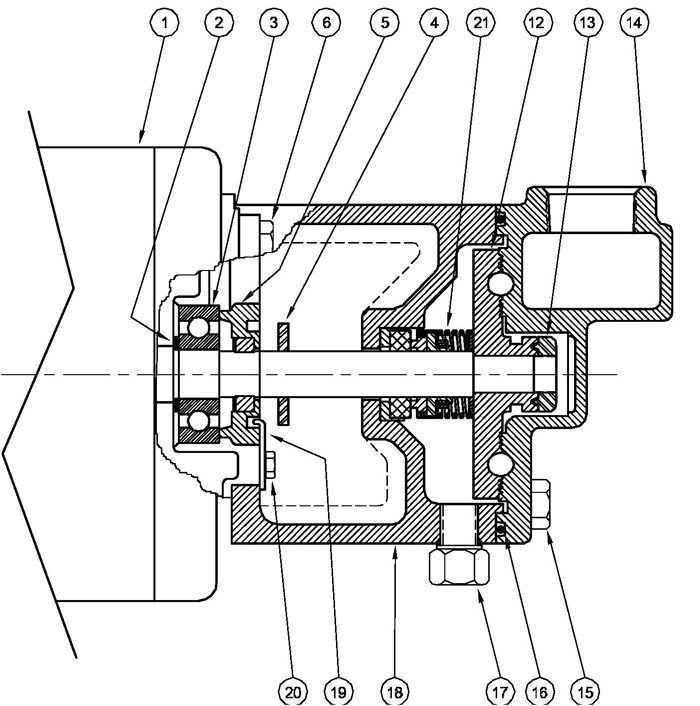

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # 37CT7MV-AB | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 09622 | Motor, 3/4 Horsepower, 208-230/460 Volts, 3 Phase, 3500 RPM, 60/50Hz, ODP Open Drip Proof | $1619.20 | 2 in Stock | 1 | ||
| 2 | # 02726 | Washer, Bearing Back Up | $16.50 | 2 in Stock | 1 | ||
| 3 | # 09164 | Ball Bearing, Pump End | $174.90 | 2 in Stock | 1 | ||
| 3 | # 08935 | Ball Bearing, Switch End (Not Shown) | $66.00 | 2 in Stock | 1 | ||
| 4 | # 08105 | Slinger | $6.60 | 2 in Stock | 1 | ||
| 5 | # 01332-B | Screw, Impeller Adjusting | $92.40 | 2 in Stock | 1 | ||
| 13 | # 02258 | Nut, Impeller Lock | $39.60 | 2 in Stock | 1 | ||
| 15 | # 03289 | Screw, 3/8-16 X 1 Inch Long | $6.60 | 2 in Stock | 4 | ||
| 16 | # 09699 | O-Ring Gasket, Viton | $95.70 | 3 in Stock | 1 | ||
| 17 | # 04236 | Plug, 1/4-18 NPT | $6.60 | 5 in Stock | 1 | ||
| 18 | # 09521-A | Frame, Adapter, Bronze | $1365.10 | 2 in Stock | 1 | ||
| 19 | # 07576 | Adjusting Screw Lock | $6.60 | 2 in Stock | 1 | ||
| 20 | # 07577 | Screw, #10 X 3/4 Inch Long | $6.60 | 2 in Stock | 1 | ||
| KIT | # 20158-7-MV | Repair Kit for all Ct7mv Series Pumps with Viton Seal, comes with the Impeller, Raceway, Viton Shaft Seal, Viton O-Ring Gasket, Impeller Locknut, and Instructions. | $1852.40 | 2 in Stock | 1 | ||
