Burks Pump # 3504G9-4F Parts Order page( Click Here for the Burks Pump # 3504G9-4F Product Page ) |
|

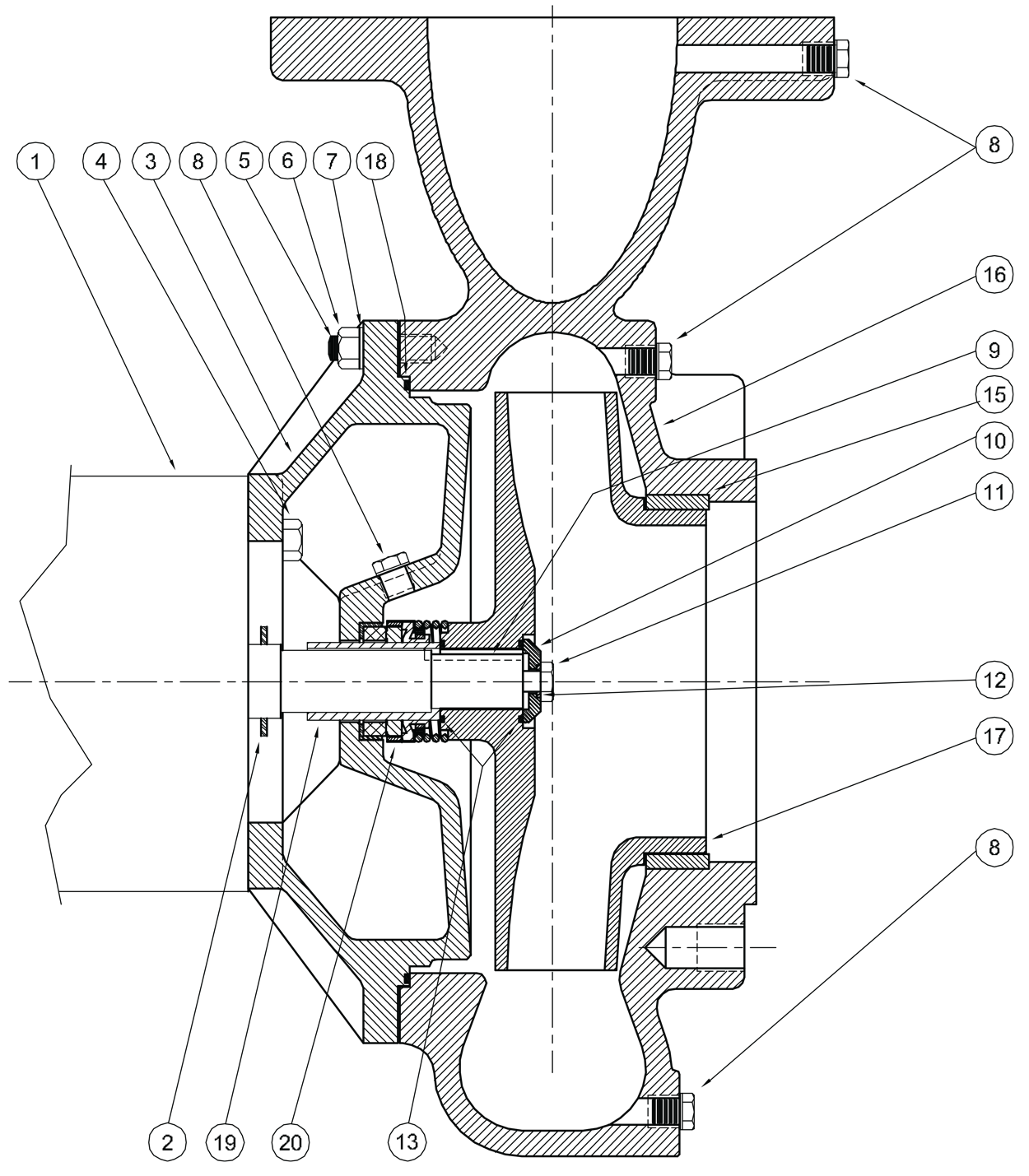

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # 3504G9-4F | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 09918 | Slinger Washer | $6.60 | 2 in Stock | 1 | ||
| 9 | # 23014 | Key, 3/16 Sq X 1-1/2 Inch Long | $1.10 | 2 in Stock | 1 | ||
| 10 | # 22105-C | Washer, Bronze | $101.20 | 3 in Stock | 1 | ||
| 11 | # 1-529-1 | Cap Screw, Stainless Steel - 3/8-16 x 1 inch Long | $6.60 | 2 in Stock | 1 | ||
| 12 | # 2-31005-012 | O-Ring, Buna-N | $16.50 | 4 in Stock | 1 | ||
| 13 | # 22083 | O-Ring, Buna-N | $4.40 | 29 in Stock | 1 | ||
| 19 | # 22063-C | Shaft Sleeve, Bronze | $110.00 | 80 in Stock | 1 | ||
| 20 | # 09917 | Seal, Buna-N/Carbon/Ceramic/Stainless Steel Mechanical Seal Mechanical Shaft Seal | $293.70 | 11 in Stock | 1 | ||
