Burks Pump # 330G6-1-1/4 Parts Order page( Click Here for the Burks Pump # 330G6-1-1/4 Product Page ) |
|

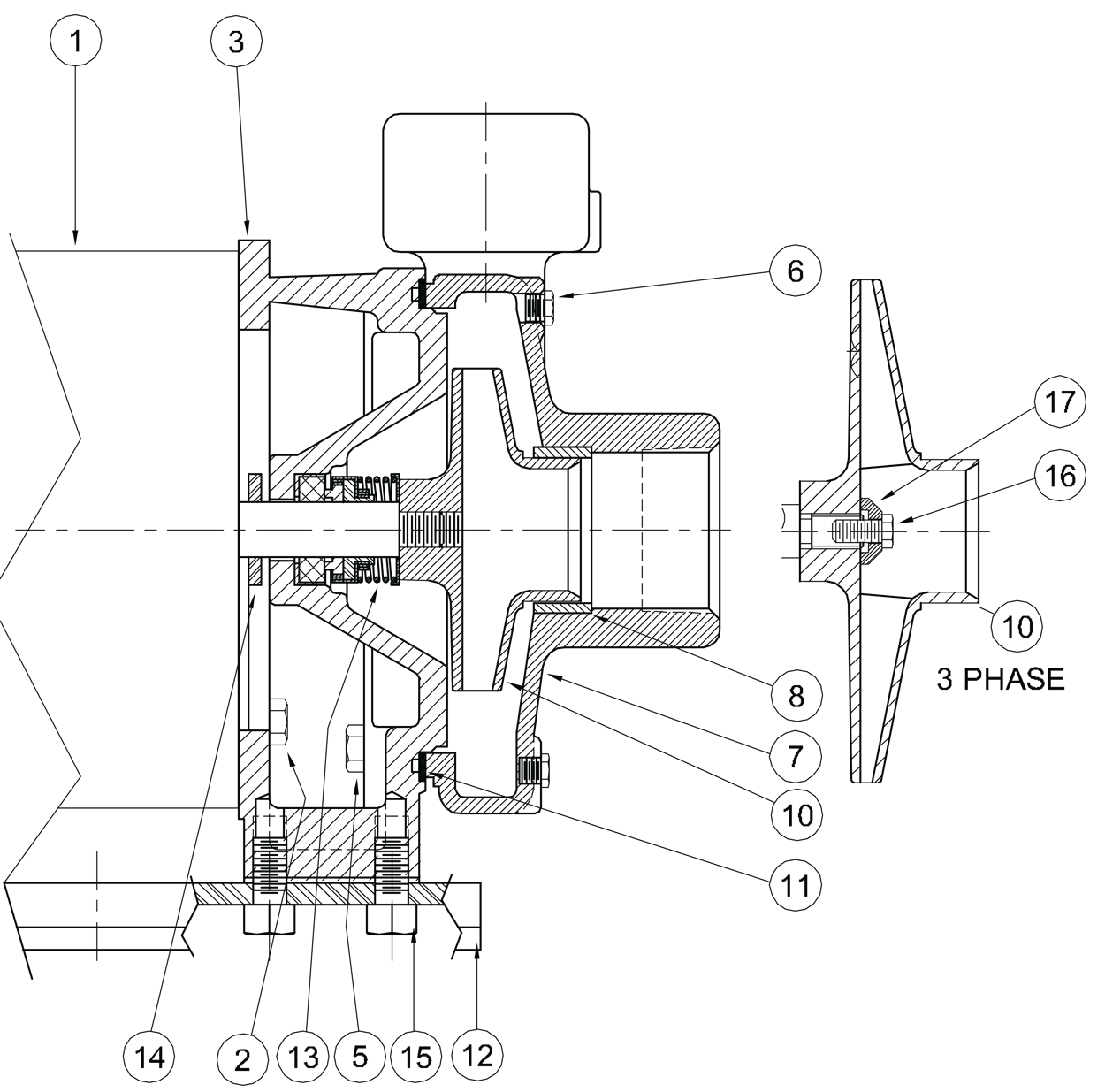

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # 330G6-1-1/4 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT1 | # SKG5-8514-22021 | Seal kit, Buna, for the G5 Series G6-1-1/4 size: Carbon/Ceramic/Buna mechanical seal 08514-C-P and Buna casing o-ring 22021 | $138.60 | 2 in Stock | 1 | ||
| KIT2 | # PEOG6-1-1/4-5.66 | Complete pump end kit, everything but the motor. Does NOT include the motor. Includes the Burks wet end kit 21968-5.66 (full diameter bronze impeller, cast iron pump casing, bronze casing wear ring, slinger washer, pipe plugs and hardware), the 5.66 inch full diameter impeller, the cast iron motor adapter 09657, and the standard Carbon/Ceramic/Buna mechanical seal and Buna casing o-ring. Complete replacement pump end, fits the existing 56J frame motor. | $1658.80 | 4 in Stock | 1 | ||
| 2 | # 03122 | Cap screw, 3/8-16 x 3/4 Inch | $6.60 | 2 in Stock | 4 | ||
| 3 | # 09657 | Motor adapter, Cast Iron, G6-1-1/4 size | $678.70 | 2 in Stock | 1 | ||
| 5 | # 04235 | Cap screw, 3/8-16 x 1-1/4 Inch long | $6.60 | 2 in Stock | 4 | ||
| 6 | # 01691-A | Pipe plug, 1/8 Inch, Brass | $6.60 | 2 in Stock | 5 | ||
| 7 | # 22149-KIT | Casing assembly, Cast Iron, G6-1-1/4 size, includes the pipe plugs and wear ring | $927.30 | 2 in Stock | 1 | ||
| 8 | # 09632-D | Casing wear ring, Aluminum Bronze | $228.80 | 2 in Stock | 1 | ||
| 10 | # 09680-5.66 | Impeller, 5.66 Inch Diameter, Bronze | $1149.50 | 2 in Stock | 1 | ||
| 11 | # 08507 | Casing gasket, flat, G6-1-1/4 size (the pump has either a flat gasket or an o-ring, when in doubt order the flat gasket) | $41.80 | 2 in Stock | 1 | ||
| 11 | # 22021 | Casing o-ring, Buna, G6-1-1/4 size | $6.60 | 3 in Stock | 1 | ||
| 12 | # 08827 | Base, 5 x 8 Inch | $125.40 | 2 in Stock | 1 | ||
| 13 | # 08514-C-P | Mechanical seal, 5/8 Inch, Carbon/Ceramic/Buna | $132.00 | 2 in Stock | 1 | ||
| 14 | # 08105 | Slinger washer | $6.60 | 2 in Stock | 1 | ||
| 15 | # 01928 | Cap screw, 3/8-16 x 1 Inch, with washer 03503 | $6.60 | 2 in Stock | 2 | ||
| 16 | # 21182 | Screw, 1/4-28 x 1/2 Inch, Stainless Steel | $6.60 | 7 in Stock | 1 | ||
| 17 | # 21181-C | Washer, Aluminum Bronze | $42.90 | 3 in Stock | 1 | ||
