Burks Pump # 3300G7-2-1/2 Parts Order page( Click Here for the Burks Pump # 3300G7-2-1/2 Product Page ) |
|

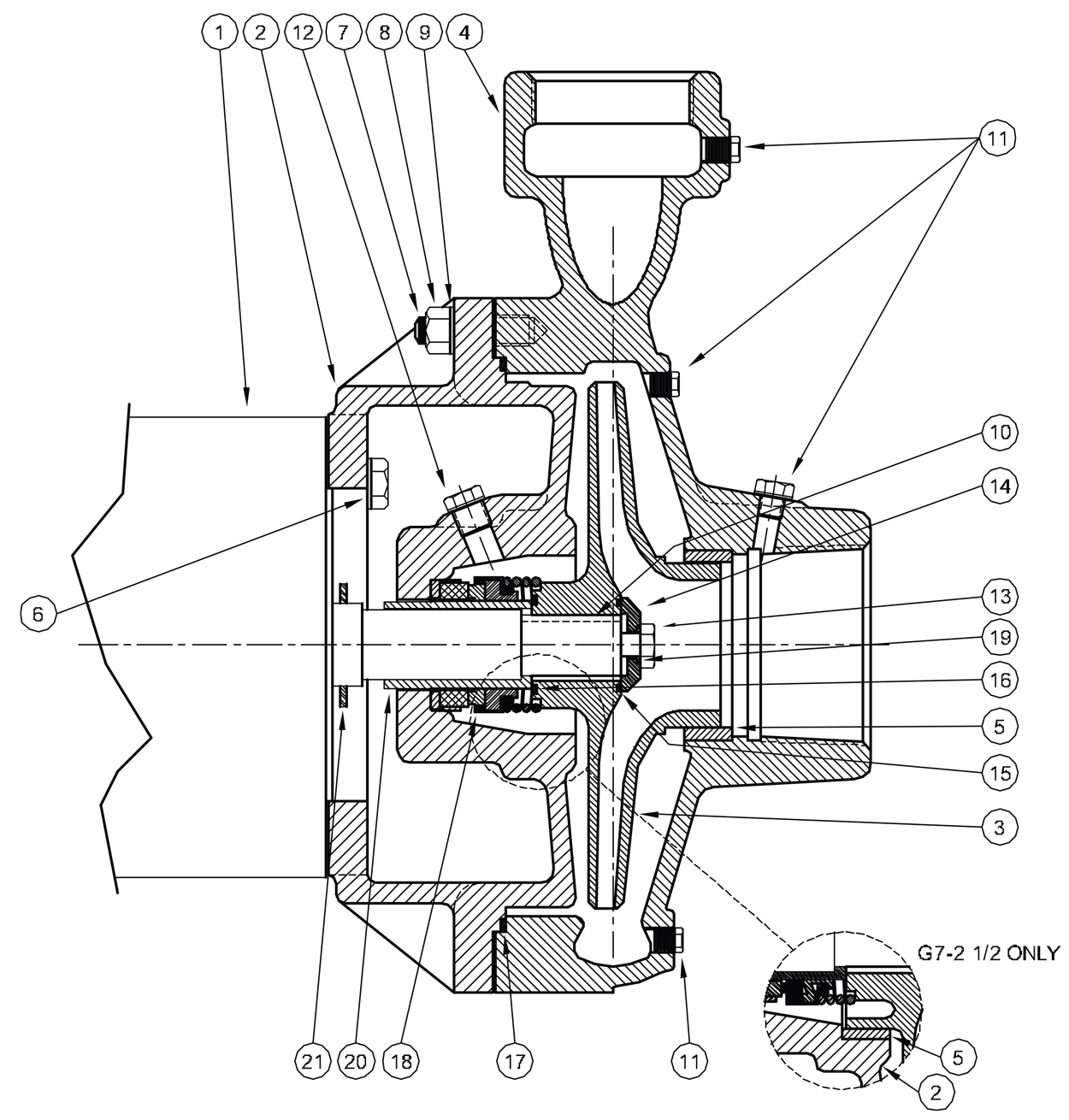

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # 3300G7-2-1/2 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT2 | # PEOG7-2-1/2-284-7.56 | Complete pump end kit, everything but the motor. Does NOT include the motor. Includes the Burks wet end kit 22541-7.56 (full diameter bronze impeller, cast iron pump casing with bronze wear ring, slinger washer, pipe plugs and hardware), the 7.56 inch full diameter impeller, the cast iron motor adapter 21310, and the standard Carbon/Ceramic/Buna mechanical seal and Buna O-rings. Complete replacement pump end, fits the existing 284JM to 286JM frame motor. | $6835.40 | 2 in Stock | 1 | ||
| 2 | # 21310 | Motor adapter assembly, Cast Iron, 284JM to 286JM frame, includes the wear ring | $8341.30 | 2 in Stock | 1 | ||
| 3 | # 21087-7.56 | Impeller, 7.56 Inch Diameter, Bronze | $4142.60 | 2 in Stock | 1 | ||
| 5 | # 20680 | Casing wear ring, Bronze | $211.20 | 2 in Stock | 2 | ||
| 7 | # 20424 | Casing stud, Stainless Steel, 1/2-13 x 2 Inch | $6.60 | 8 in Stock | 8 | ||
| 8 | # 15-6-6 | Casing nut, 1/2-13 | $6.60 | 2 in Stock | 8 | ||
| 9 | # 20059 | Casing washer | $1730.30 | 2 in Stock | 8 | ||
| 10 | # 22107 | Impeller key, 1/4 Inch square x 2-1/4 Inch | $46.20 | 2 in Stock | 1 | ||
| 11 | # 01691-A | Pipe plug, 1/8 Inch, Bronze | $6.60 | 2 in Stock | 6 | ||
| 12 | # 04236 | Pipe plug, 1/4 Inch, Bronze | $6.60 | 5 in Stock | 1 | ||
| 14 | # 22106 | Impeller washer, Bronze | $124.30 | 2 in Stock | 1 | ||
| 15 | # 22140 | O-ring, size 030, Buna | $6.60 | 2 in Stock | 1 | ||
| 16 | # 22089 | O-ring, Buna | $6.60 | 2 in Stock | 1 | ||
| 18 | # 21136 | Mechanical seal, 1-5/8 Inch, Carbon/Ceramic/Buna | $553.30 | 5 in Stock | 1 | ||
| 19 | # 22086 | O-ring, size 014, Buna | $6.60 | 2 in Stock | 1 | ||
| 20 | # 22066 | Shaft sleeve, Bronze, 1-5/8 Inch | $211.20 | 2 in Stock | 1 | ||
| 21 | # 21093 | Slinger washer | $20.90 | 2 in Stock | 1 | ||
