Burks Pump # 320G6-2 Parts Order page( Click Here for the Burks Pump # 320G6-2 Product Page ) |
|

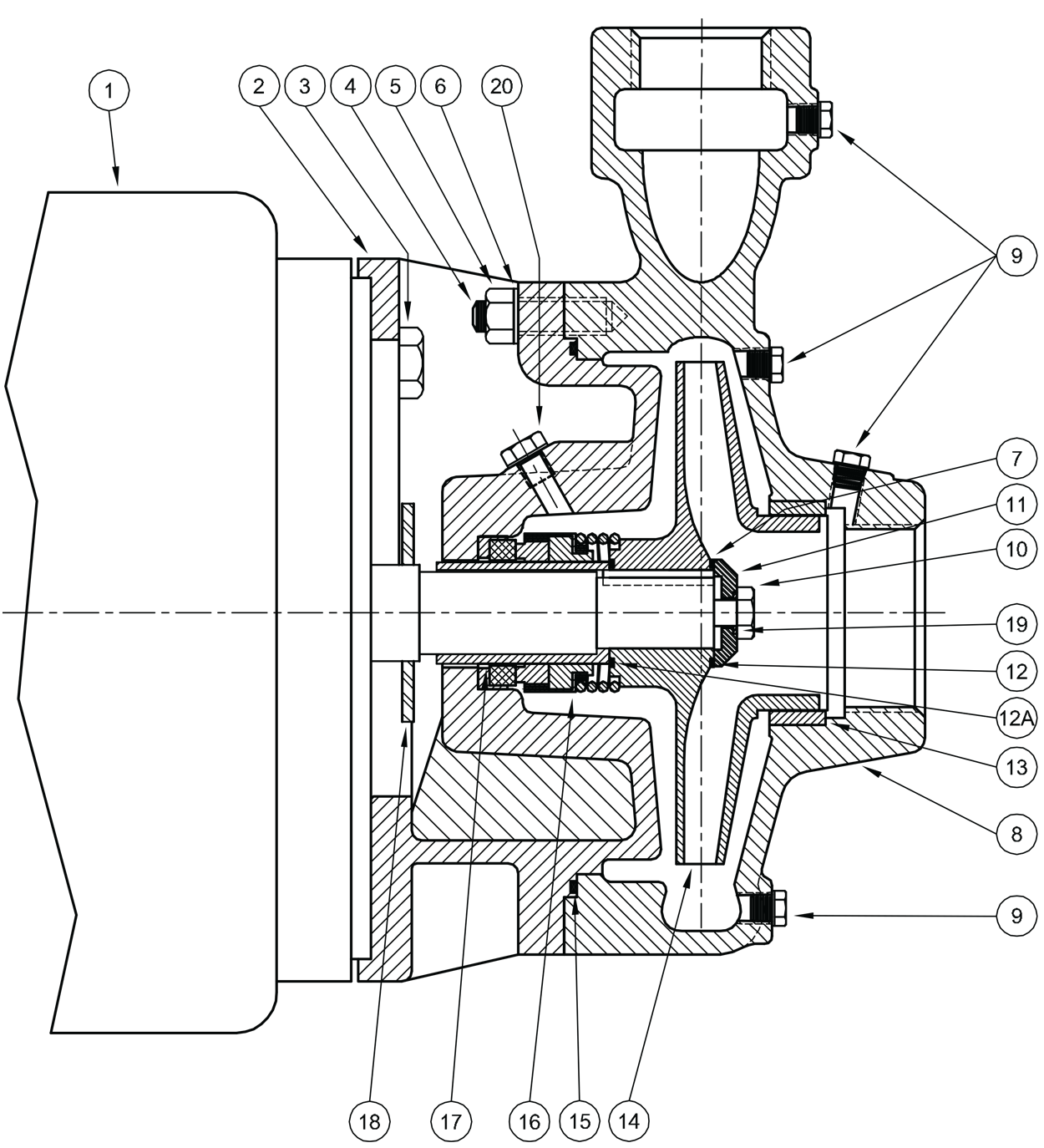

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # 320G6-2 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT1 | # SKG6-9917-22099 | Seal kit, Buna: Carbon/Ceramic/Buna mechanical seal 09917 and Buna casing O-ring 22099 | $300.30 | 5 in Stock | 1 | ||
| KIT2 | # PEOG6-2-4.13 | Complete pump end kit, everything but the motor. Does NOT include the motor. Includes the Burks wet end kit 21974-6.25 (full diameter bronze impeller, cast iron pump casing with bronze wear ring, slinger washer, pipe plugs and hardware), the impeller trimmed to 4.13 inch, the cast iron motor adapter 09912, and the standard Carbon/Ceramic/Buna mechanical seal and Buna O-rings. Complete replacement pump end, fits the existing 143JM to 184JM frame motor. | $2872.10 | 3 in Stock | 1 | ||
| 2 | # 09912 | Motor adapter, Cast Iron, 143JM to 184JM frame | $1277.10 | 2 in Stock | 1 | ||
| 3 | # 01928 | Adapter cap screw, 3/8-16 x 1 Inch | $6.60 | 2 in Stock | 4 | ||
| 4 | # 03075 | Casing stud | $18.70 | 2 in Stock | 8 | ||
| 5 | # 15-23-6 | Casing nut | $6.60 | 2 in Stock | 8 | ||
| 6 | # 01609-A | Casing washer | $6.60 | 2 in Stock | 8 | ||
| 7 | # 23014 | Impeller key, 3/16 Inch square x 1-1/2 Inch | $1.10 | 2 in Stock | 1 | ||
| 8 | # 22151-KIT | Casing assembly, Cast Iron (with studs, pipe plugs and wear ring) | $794.20 | 2 in Stock | 1 | ||
| 9 | # 01691-A | Pipe plug, 1/8 Inch, Bronze | $6.60 | 2 in Stock | 6 | ||
| 10 | # 1-529-1 | Impeller cap screw, 3/8-16 x 1 Inch, Stainless Steel | $6.60 | 2 in Stock | 1 | ||
| 11 | # 22105-C | Impeller washer, Bronze | $101.20 | 3 in Stock | 1 | ||
| 12 | # 22083 | O-ring, size 024, Buna | $4.40 | 29 in Stock | 2 | ||
| 13 | # 09923-E | Casing wear ring, Bronze | $174.90 | 2 in Stock | 1 | ||
| 14 | # 09929-4.13 | Impeller, 4.13 Inch Diameter, Bronze | $2118.60 | 2 in Stock | 1 | ||
| 15 | # 22099 | Casing O-ring, Buna | $6.60 | 5 in Stock | 1 | ||
| 16 | # 09917 | Mechanical seal, 1-1/4 Inch, Carbon/Ceramic/Buna | $293.70 | 11 in Stock | 1 | ||
| 17 | # 22063-C | Shaft sleeve, Bronze | $110.00 | 80 in Stock | 1 | ||
| 18 | # 09918 | Slinger washer | $6.60 | 2 in Stock | 1 | ||
| 19 | # 22080 | O-ring, size 012, Buna | $6.60 | 16 in Stock | 1 | ||
| 20 | # 04236 | Pipe plug, 1/4 Inch, Bronze | $6.60 | 5 in Stock | 1 | ||
