Burks Pump # 3200G7-2-1/2 Parts Order page( Click Here for the Burks Pump # 3200G7-2-1/2 Product Page ) |
|

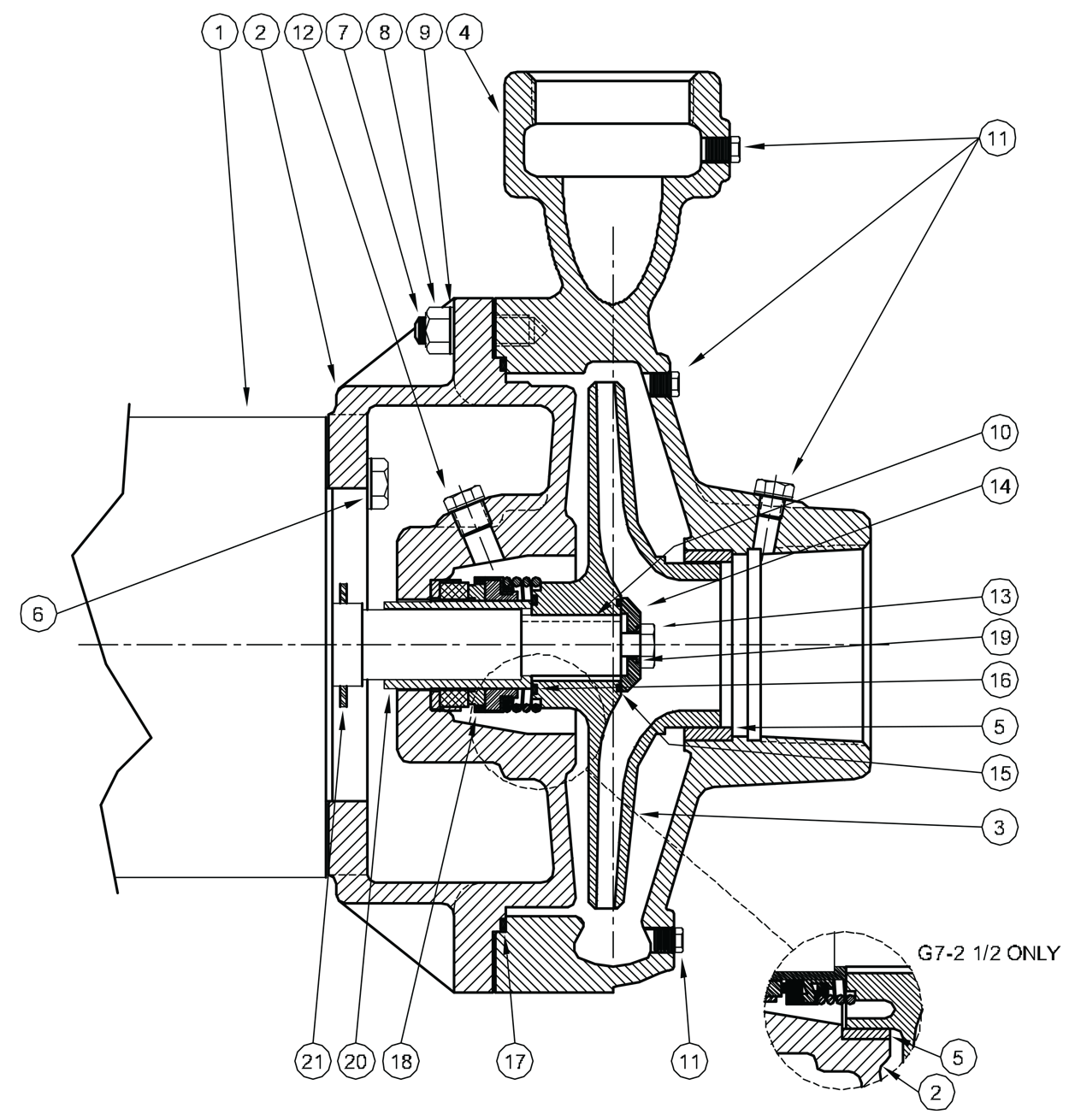

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # 3200G7-2-1/2 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| KIT2 | # PEOG7-2-1/2-254-6.75 | Complete pump end kit, everything but the motor. Does NOT include the motor. Includes the Burks wet end kit 22537-7.56 (full diameter bronze impeller, cast iron pump casing with bronze wear ring, slinger washer, pipe plugs and hardware), the impeller trimmed to 6.75 inch, the cast iron motor adapter 21086, and the standard Carbon/Ceramic/Buna mechanical seal and Buna O-rings. Complete replacement pump end, fits the existing 254JM to 256JM frame motor. | $6058.80 | 2 in Stock | 1 | ||
| 2 | # 21086 | Motor adapter assembly, Cast Iron, 254JM to 256JM frame, includes the wear ring | $3248.30 | 2 in Stock | 1 | ||
| 3 | # 21087-6.75 | Impeller, 6.75 Inch Diameter, Bronze | $4142.60 | 2 in Stock | 1 | ||
| 5 | # 20680 | Casing wear ring, Bronze | $211.20 | 2 in Stock | 2 | ||
| 6 | # 1-68-6 | Adapter cap screw, 1/2-13 x 1-1/4 Inch | $6.60 | 2 in Stock | 4 | ||
| 7 | # 20424 | Casing stud, Stainless Steel, 1/2-13 x 2 Inch | $6.60 | 8 in Stock | 8 | ||
| 8 | # 15-6-6 | Casing nut, 1/2-13 | $6.60 | 2 in Stock | 8 | ||
| 9 | # 20059 | Casing washer | $1730.30 | 2 in Stock | 8 | ||
| 10 | # 22107 | Impeller key, 1/4 Inch square x 2-1/4 Inch | $46.20 | 2 in Stock | 1 | ||
| 11 | # 01691-A | Pipe plug, 1/8 Inch, Bronze | $6.60 | 2 in Stock | 6 | ||
| 12 | # 04236 | Pipe plug, 1/4 Inch, Bronze | $6.60 | 5 in Stock | 1 | ||
| 14 | # 22106 | Impeller washer, Bronze | $124.30 | 2 in Stock | 1 | ||
| 15 | # 22140 | O-ring, size 030, Buna | $6.60 | 2 in Stock | 1 | ||
| 16 | # 22089 | O-ring, Buna | $6.60 | 2 in Stock | 1 | ||
| 18 | # 21136 | Mechanical seal, 1-5/8 Inch, Carbon/Ceramic/Buna | $553.30 | 5 in Stock | 1 | ||
| 19 | # 22086 | O-ring, size 014, Buna | $6.60 | 2 in Stock | 1 | ||
| 20 | # 22066 | Shaft sleeve, Bronze, 1-5/8 Inch | $211.20 | 2 in Stock | 1 | ||
| 21 | # 21093 | Slinger washer | $20.90 | 2 in Stock | 1 | ||
