Burks Pump # 315GA6-1-1/2-AB-ME Parts Order page( Click Here for the Burks Pump # 315GA6-1-1/2-AB-ME Product Page ) |
|

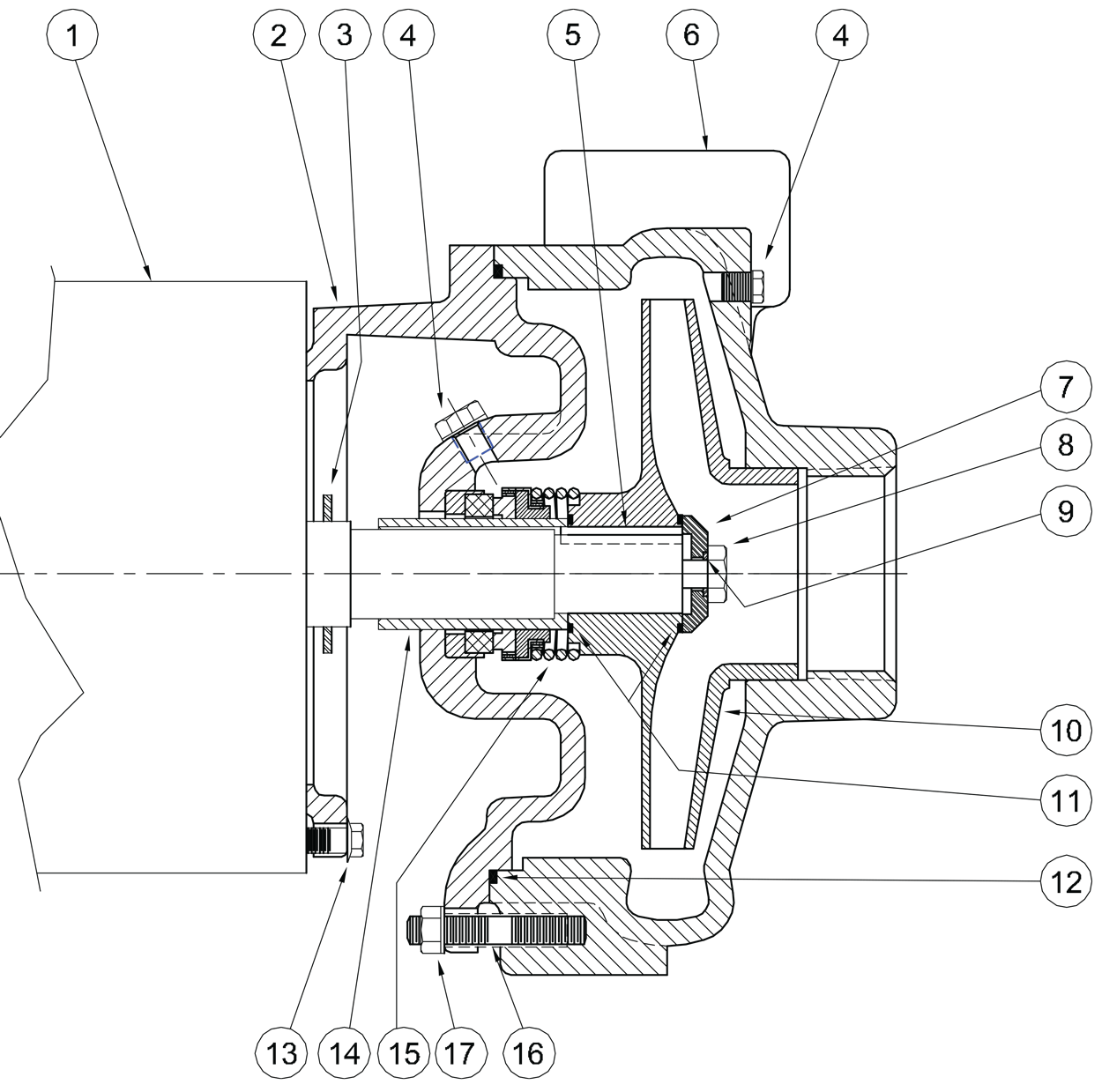

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Burks Pump model # 315GA6-1-1/2-AB-ME | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 22002-A | Adapter, pump to motor, Bronze | $4176.70 | 2 in Stock | 1 | ||
| 3 | # 09918 | Slinger Washer | $6.60 | 2 in Stock | 1 | ||
| 4 | # 01691-A | Pipe Plug, 1/8 inch, Bronze | $6.60 | 2 in Stock | 2 | ||
| 5 | # 23014 | Key | $1.10 | 2 in Stock | 1 | ||
| 7 | # 22105-C | Washer, Bronze | $101.20 | 3 in Stock | 1 | ||
| 8 | # 03289 | Cap Screw, Bronze | $59.40 | 2 in Stock | 1 | ||
| 9 | # 22093 | O-Ring Gasket, EPDM | $6.60 | 2 in Stock | 1 | ||
| 10 | # 09928-4.00 | Impeller, Bronze 4.00 inch Diameter | $2006.40 | 2 in Stock | 1 | ||
| 11 | # 22094 | O-Ring Gasket, EPDM | $6.60 | 4 in Stock | 2 | ||
| 12 | # 22098 | O-Ring Gasket, EPDM | $46.20 | 3 in Stock | 1 | ||
| 13 | # 21236 | Cap Screw | $6.60 | 2 in Stock | 4 | ||
| 14 | # 22063-C | Shaft Sleeve, Bronze | $110.00 | 80 in Stock | 1 | ||
| 16 | # 23905 | Stud | $17.60 | 2 in Stock | 4 | ||
| 17 | # 23906 | Nut | $6.60 | 2 in Stock | 4 | ||
