Berkeley Pump model B76253 Parts |
|

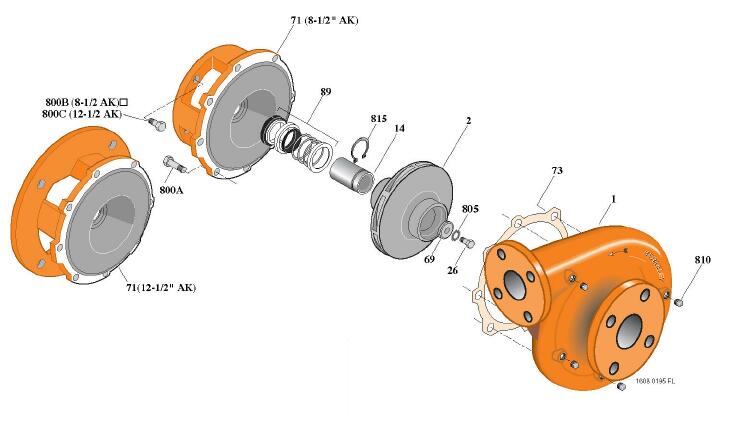

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Berkeley Pump model # B76253 | |||||||
| Key | SKU | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | H05543 | Case, Volute | $2552.55 | 0 in Stock | 1 | ||
| 2 | M07667 | Impeller, 8.62 Diameter, for 25 HP / 3 phase pumps. | $1636.25 | 0 in Stock | 1 | ||
| 26 | S23619 | Screw, Impeller 1/2 - 13 x 1 | $17.48 | 1 in Stock | 1 | ||
| 32 | S23677 | Key, 1/4x2-1/4 (See Note) | $26.35 | 1 in Stock | 1 | ||
| 69 | S06319 | Washer, Impeller | $125.80 | 1 in Stock | 1 | ||
| 71 | L04615 | Bracket | $3066.80 | 0 in Stock | 1 | ||
| 73 | S05126 | Gasket, Volute | $36.55 | 2 in Stock | 1 | ||
| 89 | S32015 | Seal, Mechanical Shaft | $577.15 | 2 in Stock | 1 | ||
| 800A | S26826 | Capscrew, 3/8 - 16 x 1 (8 Req.) | $9.93 | 1 in Stock | 8 | ||
| 800B | S26912 | Capscrew, 1/2 - 13 x 1 (4 Req.) (For 8-1/2 AK) | $10.02 | 1 in Stock | 1 | ||
| 800B | S26997 | Capscrew, 5/8- 11 x 1-1/4 (4 Req.) (For 12-1/2 AK) | $13.99 | 1 in Stock | 1 | ||
| 805 | S23038 | Washer, Lock | $7.18 | 1 in Stock | 1 | ||
| 815 | S16767 | Ring, Retaining | $94.35 | 10 in Stock | 1 | ||
