Berkeley Pump model B74859 Parts |
|

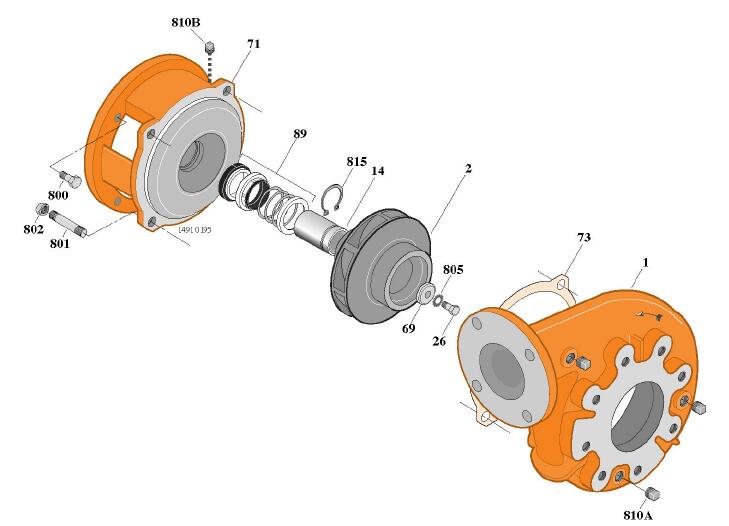

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Berkeley Pump model # B74859 | |||||||
| Key | SKU | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | H05129 | Case, Volute | $1693.20 | 0 in Stock | 1 | ||
| 2 | L08187 | Impeller, 6.50 Diameter, for 20 HP / 3 phase pumps. | $1936.30 | 0 in Stock | 1 | ||
| 26 | S23619 | Screw, Impeller 1/2 - 13 x 1 | $17.48 | 1 in Stock | 1 | ||
| 32 | S23677 | Key, 1/4x2-1/4 (See Note) | $26.35 | 1 in Stock | 1 | ||
| 69 | S06319 | Washer, Impeller | $125.80 | 1 in Stock | 1 | ||
| 71 | L05779 | Bracket | $1031.90 | 1 in Stock | 1 | ||
| 73 | S04757 | Gasket, Volute | $32.30 | 2 in Stock | 1 | ||
| 89 | S32015 | Seal, Mechanical Shaft | $577.15 | 2 in Stock | 1 | ||
| 800 | S26912 | Capscrew, 1/2 - 13 x 1 (4 Req.) | $10.02 | 1 in Stock | 4 | ||
| 801 | S24043 | Stud, 1/2- 13x1-1/2 (4 Req.) | $21.22 | 1 in Stock | 4 | ||
| 805 | S23038 | Washer, Lock | $7.18 | 1 in Stock | 1 | ||
| 810B | S23714 | Plug, Pipe 1/8 NPT (In Bracket) | $13.86 | 1 in Stock | 1 | ||
| 815 | S16767 | Ring, Retaining | $94.35 | 10 in Stock | 1 | ||
