Berkeley Pump model B74596 Parts |
|

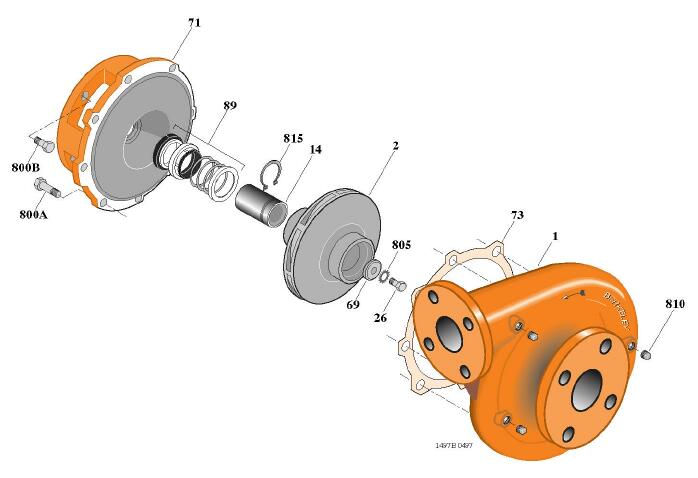

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Berkeley Pump model # B74596 | |||||||
| Key | SKU | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | H05534 | Case, Volute | $2861.10 | 0 in Stock | 1 | ||
| 14 | S19310L | Sleeve, Shaft | $136.00 | 1 in Stock | 1 | ||
| 32 | S34383 | Key, 3/16x1-1/4 (See Note) | $21.22 | 1 in Stock | 1 | ||
| 69 | S06314 | Washer, Impeller | $70.55 | 1 in Stock | 1 | ||
| 71 | L05332 | Bracket | $837.25 | 1 in Stock | 1 | ||
| 73 | S05126 | Gasket, Volute | $36.55 | 2 in Stock | 1 | ||
| 89 | S32014 | Seal, Mechanical Shaft | $277.95 | 2 in Stock | 1 | ||
| 800A | S26825 | Capscrew, 3/8 - 16 x 7/8 (8 Req.) | $10.02 | 1 in Stock | 8 | ||
| S0OB | S26826 | Capscrew, 3/8 - 16 x 1 (4 Req.) | $9.93 | 1 in Stock | 4 | ||
| 805 | S23036 | Washer, Lock | $10.02 | 1 in Stock | 1 | ||
| 815 | S11207 | Ring, Retaining | $41.65 | 10 in Stock | 1 | ||
| S23714 | Plug, Pipe 1/8 NPT (In Bracket) | $13.86 | 1 in Stock | 1 | |||
