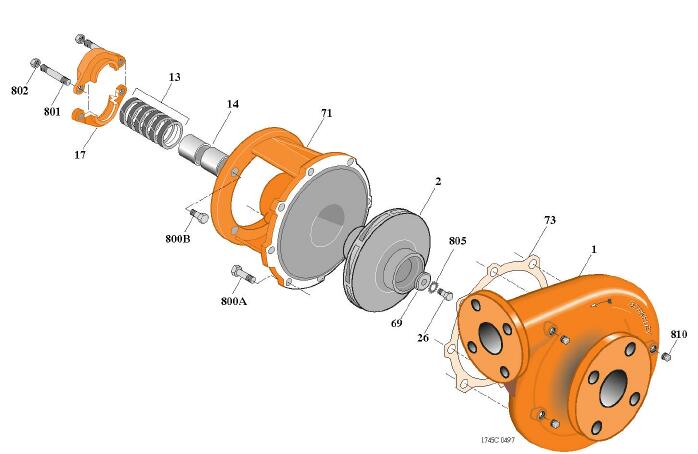

Berkeley Pump model B74590 Parts |
|
Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Berkeley Pump model # B74590 | |||||||
| Key | SKU | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | H05534 | Case, Volute | $2861.10 | 0 in Stock | 1 is Req'd | ||
| 13 | S15094 | Rings, Packing (Set of 7) | $249.05 | 10 in Stock | 1 is Req'd | ||
| 32 | S34383 | Key, 3/16x1-1/4 (See Note) | $21.22 | 1 in Stock | 1 is Req'd | ||
| 69 | S06314 | Washer, Impeller | $70.55 | 1 in Stock | 1 is Req'd | ||
| 71 | H00950 | Bracket | $2923.15 | 0 in Stock | 1 is Req'd | ||
| 73 | S05126 | Gasket, Volute | $36.55 | 2 in Stock | 1 is Req'd | ||
| 800A | S26825 | Capscrew, 3/8 - 16 x 7/8 (8 Req.) | $10.02 | 1 in Stock | 8 are Req'd | ||
| 800B | S26826 | Capscrew, 3/8 - 16 x 1 (4 Req.) | $9.93 | 1 in Stock | 4 are Req'd | ||
| 801 | S04439 | Stud, 3/8- 16x3 (2 Req.) | $62.90 | 1 in Stock | 2 are Req'd | ||
| 802 | S23343 | Nut, Hex 3/8- 16 (2 Req.) | $13.99 | 1 in Stock | 2 are Req'd | ||
| 805 | S23036 | Washer, Lock | $10.02 | 1 in Stock | 1 is Req'd | ||
