Berkeley Pump model B74418 Parts |
|

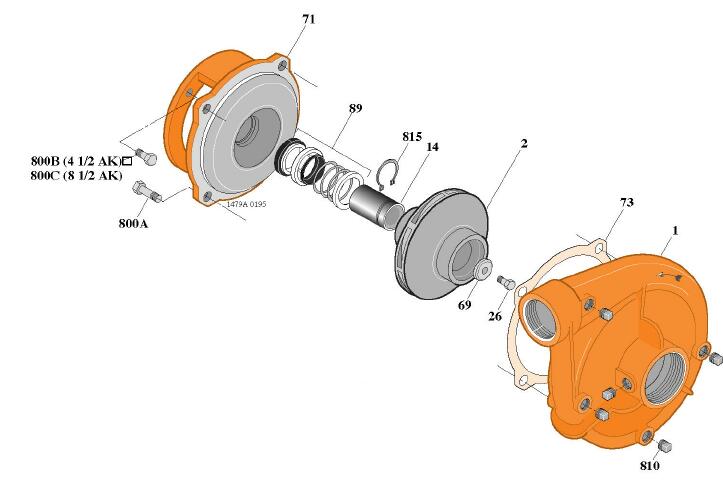

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Berkeley Pump model # B74418 | |||||||
| Key | SKU | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | L01018 | Case, Volute | $1779.05 | 0 in Stock | 1 | ||
| 2 | L08176 | Impeller, 6.56 Diameter, for 10 HP / 3 phase pumps. | $1683.85 | 0 in Stock | 1 | ||
| 14 | S19310L | Sleeve, Shaft | $136.00 | 1 in Stock | 1 | ||
| 32 | S34383 | Key, 3/16x1-1/4 (See Note) | $21.22 | 1 in Stock | 1 | ||
| 69 | S16239 | Washer, Impeller | $21.22 | 1 in Stock | 1 | ||
| 71 | L05328 | Bracket | $581.40 | 1 in Stock | 1 | ||
| 73 | S04757 | Gasket, Volute | $32.30 | 2 in Stock | 1 | ||
| 89 | S32014 | Seal, Mechanical Shaft | $277.95 | 2 in Stock | 1 | ||
| 800A | S26912 | Capscrew, 1/2 - 13 x 1 (4 Req.) | $10.02 | 1 in Stock | 4 | ||
| 800B | S26826 | Capscrew, 3/8 - 16 x 1 (4 Req.) | $9.93 | 1 in Stock | 4 | ||
| 800C | S26912 | Capscrew, 1/2 - 13 x 1 (4 Req.) | $10.02 | 1 in Stock | 4 | ||
| 815 | S11207 | Ring, Retaining | $41.65 | 10 in Stock | 1 | ||
| S23714 | Plug, Pipe 1/8 NPT (In Bracket) | $13.86 | 1 in Stock | 1 | |||
