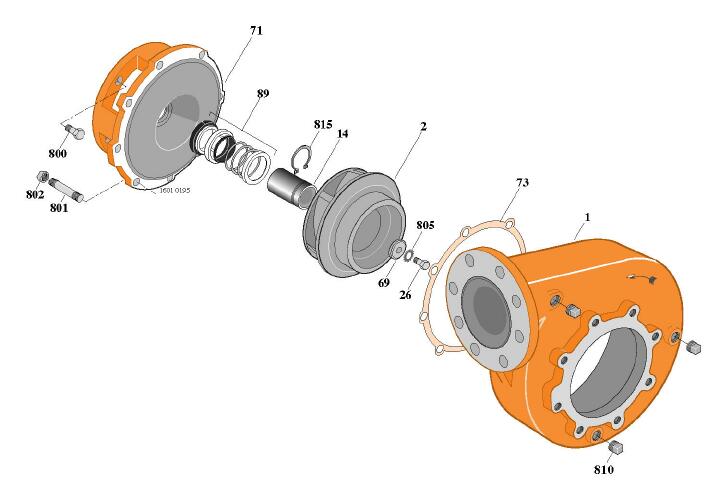

Berkeley Pump model B69514 Parts

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	SKU	Description	Price	Stock	Required
Parts List for Berkeley Pump model # B69514
1	H05065	Case, Volute	$4652.90	0 in Stock	1

14	S19310L	Sleeve, Shaft	$136.00	1 in Stock	1

26	S23574	Screw, Impeller 3/8 - 16 x 2	$17.31	1 in Stock	1

32	S34383	Key, 3/16x1-1/4 (See Note)	$21.22	1 in Stock	1

69	S06314	Washer, Impeller	$70.55	1 in Stock	1

71	L05331	Bracket	$2715.75	0 in Stock	1

73	S05126	Gasket, Volute	$36.55	2 in Stock	1

89	S32014	Seal, Mechanical Shaft	$277.95	2 in Stock	1

800	S26912	Capscrew, 1 12 - 1 3 x 1' (4 Req. )	$10.02	1 in Stock	4

801	S09942	Stud, 3/8- 16x1-3/8 (8 Req.)	$21.22	1 in Stock	8

802	S23103	Nut, 3/8 -16 (8 Req.)	$10.02	1 in Stock	8

805	S23036	Washer, Lock	$10.02	1 in Stock	1

810	S23717	Plug, Pipe l/2NPT(3Req.)	$2.77	1 in Stock	3

815	S11207	Ring, Retaining	$41.65	10 in Stock	1
