Berkeley Pump model B66812 Parts

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	SKU	Description	Price	Stock	Required

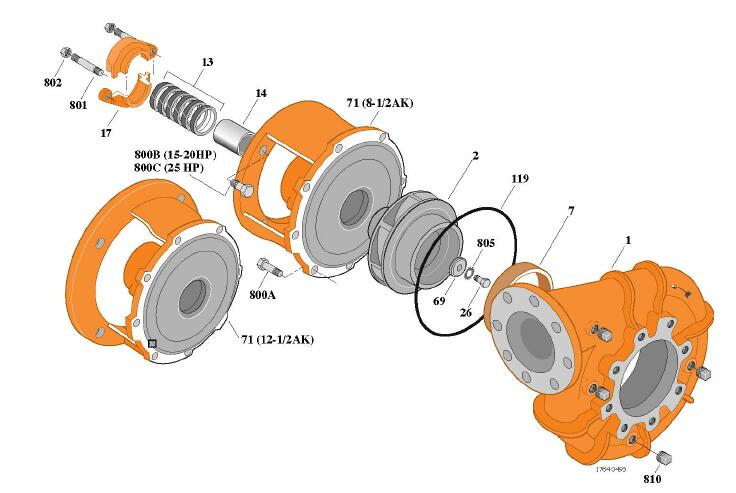

Parts List for Berkeley Pump model # B66812
1	H02692	Case, Volute	$6335.05	0 in Stock	1

2	L06615	Impeller, 9.81 Diameter, for 20 HP / 3 phase pumps.	$3382.15	0 in Stock	1

7	S15630	Ring, Wearing	$430.95	10 in Stock	1

13	S13470	Rings, Packing (Set of 6)	$305.15	10 in Stock	1

26	S23619	Screw, Impeller 1/2 - 13 x 1	$17.48	1 in Stock	1

32	S23677	Key, 1/4x2-1/4 (See Note)	$26.35	1 in Stock	1

69	S06319	Washer, Impeller	$125.80	1 in Stock	1

71	L03637	Bracket	$3465.45	0 in Stock	1

119	S13760	O-Ring	$48.45	10 in Stock	1

800A	S26914	Capscrew, 1/2 - 13 x 1-1/4 (8 Req.)	$10.02	1 in Stock	8

800B	S26916	Capscrew, 1/2- 13 x 1-1/2 (4 Req.)	$13.86	1 in Stock	4

801	S04438	Stud, 3/8- 16x2-1/2 (2 Req.)	$32.30	1 in Stock	2

802	S23343	Nut, Hex 3/8- 16 (2 Req.)	$13.99	1 in Stock	2

805	S23038	Washer, Lock	$7.18	1 in Stock	1

810	S23717	Plug, Pipe l/2NPT(4Req.)	$2.77	1 in Stock	4
