Berkeley Pump model B66539S Parts

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.
Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart Shopping Cart Icon Arrow Proceed to Checkout Secure Lock Arrow

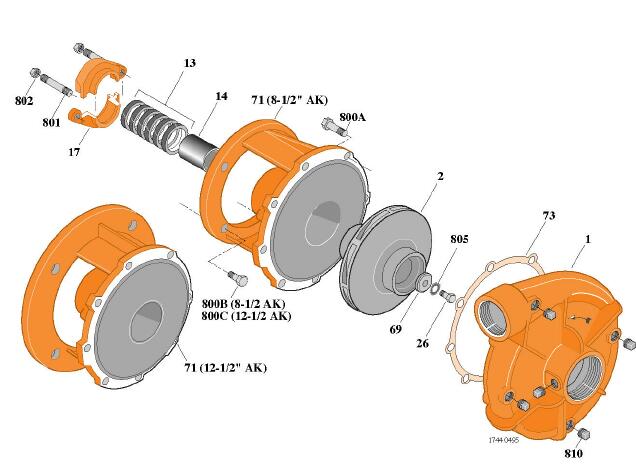

Parts List for Berkeley Pump model # B66539S
Key SKU Description Price Stock Required Quantity Action
1 L01027 Case, Volute $2137.75 0 in Stock 1
2 H05471 Impeller, 8.44 Diameter, for 25 HP / 3 phase pumps. $2120.75 0 in Stock 1
13 S13470 Rings, Packing (Set of 6) $305.15 10 in Stock 1
26 S23619 Screw, Impeller 1/2 - 13 x 1 $17.48 1 in Stock 1
32 S23677 Key, 1/4x2-1/4 (See Note) $26.35 1 in Stock 1
69 S06319 Washer, Impeller $125.80 1 in Stock 1
73 S05126 Gasket, Volute $36.55 2 in Stock 1
800A S26825 Capscrew, 3/8 - 16 x 7/8 (8 Req.) $10.02 1 in Stock 8
800B S26916 Capscrew, 1/2- 13 x 1-1/2 (4 Req.) $13.86 1 in Stock 4
800C S26999 Capscrew, 5/8- 11 x 1-1/2 (4 Req.) $13.99 1 in Stock 4
801 S08303 Stud, 3/8- 16x4 (2 Req.) $51.00 1 in Stock 2
802 S23343 Nut, Hex 3/8- 16 (2 Req.) $13.99 1 in Stock 2
805 S23038 Washer, Lock $7.18 1 in Stock 1
