Berkeley Pump model B51716 Parts

Parts Table is below the image.
Scroll down for Item Listings and Prices.

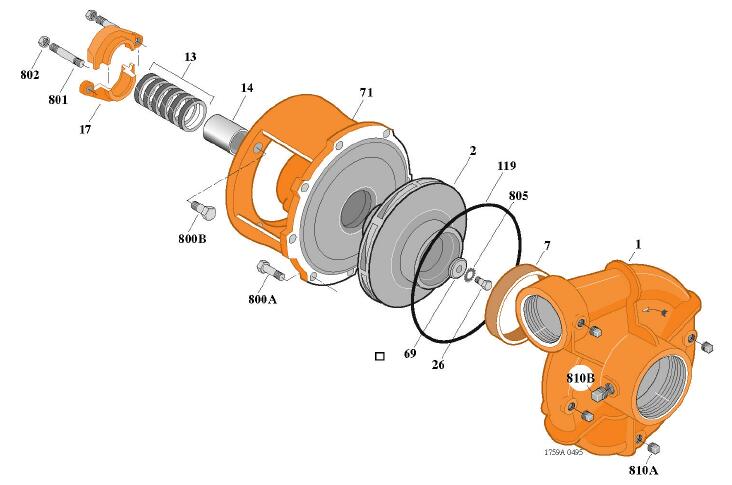

Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	SKU	Description	Price	Stock	Required
Parts List for Berkeley Pump model # B51716
1	H02087	Case, Volute	$5175.65	0 in Stock	1

2	M04820	Impeller, 10.44 Diameter, for 15 HP / 3 phase pumps.	$2345.15	0 in Stock	1

7	S13045	Ring, Wearing	$736.10	10 in Stock	1

13	S13470	Rings, Packing (Set of 6)	$305.15	10 in Stock	1

26	S23625	Screw, Impeller 1/2 - 13 x 1-3/4	$21.22	1 in Stock	1

32	S23677	Key, 1/4x2-1/4 (See Note)	$26.35	1 in Stock	1

69	S06319	Washer, Impeller	$125.80	1 in Stock	1

71	L03637	Bracket	$3465.45	0 in Stock	1

119	S13760	O-Ring	$48.45	10 in Stock	1

800A	S26914	Capscrew, 1/2 - 13 x 1-1/4 (8 Req.)	$10.02	1 in Stock	8

S0OB	S26916	Capscrew, 1/2 - 13 x 1-1/2 (4 Req.)	$13.86	1 in Stock	4

801	S04438	Stud, 3/8- 16x2-1/2 (2 Req.)	$32.30	1 in Stock	2

802	S23343	Nut, Hex 3/8- 16 (2 Req.)	$13.99	1 in Stock	2

805	S23038	Washer, Lock	$7.18	1 in Stock	1

810B	S23717	Plug, Pipe 1/2 NPT	$2.77	1 in Stock	1
