Berkeley Pump model B51635 Parts

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.
Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart Shopping Cart Icon Arrow Proceed to Checkout Secure Lock Arrow

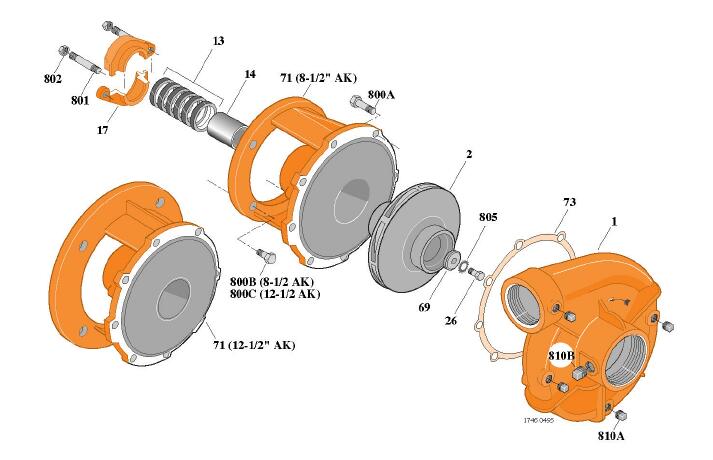

Parts List for Berkeley Pump model # B51635
Key SKU Description Price Stock Required Quantity Action
1 H00689 Case, Volute $1580.15 0 in Stock 1
2 M07706 Impeller, 7.25 Diameter, for 25 HP / 3 phase pumps. $1860.65 0 in Stock 1
13 S13470 Rings, Packing (Set of 6) $305.15 10 in Stock 1
26 S23623 Screw, Impeller 1/2 - 13 x 1-1/2 $15.65 1 in Stock 1
32 S23677 Key, 1/4x2-1/4 (See Note) $26.35 1 in Stock 1
69 S06319 Washer, Impeller $125.80 1 in Stock 1
71 L03827 Bracket $3393.20 0 in Stock 1
73 S05126 Gasket, Volute $36.55 2 in Stock 1
800A S26827 Capscrew, 3/8 - 16 x 1-1/8 (8 Req.) $10.02 1 in Stock 8
800B S26916 Capscrew, 1/2- 13 x 1-1/2 (4 Req.) $13.86 1 in Stock 4
800C S26999 Capscrew, 5/8- 11 x 1-1/2 (4 Req.) $13.99 1 in Stock 4
801 S08303 Stud, 3/8- 16x4 (2 Req.) $51.00 1 in Stock 2
802 S23343 Nut, Hex 3/8- 16 (2 Req.) $13.99 1 in Stock 2
805 S23038 Washer, Lock $7.18 1 in Stock 1
810B S23717 Plug, Pipe 1/2 NPT $2.77 1 in Stock 1
