AMT Pump # 6210-98 Parts Order page( Click Here for the AMT Pump # 6210-98 Product Page ) |
|

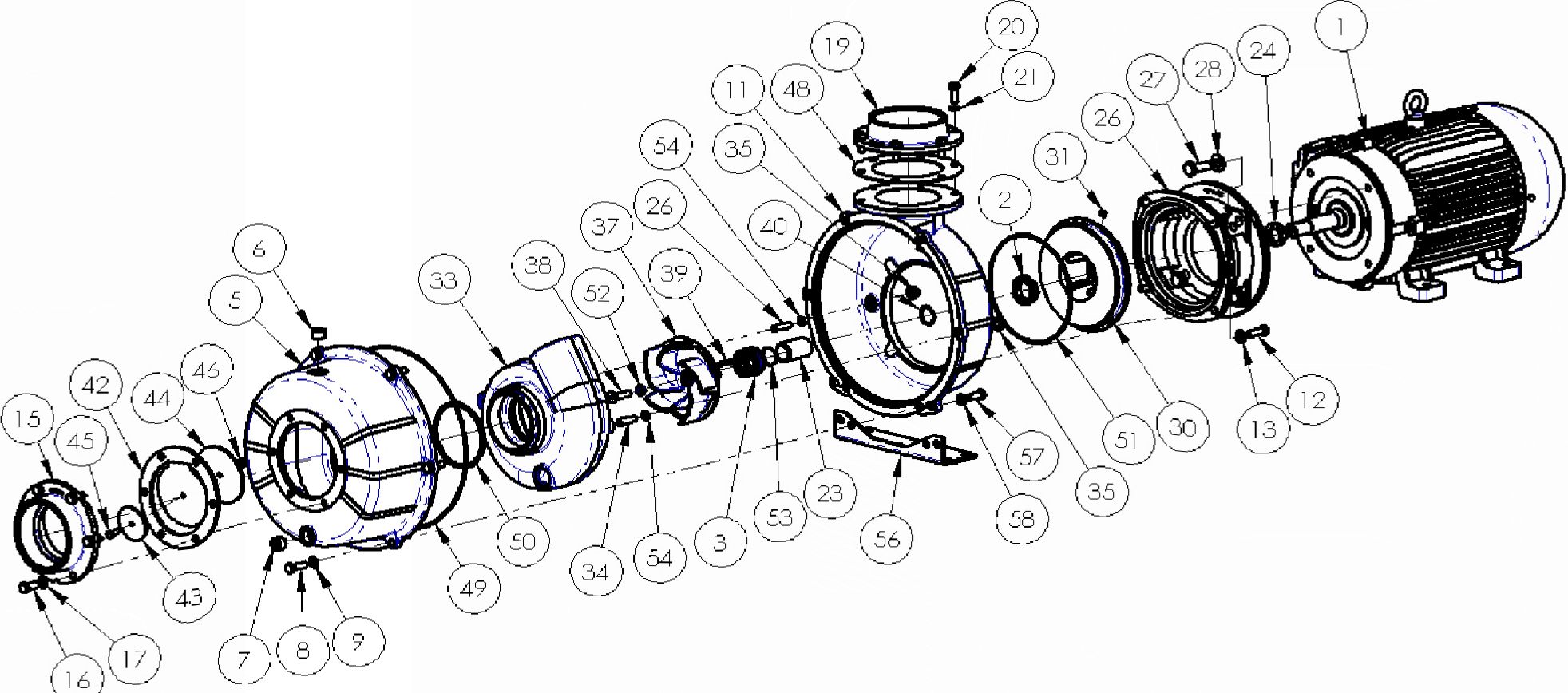

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 6210-98 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1627-354-00 | Motor, 10 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 215JM Frame, replacement electric motor only (pump is not included) | $1752.00 | 1 in Stock | 1 | ||
| 2+3 | # 1646-324-00 | Mechanical Seal, Viton/Carbon/Carbide, Type 31, size 1-1/2 Inch | $235.20 | 1 in Stock | 1 | ||
| 4 | # 6200-001-98 | Casing Kit, includes Casing, Plugs, Hex Head Screws, and Lock Washers. | $1170.00 | 2 in Stock | 1 | ||
| 10 | # 6200-040-98 | Bracket Kit, includes Bracket, Fasteners, and Washers. | $1131.60 | 2 in Stock | 1 | ||
| 14 | # 6200-052-98 | Suction Flange Kit, includes Suction Flange, Hex Head Screws, and Lock Washers. | $282.00 | 2 in Stock | 1 | ||
| 18 | # 6200-082-98 | Discharge Manifold Kit, includes Discharge Manifold, Hex Head Screws, and Lock Washers. | $277.20 | 2 in Stock | 1 | ||
| 22 | # 6200-140-98 | Shaft Sleeve/Collar Kit, includes Shaft Sleeve, and Shaft Collar. | $42.00 | 3 in Stock | 1 | ||
| 25 | # 6210-030-95 | Adapter Kit, includes Adapter, Hex Screws, and Washers. | $261.60 | 2 in Stock | 1 | ||
| 29 | # 6200-020-98 | Seal Plate Kit, includes Seal Plate, and NPT Plug. | $298.80 | 5 in Stock | 1 | ||
| 32 | # 6200-152-98 | Volute Kit, includes Volute, Studs, and Hex Nuts. | $940.80 | 2 in Stock | 1 | ||
| 36 | # 6210-010-98 | Impeller Kit, includes Impeller, Impeller Screw, Drive Key, and Impeller Shim. | $226.80 | 2 in Stock | 1 | ||
| 41 | # 6200-070-90 | Check Valve Assembly, includes Check Valve, Weights, Hex Head Bolt, and Hex Flange Nut. | $166.80 | 2 in Stock | 1 | ||
| 47 | # 6200-300-90 | Gasket Kit - Viton, includes all Gaskets and O-Rings. | $111.60 | 3 in Stock | 1 | ||
| 55 | # 6200-100-98 | Mounting Foot Kit, includes Mounting Foot, Hex Head Screw, and Washer. | $54.00 | 2 in Stock | 1 | ||
