AMT Pump model 5736-95 Parts( Click Here for the AMT Pump 5736-95 Product Page ) |
|

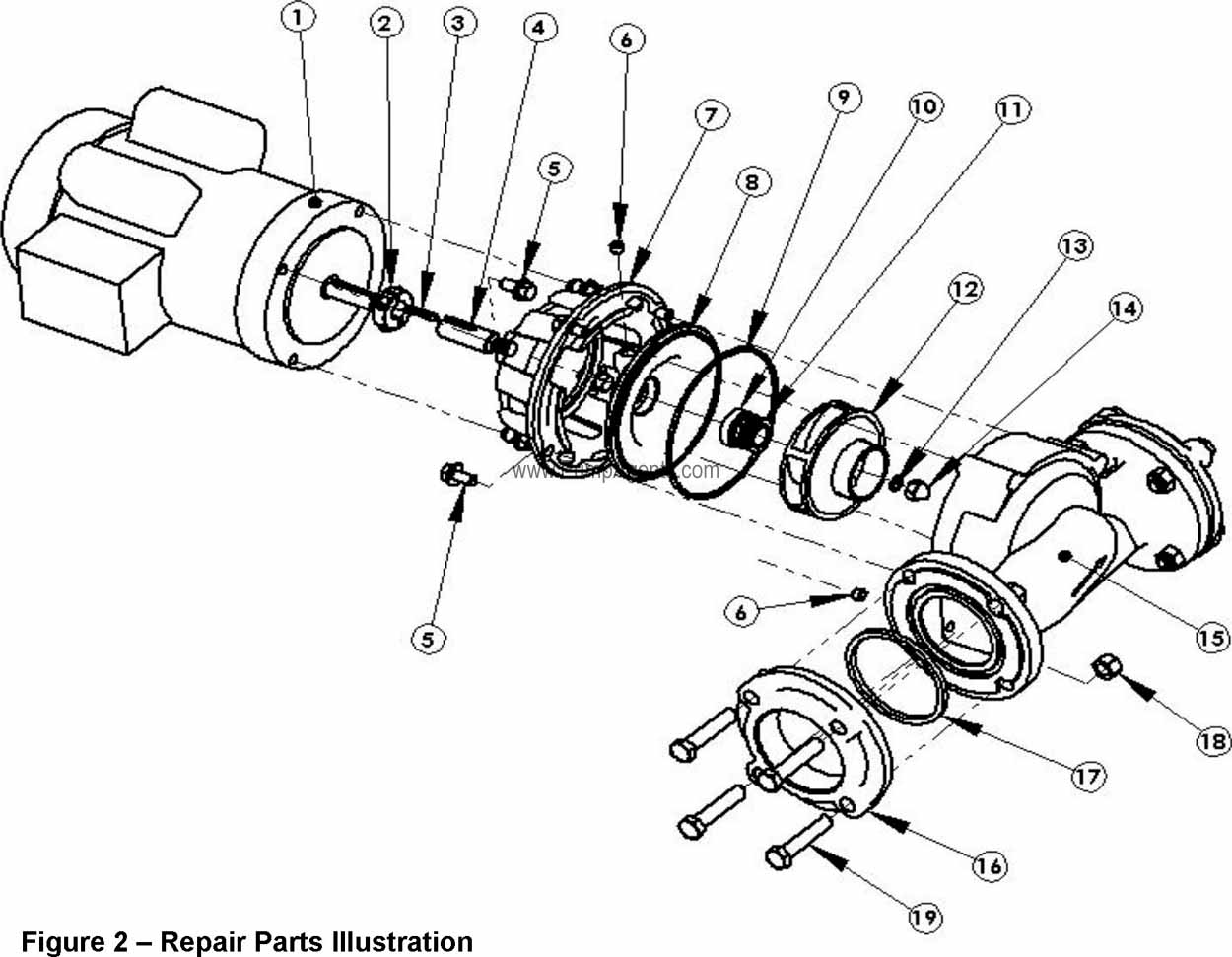

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 5736-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1626-021-00 | Motor | $484.00 | 2 in Stock | 1 | ||
| 2 | # 2105-012-00 | Shaft Clamp | $77.00 | 5 in Stock | 1 | ||
| 3 | # 1471-030-00 | Drive Key, 3/16 x 5/32 x1.25 | $6.60 | 4 in Stock | 1 | ||
| 4 | # 5730-140-00 | Stub Shaft | $112.20 | 2 in Stock | 1 | ||
| 7 | # 5730-030-95 | Adapter Kit. Includes : Flange Screw (Ref. 5) | $201.96 | 2 in Stock | 1 | ||
| 8 | # 5730-020-95 | Seal Plate Kit Cast Iron -95. Includes : 1/8 NPT Plug (Ref. 6) | $185.90 | 5 in Stock | 1 | ||
| 10,11 | # 1643-411-00 | Shaft Seal - EPDM | $37.40 | 5 in Stock | 1 | ||
| 12 | # 5735-010-97 | Impeller Kit. Includes : Impeller Nut (Ref. 14) | $448.80 | 2 in Stock | 1 | ||
| 13A | # 5730-300-91 | Seal & Gasket Kit - EPDM (standard). Includes : O-Ring #256, EPDM (Ref. 9), O-Ring #013 EPDM (Ref. 13), Flange Gasket Kit EPDM (Ref. 17) | $70.40 | 20 in Stock | 1 | ||
| 13A | # 5730-300-90 | Seal & Gasket Kit - Buna (optional) | $55.00 | 20 in Stock | 1 | ||
| 14 | # 1784-001-00 | Impeller Nut | $12.10 | 2 in Stock | 1 | ||
| 15 | # 5730-001-95 | Casing Kit Cast Iron -95. Includes : Flange Screw (Ref. 5), 1/8 NPT Plug (Ref. 6), Casing Kit Cast Iron -95 (Ref. 15) | $1037.52 | 2 in Stock | 1 | ||
| 16 | # 5730-080-95 | Flange Kit Cast Iron -95. Includes : Flange Kit Cast Iron -95 (Ref. 16), Hex Nut (Ref. 18), Hex Bolt , Seal assembly available as set only (Ref. 19) | $224.40 | 2 in Stock | 2 | ||
| 17 | # 5730-303-90 | Flange Gasket Kit EPDM | $27.50 | 20 in Stock | 1 | ||
