AMT Pump model 5730-97 Parts

PARTS LIST for AMT Pump model # 5730-97 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the AMT Pump 5730-97 Product Page )

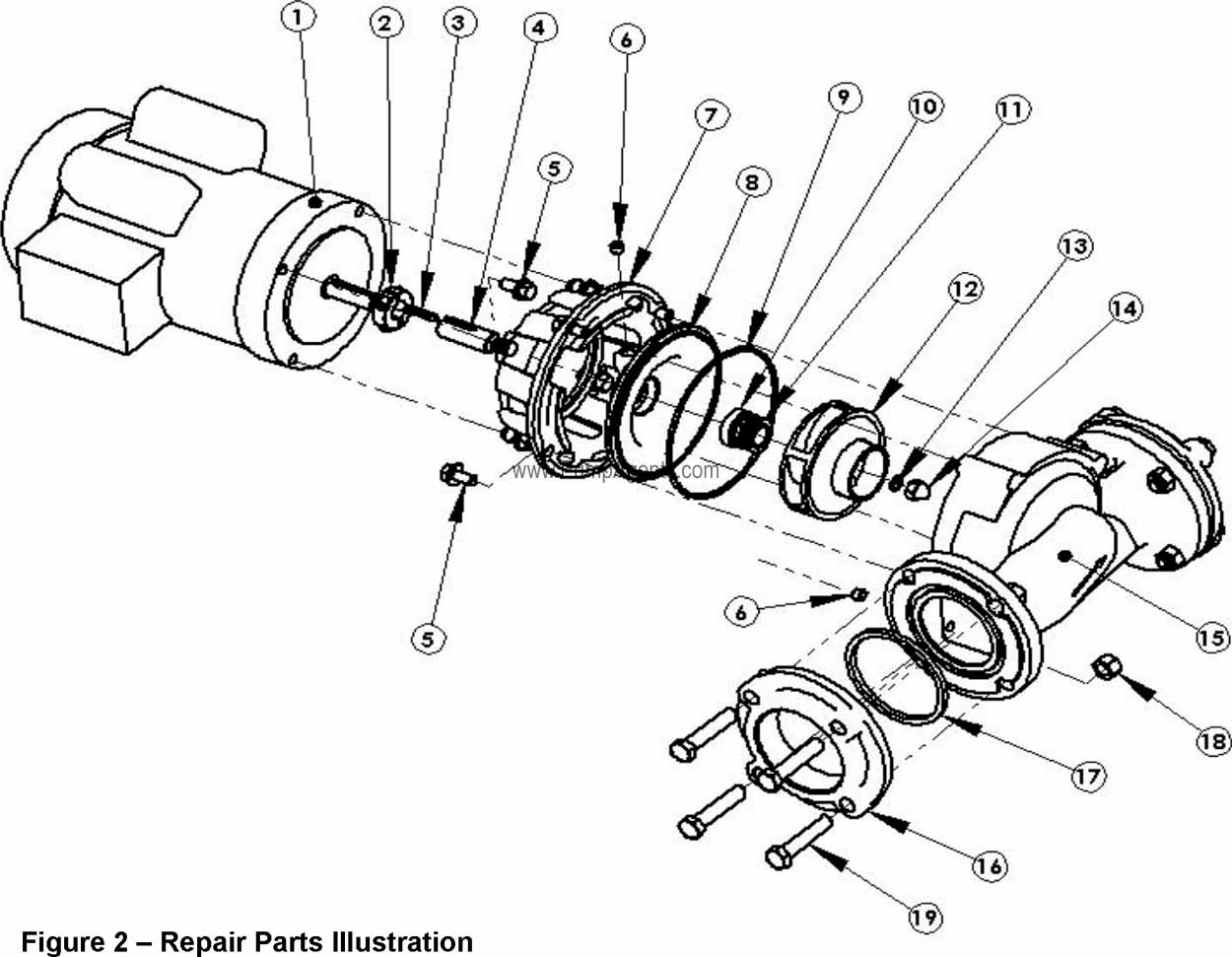

Blowup of 5730-97


Item 2
(on image above)

Part # 2105-012-00

Shaft Clamp

$ 94.50 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)


Item 3
(on image above)

Part # 1471-030-00

Drive Key, 3/16 x 5/32 x1.25

$ 9.72 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 4
(on image above)

Part # 5730-140-00

Stub Shaft

$ 165.24 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 7
(on image above)

Part # 5730-030-95

Adapter Kit. Includes : Flange Screw (Ref. 5)

$ 247.86 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 8
(on image above)

Part # 5730-021-97

Cast Bronze -97. Includes : 1/8 NPT Plug (Ref. 6)

$ 545.94 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 1011
(on image above)

Part # 1643-411-00

Seal

Shaft Seal - EPDM

$ 45.36 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 12
(on image above)

Part # 5735-010-97

Impeller

Impeller Kit. Includes : Impeller Nut (Ref. 14)

$ 660.96 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 13A
(on image above)

Part # 5730-300-91

Seal Kit

Seal & Gasket Kit - EPDM (standard). Includes : O-Ring #256, EPDM (Ref. 9), O-Ring #013 EPDM (Ref. 13), Flange Gasket Kit EPDM (Ref. 17)

$ 103.68 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 13A
(on image above)

Part # 5730-300-90

Seal & Gasket Kit - Buna (optional)

$ 81.00 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 14
(on image above)

Part # 1784-001-00

Impeller Nut

$ 14.85 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 15
(on image above)

Part # 5730-002-97

Casing

Cast Bronze -97. Includes : Flange Screw (Ref. 5), 1/8 NPT Plug (Ref. 6), Casing Kit Cast Iron -95 (Ref. 15)

$ 2272.86 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 16
(on image above)

Part # 5730-081-97

Cast Bronze -97. Includes : Flange Kit Cast Iron -95 (Ref. 16), Hex Nut (Ref. 18), Hex Bolt , Seal assembly available as set only (Ref. 19)

$ 729.00 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)
