AMT Pump model 5690-97 Parts

PARTS LIST for AMT Pump model # 5690-97 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the AMT Pump 5690-97 Product Page )

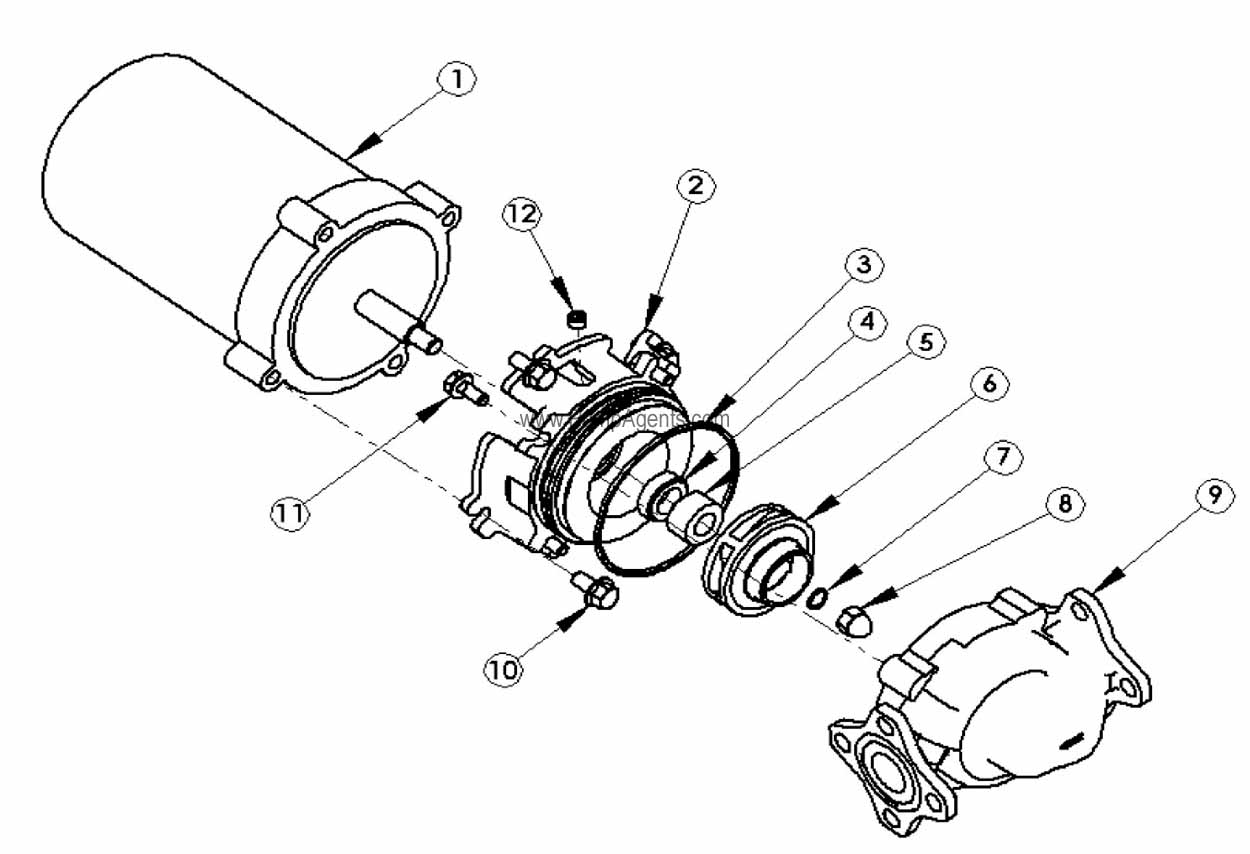

Blowup of 5690-97


Item 1
(on image above)

Part # 1626-096-00

Motor

Motor, 1/4 Horsepower, 1725 RPM, 115 Volts, 1 Phase, ODP Open Drip Proof, 60 Hz, Nema 56J Frame, replacement electric motor only (pump is not included)

$ 396.90 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 2
(on image above)

Part # 5690-032-00

Adapter

$ 306.18 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 8
(on image above)

Part # 1784-001-00

7/16-20 Acorn Nut

$ 14.85 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 13
(on image above)

Part # 5690-301-KT

Seal Kit

Seal Kit - EPDM (standard). Includes : O-Ring EPDM (Ref. 3), O-Ring EPDM (Ref. 7), Flange Gasket (Ref. 14)

$ 89.10 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 13
(on image above)

Part # 5690-300-KT

Seal Kit - Buna (optional

$ 53.46 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)
