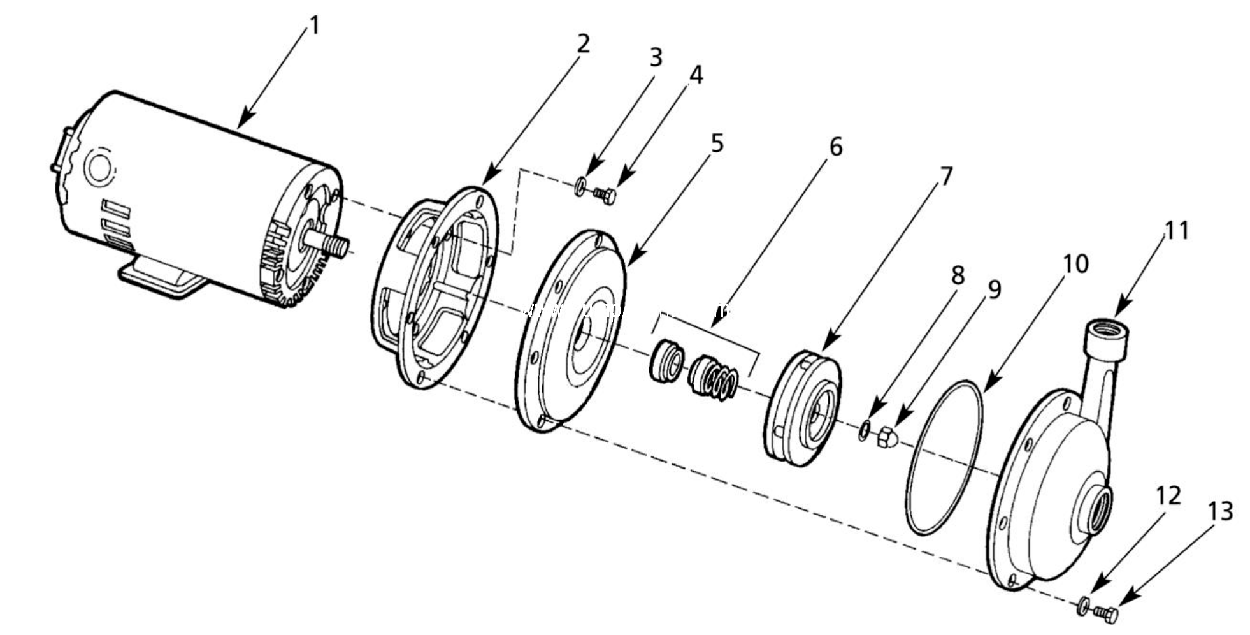

Parts for AMT Pump model # 553B-98

Item 1
(on image above)

Motor

Motor, 1-1/2 Horsepower, 3450 RPM, 230/460 Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)

$ 644.76 / each

Item 2
(on image above)

Part # 5530-021-09

Adapter

$ 124.74 / each

Item 5
(on image above)

Part # 5530-020-00

Casting Cover

$ 191.16 / each

Item 6
(on image above)

Part # 1640-161-97

Seal

Mechanical Seal, Viton, Type 21, size 5/8 Inch

$ 54.00 / each

Item 7
(on image above)

Part # 5538-011-98

Impeller

Impeller Kit. Includes : Impeller Kit (Ref. 7), Impeller Nut (Ref. 9)

$ 327.24 / each

Item 9
(on image above)

Part # 1784-001-00

Impeller Nut

$ 14.85 / each

Item 11
(on image above)

Part # 5530-001-98

Casing

Casing Kit. Includes : Casing Kit (Ref. 11), Washer (Ref. 12), Fastener (Ref. 13)

$ 487.62 / each

Item 14
(on image above)

Part # 5530-300-91

Seal Kit

Seal Kit - Viton (standard). Includes : Shaft Seal Assembly - Viton (Ref. 6), Impeller Seal - Viton (Ref. 8), Casing Seal - Viton (Ref. 10)

$ 97.20 / each

Item 14
(on image above)

Part # 5530-300-90

Seal Kit- Buna-N (optional)

$ 97.20 / each

AMT Pump model 553B-98 Parts
