AMT Pump # 5482-98 Parts Order page( Click Here for the AMT Pump # 5482-98 Product Page ) |
|

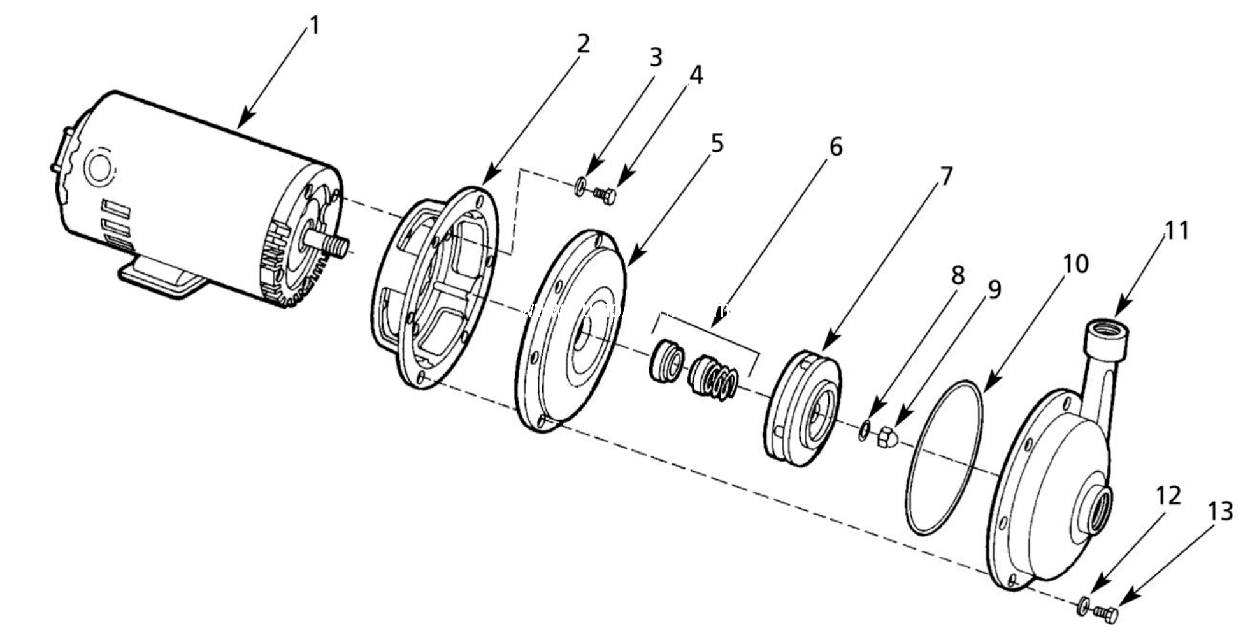

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 5482-98 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 5470-030-09 | Adapter | $67.10 | 2 in Stock | 1 | ||
| 5 | # 5470-020-00 | Casting Cover | $112.20 | 2 in Stock | 1 | ||
| 6 | # 1640-162-98 | Mechanical Seal, Viton, Type 21, size 3/4 Inch | $41.80 | 5 in Stock | 1 | ||
| 7 | # 5470-010-98 | Impeller Kit. Includes : Impeller Kit (Ref. 7), Impeller Nut (Ref. 9) | $144.10 | 2 in Stock | 1 | ||
| 9 | # 1784-001-00 | Impeller Nut | $12.10 | 2 in Stock | 1 | ||
| 11 | # 5480-001-98 | Casing Kit. Includes : Casing Kit (Ref. 11), Washer (Ref. 12), Fastener (Ref. 13) | $246.40 | 2 in Stock | 1 | ||
| 14 | # 5470-300-91 | Seal Kit - Viton (standard). Includes : Shaft Seal Assembly - Viton (Ref. 6), Impeller Seal - Viton (Ref. 8), Casing Seal - Viton (Ref. 10) | $55.00 | 5 in Stock | 1 | ||
| 14 | # 5470-300-90 | Seal Kit- Buna-N (optional) | $29.70 | 5 in Stock | 1 | ||
