AMT Pump model 4S13XHR Parts

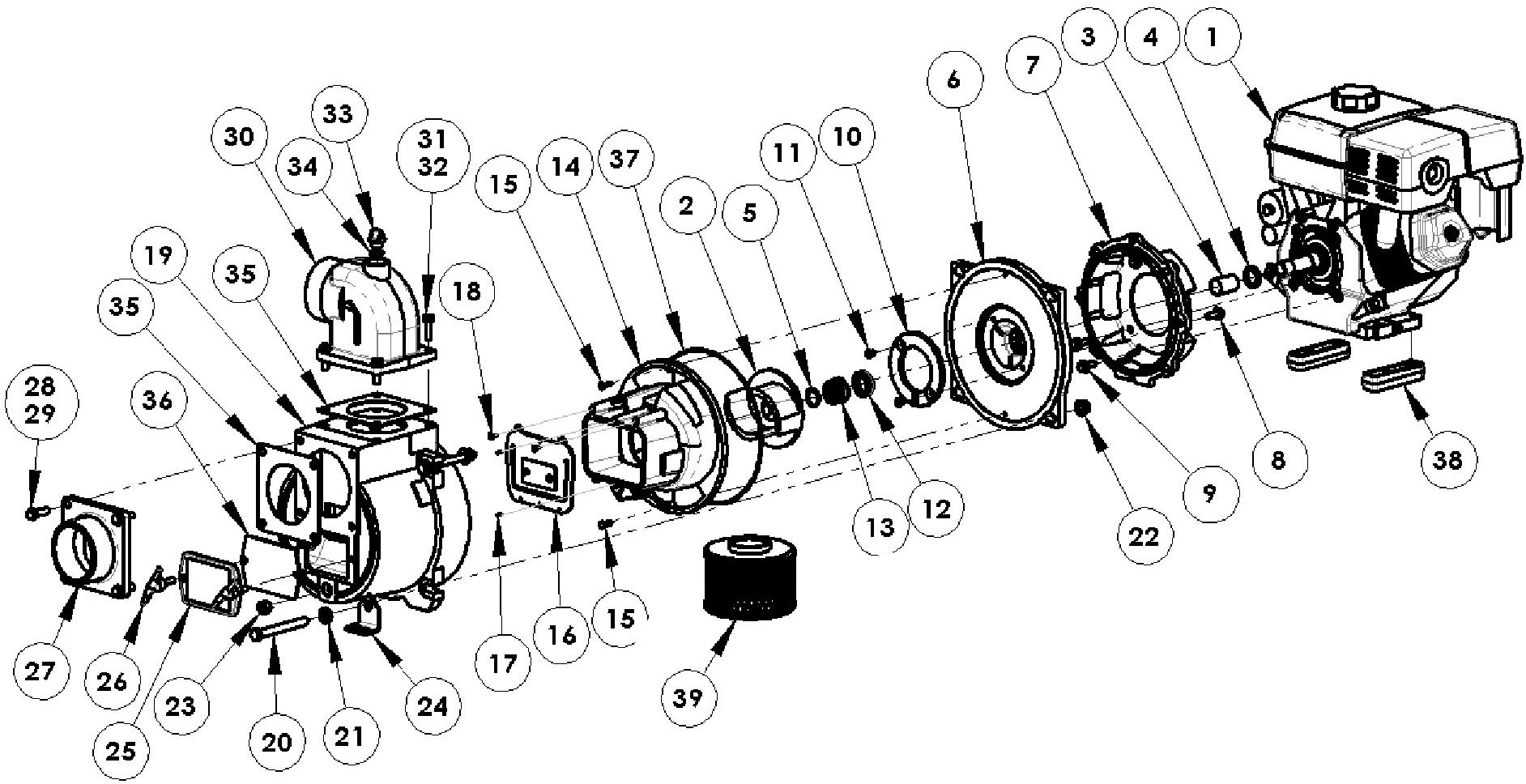

PARTS LIST for AMT Pump model # 4S13XHR Pump:
( Click Here for the AMT Pump 4S13XHR Product Page )
Item 1
(on image above)
Engine
$ 2643.84 / each
Item 89
(on image above)
Seal
Mechanical Seal, Viton/Carbon/Silicon Carbide, Type 21, size 1-1/8 Inch
$ 129.60 / each
Item 11
(on image above)
Impeller Shim Set
$ 17.82 / each
Item 12
(on image above)
Impeller
Impeller Kit. Includes : Impeller Shim Set (Ref. 11), Impeller Kit (Ref. 12)
$ 330.48 / each
Item 14
(on image above)
Hex Head Screw SS
$ 9.72 / each
Item 17
(on image above)
Flat Head Screw SS
$ 9.72 / each
Item 18
(on image above)
Casing
Casing
$ 1321.92 / each
Item 19
(on image above)
Discharge Manifold. Includes : Bolt/Screw (Ref. 21), Split Lock Washer (Ref. 22)
$ 396.90 / each
Item 20
(on image above)
1/2 NPT Plug with O-Ring - EPDM (standard)
$ 14.58 / each
Item 20
(on image above)
1/2 NPT Plug with O-Ring - Buna (optional)
$ 12.96 / each
Item 20
(on image above)
1/2 NPT Plug with O-Ring - Viton (optional)
$ 17.82 / each
Item 24
(on image above)
Suction Plate. Includes : Bolt/Screw (Ref. 21), Split Lock Washer (Ref. 22)
$ 289.98 / each
Item 25
(on image above)
Cleanout Cover Handle Kit. Includes : Shaft Flange (Ref. 2), Cleanout Cover Handle Kit (Ref. 25), 3/8 SAE Washer (Ref. 26)
$ 30.78 / each
Item 27
(on image above)
Cleanout Cover
$ 98.82 / each
Item 33
(on image above)
Battery Tray Kit
$ 63.18 / each
Item 34
(on image above)
Casing Support Bracket Kit
$ 72.90 / each
Item 36
(on image above)
NPT Suction Strainer
$ 46.98 / each
Not Shown
(Not Shown on image above)
Positive Battery Cable
$ 34.02 / each
Not Shown
(Not Shown on image above)
Negative Battery Cable
$ 25.92 / each
Not Shown
(Not Shown on image above)
Mounting Hardware Kit
$ 42.12 / each
Item KIT
(on image above)
Gasket / O-Ring / Flapper Kit - EPDM (standard). Includes : 276 O-Ring (Ref. 7), Flapper Valve Retainer Pin (Ref. 15), Flapper Valve Assembly - EPDM (Ref. 16), Flange Gasket (Ref. 23), 1/2 NPT Plug with O-Ring - EPDM (Ref. 20), Cleanout Cover Gasket (Ref. 28)
$ 215.46 / each
Item KIT
(on image above)
Gasket / O-Ring / Flapper Kit - Buna (optional). Includes : 276 O-Ring (Ref. 7), Flapper Valve Retainer Pin (Ref. 15), Flapper Valve Assembly - EPDM (Ref. 16), Flange Gasket (Ref. 23), 1/2 NPT Plug with O-Ring - EPDM (Ref. 20), Cleanout Cover Gasket (Ref. 28)
$ 183.06 / each
Item KIT
(on image above)
Gasket / O-Ring / Flapper Kit - Viton (optional). Includes : 276 O-Ring (Ref. 7), Flapper Valve Retainer Pin (Ref. 15), Flapper Valve Assembly - EPDM (Ref. 16), Flange Gasket (Ref. 23), 1/2 NPT Plug with O-Ring - EPDM (Ref. 20), Cleanout Cover Gasket (Ref. 28)
$ 364.50 / each
