AMT Pump model 4S13XAR Parts

PARTS LIST for AMT Pump model # 4S13XAR Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the AMT Pump 4S13XAR Product Page )

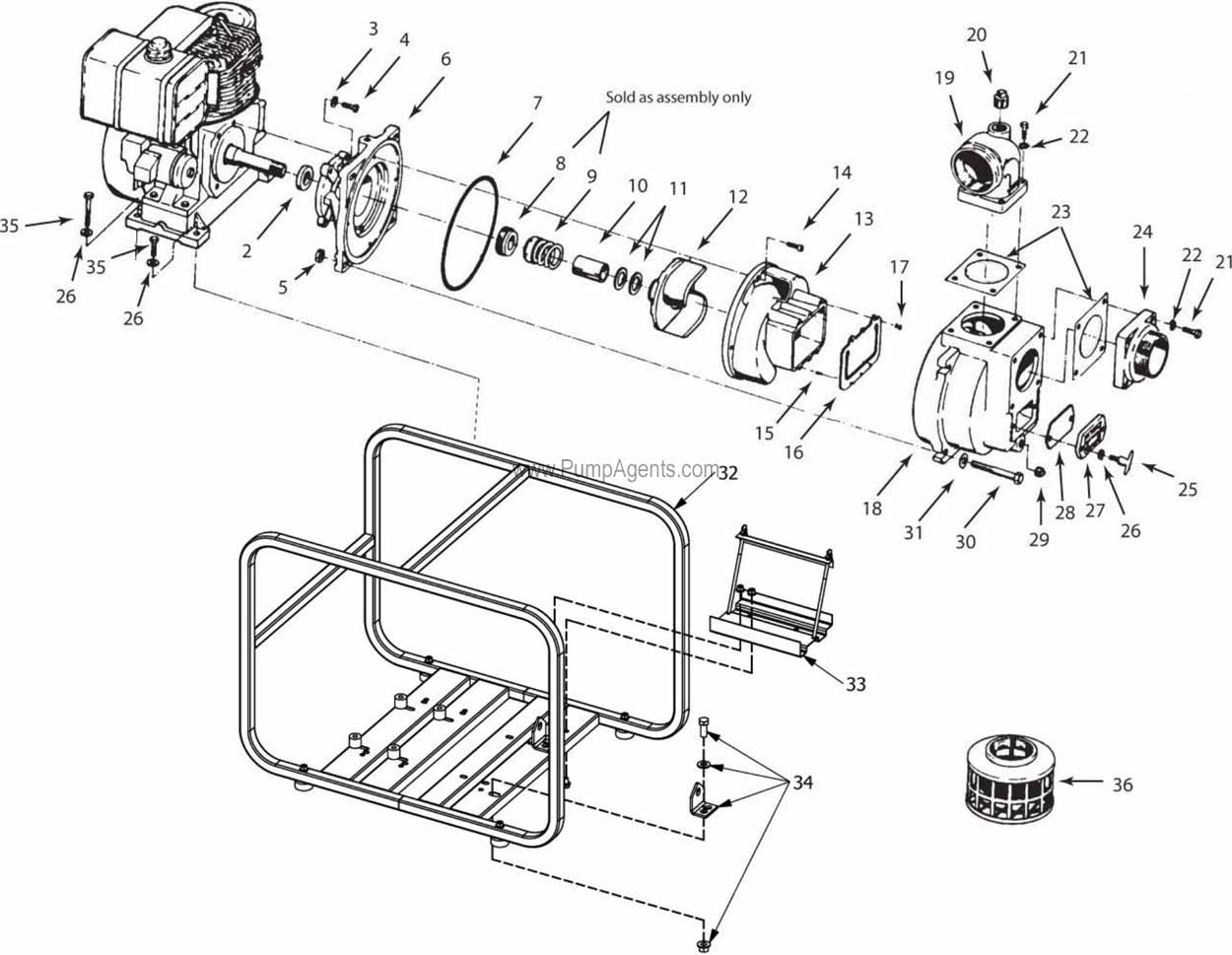

Blowup of 4S13XAR


Item 1
(on image above)

Part # 1639-005-00

Engine

$ 3520.26 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 89
(on image above)

Part # 1640-163-94

Seal

Mechanical Seal, Viton/Carbon/Silicon Carbide, Type 21, size 1-1/8 Inch

$ 129.60 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 11
(on image above)

Part # 1656-000-90

Impeller Shim Set

$ 17.82 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 12
(on image above)

Part # 3920-010-95

Impeller

Impeller Kit. Includes : Impeller Shim Set (Ref. 11), Impeller Kit (Ref. 12)

$ 330.48 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 14
(on image above)

Part # 1718-001-00

Hex Head Screw SS

$ 9.72 / each

Qty :

2 are required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 17
(on image above)

Part # 1704-000-00

Flat Head Screw SS

$ 9.72 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 18
(on image above)

Part # 2116-001-00

Casing

Casing

$ 1321.92 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 19
(on image above)

Part # 3993-080-95

Discharge Manifold. Includes : Bolt/Screw (Ref. 21), Split Lock Washer (Ref. 22)

$ 396.90 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 20
(on image above)

Part # 3SXE-170-90

1/2 NPT Plug with O-Ring - EPDM (standard)

$ 14.58 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 20
(on image above)

Part # 3SXB-170-90

1/2 NPT Plug with O-Ring - Buna (optional)

$ 12.96 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 20
(on image above)

Part # 3SXV-170-90

1/2 NPT Plug with O-Ring - Viton (optional)

$ 17.82 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 24
(on image above)

Part # 3993-050-95

Suction Plate. Includes : Bolt/Screw (Ref. 21), Split Lock Washer (Ref. 22)

$ 289.98 / each

Qty :

2 are required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 25
(on image above)

Part # 1601-000-90

Cleanout Cover Handle Kit. Includes : Shaft Flange (Ref. 2), Cleanout Cover Handle Kit (Ref. 25), 3/8 SAE Washer (Ref. 26)

$ 30.78 / each

Qty :

2 are required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 27
(on image above)

Part # 2115-002-01

Cleanout Cover

$ 98.82 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 33
(on image above)

Part # 1696-101-91

Battery Tray Kit

$ 63.18 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 34
(on image above)

Part # 3993-109-90

Casing Support Bracket Kit

$ 72.90 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item 36
(on image above)

Part # 1681-001-00

NPT Suction Strainer

$ 46.98 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Not Shown
(Not Shown on image above)

Part # 3102-105-90

Positive Battery Cable

$ 34.02 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Not Shown
(Not Shown on image above)

Part # 3102-104-90

Negative Battery Cable

$ 25.92 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Not Shown
(Not Shown on image above)

Part # 3993-107-90

Mounting Hardware Kit

$ 42.12 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item KIT
(on image above)

Part # 3993-300-91

Gasket / O-Ring / Flapper Kit - EPDM (standard). Includes : 276 O-Ring (Ref. 7), Flapper Valve Retainer Pin (Ref. 15), Flapper Valve Assembly - EPDM (Ref. 16), Flange Gasket (Ref. 23), 1/2 NPT Plug with O-Ring - EPDM (Ref. 20), Cleanout Cover Gasket (Ref. 28)

$ 215.46 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item KIT
(on image above)

Part # 3993-300-90

Gasket / O-Ring / Flapper Kit - Buna (optional). Includes : 276 O-Ring (Ref. 7), Flapper Valve Retainer Pin (Ref. 15), Flapper Valve Assembly - EPDM (Ref. 16), Flange Gasket (Ref. 23), 1/2 NPT Plug with O-Ring - EPDM (Ref. 20), Cleanout Cover Gasket (Ref. 28)

$ 183.06 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)


Item KIT
(on image above)

Part # 3993-300-92

Gasket / O-Ring / Flapper Kit - Viton (optional). Includes : 276 O-Ring (Ref. 7), Flapper Valve Retainer Pin (Ref. 15), Flapper Valve Assembly - EPDM (Ref. 16), Flange Gasket (Ref. 23), 1/2 NPT Plug with O-Ring - EPDM (Ref. 20), Cleanout Cover Gasket (Ref. 28)

$ 364.50 / each

Qty :

1 is required for rebuild

Can Ship : 2 Weeks (0 in stock)
