AMT Pump # 4S10XYR Parts Order page |
|

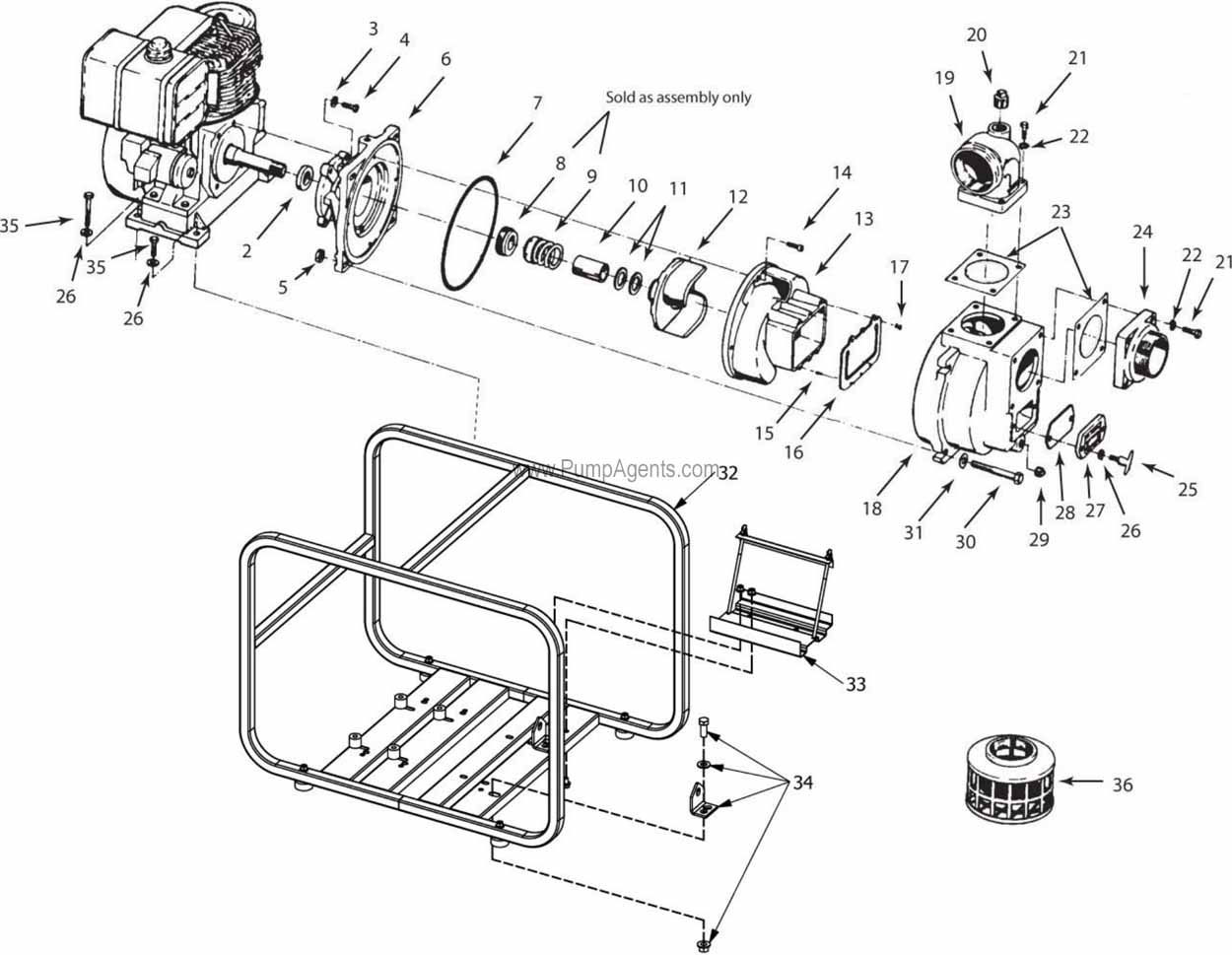

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 4S10XYR | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1639-039-00 | Engine | $6227.76 | 2 in Stock | 1 | ||
| 8+9 | # 1640-163-94 | Mechanical Seal, Viton/Carbon/Silicon Carbide, Type 21, size 1-1/8 Inch | $119.90 | 5 in Stock | 1 | ||
| 11 | # 1656-000-90 | Impeller Shim Set | $12.10 | 2 in Stock | 1 | ||
| 12 | # 3921-010-95 | Impeller Kit. Includes : Impeller Shim Set (Ref. 11), Impeller Kit (Ref. 12) | $224.40 | 2 in Stock | 1 | ||
| 14 | # 1718-001-00 | Hex Head Screw SS | $6.60 | 2 in Stock | 2 | ||
| 17 | # 1704-000-00 | Flat Head Screw SS | $6.60 | 2 in Stock | 1 | ||
| 18 | # 2116-001-00 | Casing | $1077.12 | 2 in Stock | 1 | ||
| 19 | # 3993-080-95 | Discharge Manifold. Includes : Bolt/Screw (Ref. 21), Split Lock Washer (Ref. 22) | $269.50 | 2 in Stock | 1 | ||
| 20 | # 3SXE-170-90 | 1/2 NPT Plug with O-Ring - EPDM (standard) | $9.90 | 2 in Stock | 1 | ||
| 20 | # 3SXB-170-90 | 1/2 NPT Plug with O-Ring - Buna (optional) | $8.80 | 20 in Stock | 1 | ||
| 20 | # 3SXV-170-90 | 1/2 NPT Plug with O-Ring - Viton (optional) | $12.10 | 2 in Stock | 1 | ||
| 24 | # 3993-050-95 | Suction Plate. Includes : Bolt/Screw (Ref. 21), Split Lock Washer (Ref. 22) | $196.90 | 2 in Stock | 2 | ||
| 25 | # 1601-000-90 | Cleanout Cover Handle Kit. Includes : Shaft Flange (Ref. 2), Cleanout Cover Handle Kit (Ref. 25), 3/8 SAE Washer (Ref. 26) | $20.90 | 2 in Stock | 2 | ||
| 27 | # 2115-002-01 | Cleanout Cover | $80.52 | 2 in Stock | 1 | ||
| 33 | # 1696-101-91 | Battery Tray Kit | $42.90 | 2 in Stock | 1 | ||
| 34 | # 3993-109-90 | Casing Support Bracket Kit | $49.50 | 2 in Stock | 1 | ||
| 36 | # 1681-001-00 | NPT Suction Strainer | $44.00 | 2 in Stock | 1 | ||
| + | # 3102-105-90 | Positive Battery Cable | $27.72 | 2 in Stock | 1 | ||
| + | # 3102-104-90 | Negative Battery Cable | $21.12 | 2 in Stock | 1 | ||
| KIT | # 3993-300-91 | Gasket / O-Ring / Flapper Kit - EPDM (standard). Includes : 276 O-Ring (Ref. 7), Flapper Valve Retainer Pin (Ref. 15), Flapper Valve Assembly - EPDM (Ref. 16), Flange Gasket (Ref. 23), 1/2 NPT Plug with O-Ring - EPDM (Ref. 20), Cleanout Cover Gasket (Ref. 28) | $146.30 | 20 in Stock | 1 | ||
| KIT | # 3993-300-90 | Gasket / O-Ring / Flapper Kit - Buna (optional). Includes : 276 O-Ring (Ref. 7), Flapper Valve Retainer Pin (Ref. 15), Flapper Valve Assembly - EPDM (Ref. 16), Flange Gasket (Ref. 23), 1/2 NPT Plug with O-Ring - EPDM (Ref. 20), Cleanout Cover Gasket (Ref. 28) | $124.30 | 20 in Stock | 1 | ||
| KIT | # 3993-300-92 | Gasket / O-Ring / Flapper Kit - Viton (optional). Includes : 276 O-Ring (Ref. 7), Flapper Valve Retainer Pin (Ref. 15), Flapper Valve Assembly - EPDM (Ref. 16), Flange Gasket (Ref. 23), 1/2 NPT Plug with O-Ring - EPDM (Ref. 20), Cleanout Cover Gasket (Ref. 28) | $247.50 | 20 in Stock | 1 | ||
