AMT Pump model 4906-95 Parts

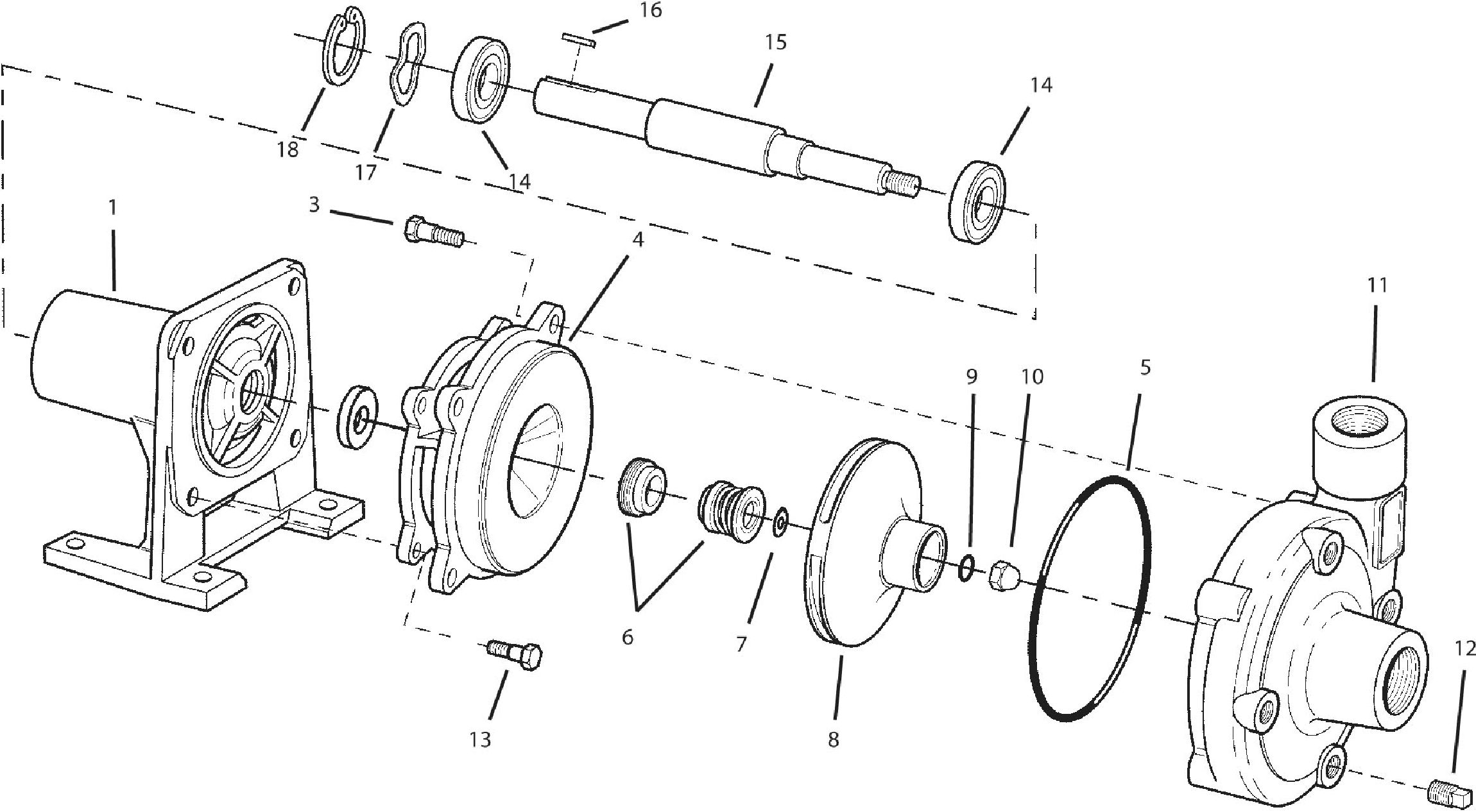

PARTS LIST for AMT Pump model # 4906-95 Pump:
( Click Here for the AMT Pump 4906-95 Product Page )
Item 4
(on image above)
Adapter Kit - Cast Iron. Includes : Adapter Kit - Cast Iron (Ref. 4), 3/8 x 3/4 Hex Head Cap Screw (Ref. 13)
$ 158.76 / each
Item 6
(on image above)
Seal
Mechanical Seal, Buna-N, Type 21, size 5/8 Inch
$ 24.30 / each
Item 7
(on image above)
Impeller Shim Kit
$ 8.10 / each
Item 8
(on image above)
Impeller
Impeller Kit. Includes : Impeller Shim Kit (Ref. 7), Impeller Kit (Ref. 8), 7/16-20 Acorn Nut (Ref. 10)
$ 330.48 / each
Item 10
(on image above)
7/16-20 Acorn Nut
$ 14.85 / each
Item 11
(on image above)
Casing
Casing Kit - Cast Iron. Includes : 3/8-16 x 1 Hex Head Cap Screw (Ref. 3), Casing Kit - Cast Iron (Ref. 11), 3/8 Pipe Plug (Ref. 12)
$ 231.66 / each
Item 14
(on image above)
Ball Bearing
$ 34.02 / each
Item 15
(on image above)
Shaft
$ 157.14 / each
Item 16
(on image above)
Shaft Key
$ 9.72 / each
Item 17
(on image above)
Wave Washer
$ 9.72 / each
Item 18
(on image above)
Snap Ring
$ 9.72 / each
Item 19
(on image above)
Bearing Shim Kit
$ 9.72 / each
Item 20
(on image above)
Thread Sealant
$ 21.06 / each
Item KIT
(on image above)
O-Ring Kit - Buna N
$ 25.92 / each
