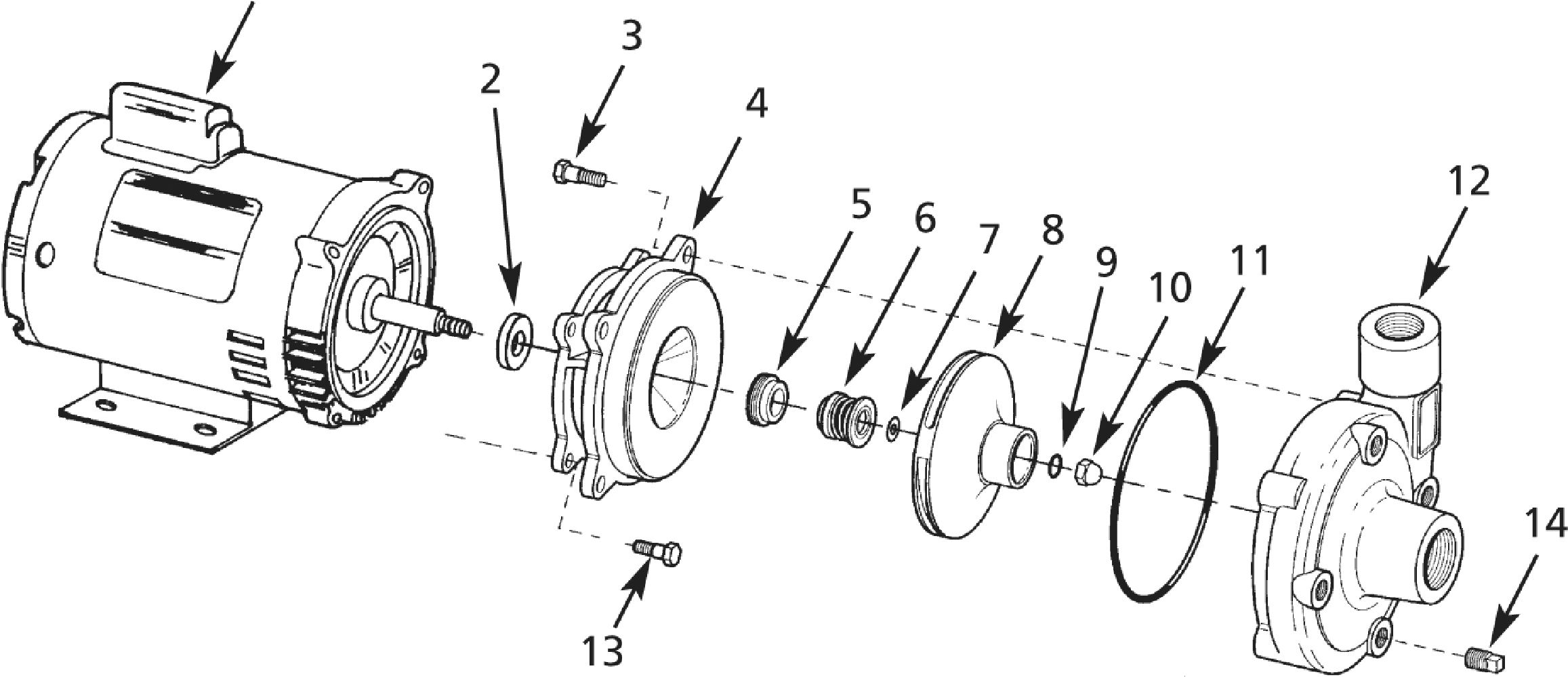

PARTS LIST for AMT Pump model # 489G-98 Pump:
( Click Here for the AMT Pump 489G-98 Product Page )
Item 1
(on image above)
Motor
Motor, 1 Horsepower, 3500 RPM, 12 Volt DC, TENV, 60 Hz, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 1265.22 / each
Item 2
(on image above)
Slinger washer
$ 9.72 / each
Item 4
(on image above)
Adapter Kit - Stainless Steel. Includes : Adapter Kit - Cast Iron (Ref. 4), Fastener (Ref. 13)
$ 388.80 / each
Item 56
(on image above)
Seal
Mechanical Seal, Viton, Type 21, size 5/8 Inch
$ 54.00 / each
Item 8
(on image above)
Impeller
Impeller Kit. Includes : Shim Kit (Ref. 7), Impeller Kit (Ref. 8), Impeller fastener (Ref. 10)
$ 251.10 / each
Item 12
(on image above)
Casing
Casing Kit - Stainless Steel. Includes : Fastener (Ref. 3), Casing Kit - Cast Iron (Ref. 12), 3/8 NPT pipe plug (Ref. 14)
$ 550.80 / each
Item KIT
(on image above)
O-Ring Kit - Viton. Includes : Impeller Seal (Ref. 9), Casing seal (Ref. 11)
$ 27.54 / each
