AMT Pump model 489D-97 Parts( Click Here for the AMT Pump 489D-97 Product Page ) |
|

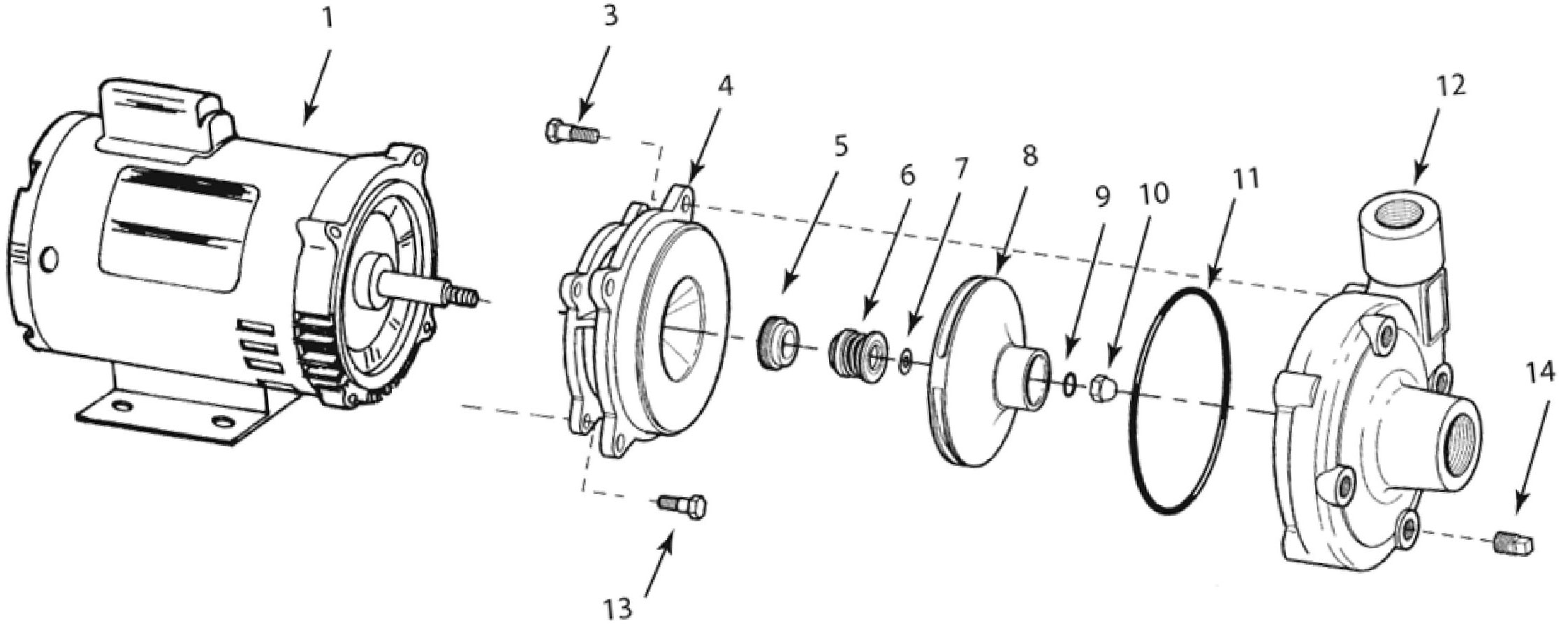

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 489D-97 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1626-308-00 | Motor, 3/4 Horsepower, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric motor only (pump is not included) | $553.30 | 1 in Stock | 1 | ||
| 4 | # 4890-030-97 | Adapter - Bronze | $390.50 | 2 in Stock | 1 | ||
| 5+6 | # 1640-161-97 | Mechanical Seal, Viton, Type 21, size 5/8 Inch | $44.00 | 4 in Stock | 1 | ||
| 7 | # 1806-044-90 | Impeller Shim Set | $6.60 | 4 in Stock | 1 | ||
| 8 | # 4894-010-98 | Impeller, includes Impeller, Impeller Shim, and Impeller Fastener. | $159.50 | 2 in Stock | 1 | ||
| 10 | # 1784-001-00 | Impeller Fastener | $12.10 | 2 in Stock | 1 | ||
| 12 | # 4890-001-97 | Casing - Bronze, includes Casing, and Fasteners. | $678.70 | 2 in Stock | 1 | ||
| KIT | # 4890-301-90 | O-Ring Kit - Viton, includes all O-Rings. | $18.70 | 20 in Stock | 1 | ||
